NICE RF

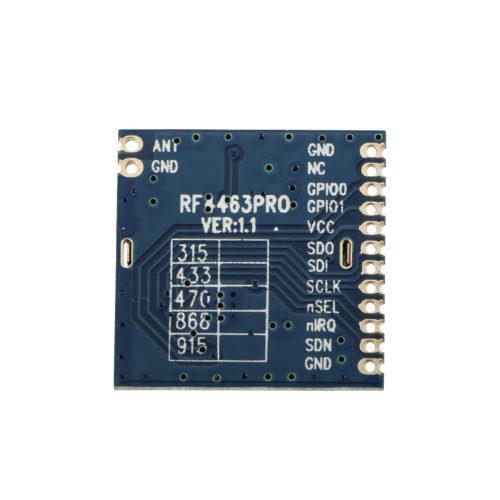

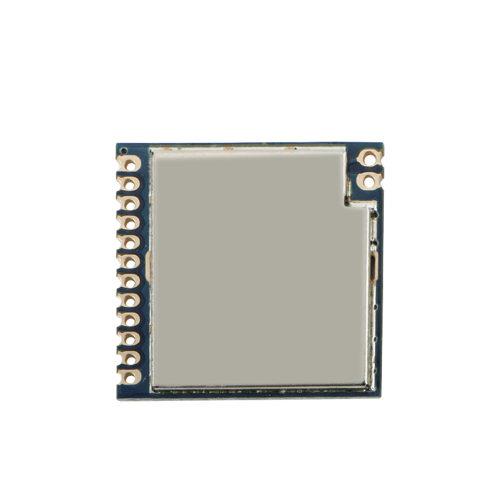

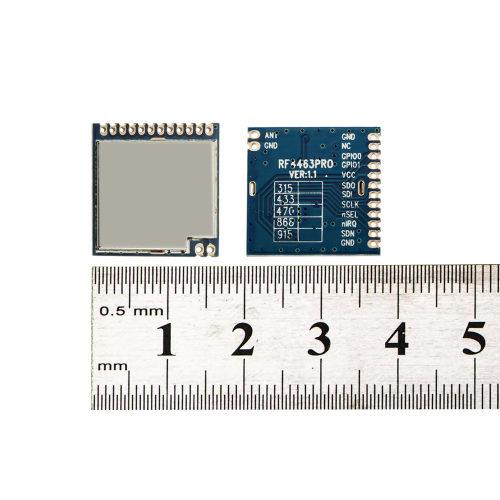

Wireless RF Receiver And Transmitter Module, 868MHz , 100mW ,SPI
Ürün Kodu
:
RF4463PRO-868
Yorumlar
Wireless RF Receiver And Transmitter Module, 868MHz , 100mW ,SPI
524,99
TL
+
KDV
Stok Durumu:
Yok
| Parameter | Min | Typ | Max | Unit | Condition |
| Working Condition | |||||
| Working voltage range | 1.8 | 3.3 | 3.6 | V | |
| Temperature voltage | -40 | 85 | ℃ | ||
| Current Consumption | |||||
| Receiving current | 13.5 | mA | High performance mode | ||
| Receiving current | 10.7 | mA | Low power mode | ||
| Transmitting current | 85 | mA | @20dBm | ||
| Sleep current | < 0.1 | uA | |||
| RF Parameter | |||||
| Frequency range | 403 | 433 | 463 | MHz | @433MHz |
| 470 | 490 | 510 | MHz | @490MHz | |
| 820 | 868 | 880 | MHz | @868MHz, 19dBm | |
| 900 | 915 | 930 | MHz | @915MHz, 18.5dBm | |
| Modulation rate | 0.123 | 1000 | Kbps | FSK | |
| Output power range | -5 | 20 | dBm | ||
| Receiving sensitivity | -126 | dBm | @Data rate=500bps | ||
Features
- Frequency Range：433/490/868/915（customizable 142-520MHz）
- Sensitivity up to -126dBm
- Maximum output power：20dBm
- 10mA@Receiving status
- Data transfer rate：0.1-1000Kbps
- (G)FSK, 4(G)FSK, (G)MSK
- OOK and ASK Modulation mode
- 1.8-3.6 V Power supply
- Ultra-low consumption shutdown mode
- Digital received signal strengthindicator(RSSI)
- Timed wake-up function
- Antenna automatic matching and two-way switch control
- Configurable date packet structure
- Preamble detection
- 64/128byte transmit and receive data register（FiFo）
- Low-battery detection
- Temperature sensor and 8-bitanalog-to-digital converters
- weight：1.3 g
- Operating Temperature Range：-40 ~ +85°C
- Integrated voltage regulator
- Frequency hopping
- Power-on reset function
- Built-in crystal adjustment function
Applications
- Remote control
- Remote meter reading
- Home security alarm
- Industrial control
- Home automation remote sensing
- Individual data records
- Toys control
- Sensor network
- Tire pressure monitoring
- Health monitoring
- Wireless PC peripherals
- Tag reading and writing
