Wiznet

WIZ550web-EVB

Ürün Kodu : WIZ550web-EVB
Yorumlar
1.515,59 TL + KDV
Stok Durumu:
Var (3 Adet)
Not
:
Aynı Gün Kargo 15’e kadar aynı gün kargo
Worldwide Shipment
Next Day Shipment
Kampanya

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • İade ve Teslimat
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Döküman
  • Beni Ara
  • Ek
  • Overview

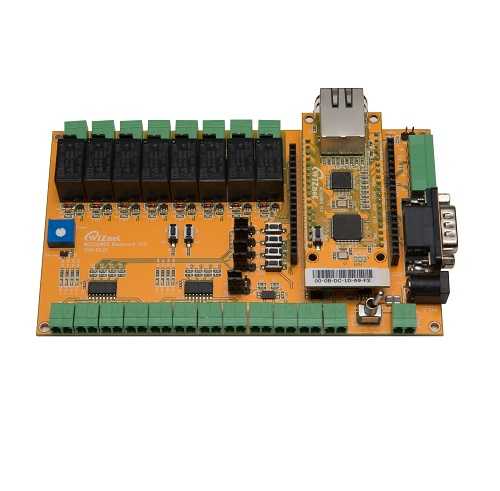

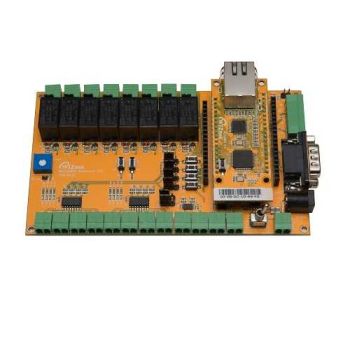

    WIZ550web-EVB is a evaluation board for WIZ550web.

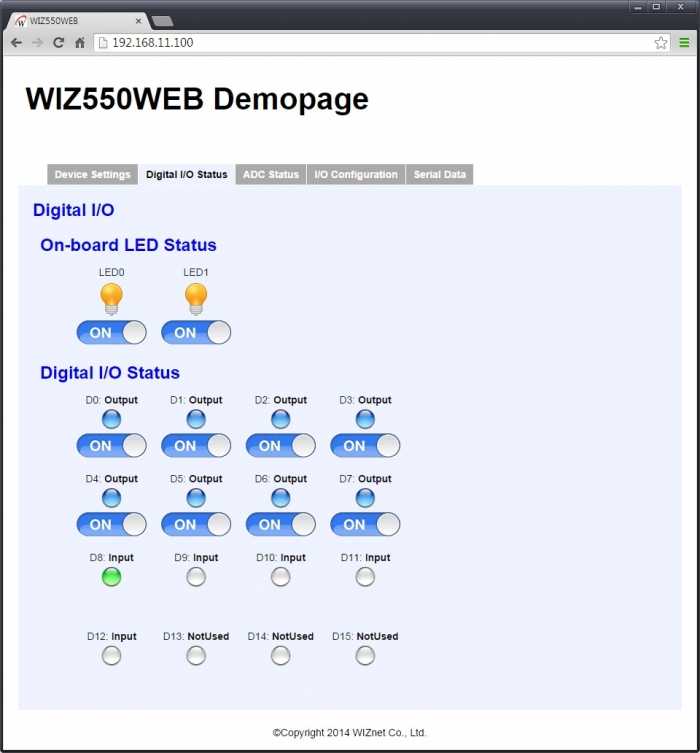

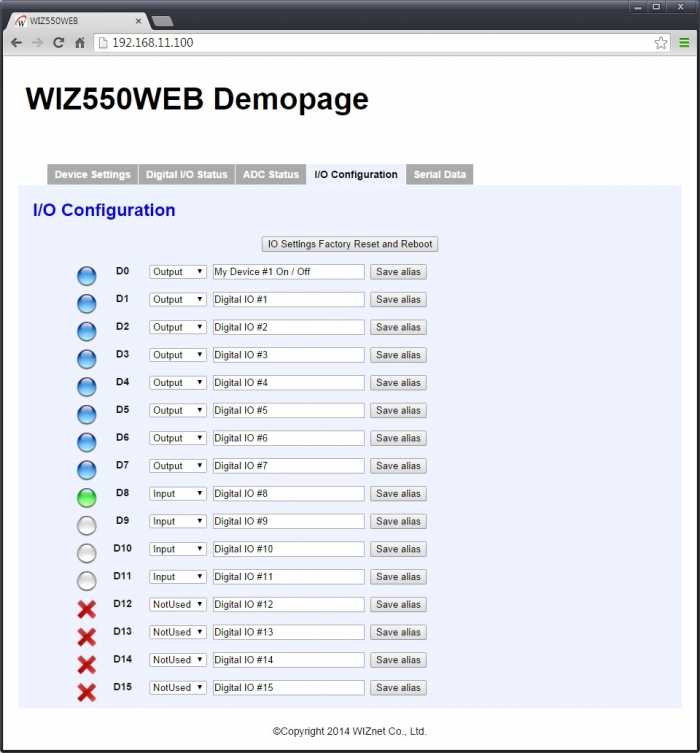

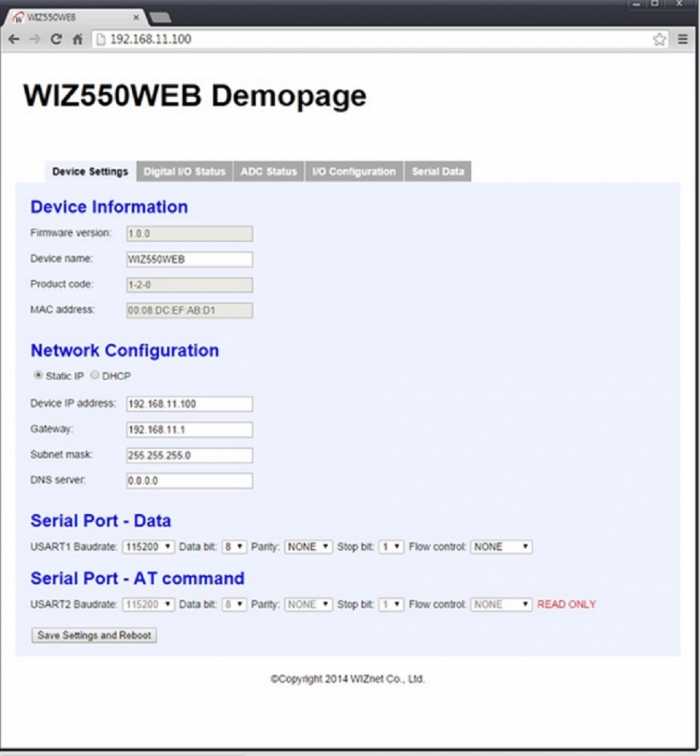

    WIZ550web is an embedded Web server module based on WIZnet W5500 hardwired TCP/IP chip. User can control & monitor the 16-configurable digital I/O and 4-ADC inputs on module via web pages. WIZnet provides firmware & web page examples  for user to customize their own objective.

    Features & Benefits
    • Supports quick test & evaluation of WIZ550web module
    • 8 Digital Input (Photocouplers-TLP290-4 / 4 tact switches)
    • 8 Digital Output (Relay ? HR91C-05)

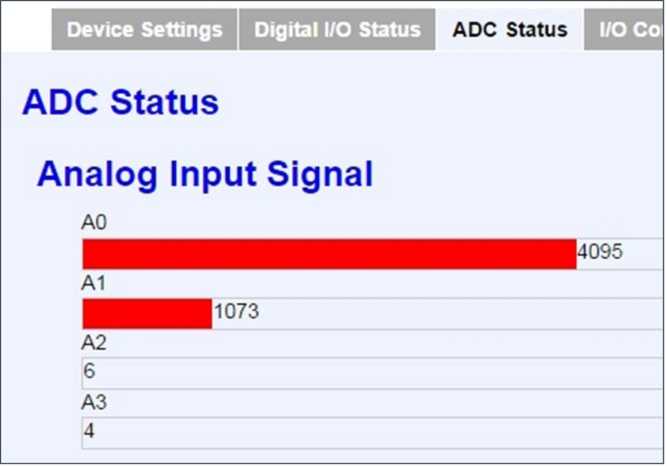

    • 4 Analog Input (A In0 : Potentiometer / A In1 : Temperature Sensor)

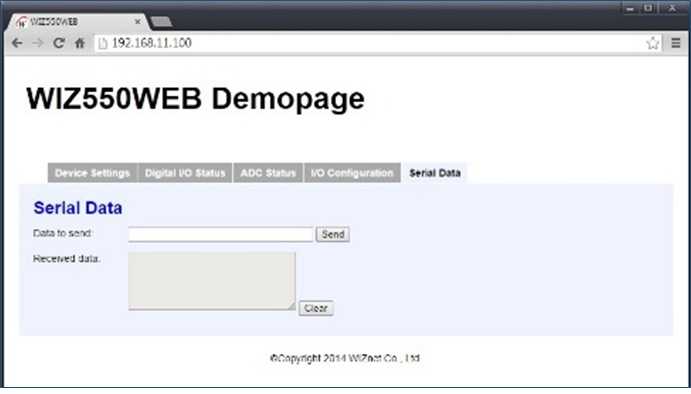

    • RS-232C for serial data transmission & RS422 for AT command input
    • DC 9~24V Power Input
    Hardware Specification
    • MCU : STM32F103RBT6
    • TCP/IP Controller : W5500
    • RJ45(Transformer integrated) : J1B1211CCD
    • External Flash Memory : AT45DB081D

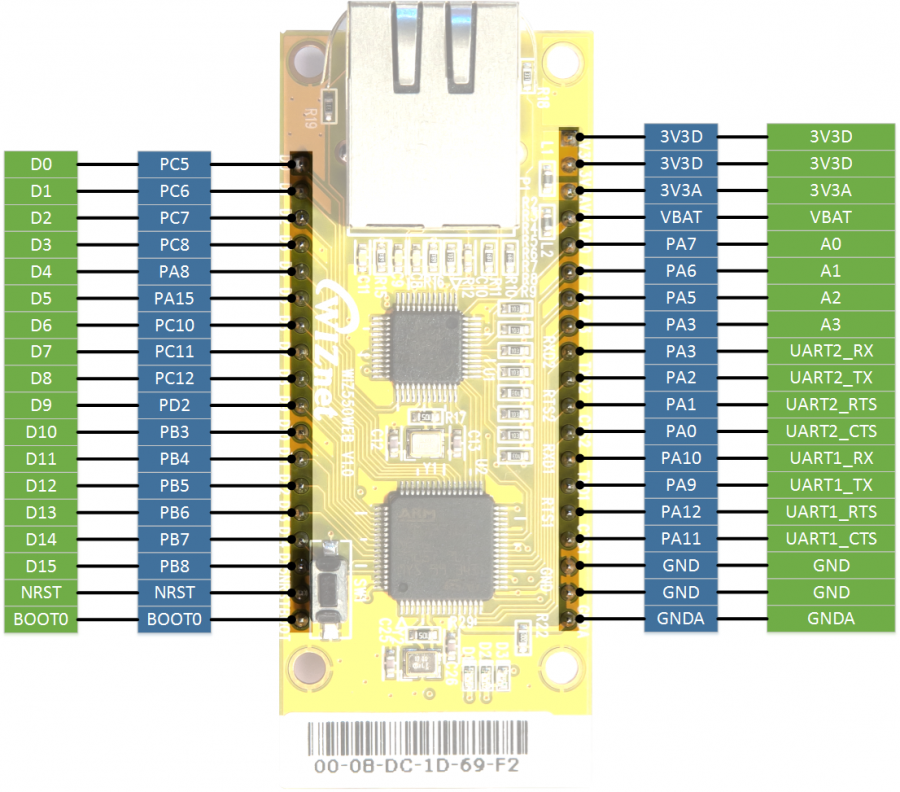

    • 2.54mm Pin Header x 2
    • Size (W x L x H) : 72 x 30 x 24 (mm
