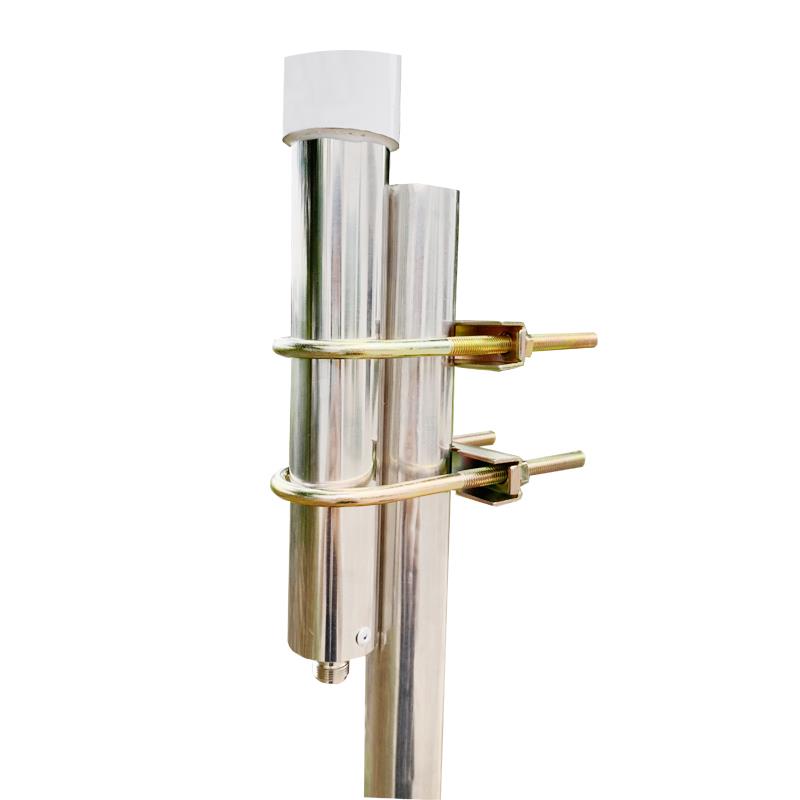

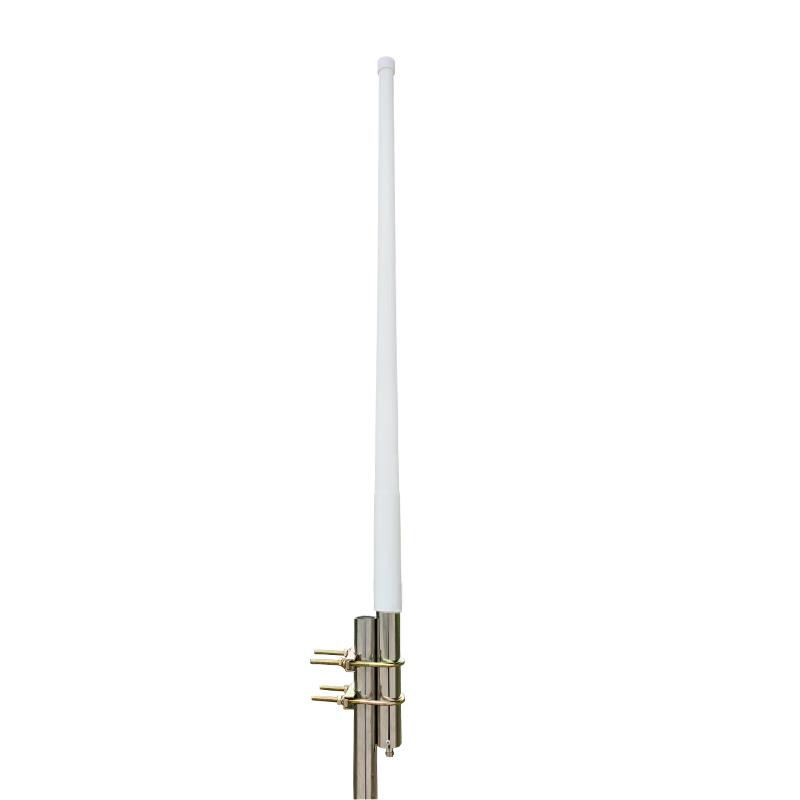

868MHz 10dBi Figerglass Omni-direction Antenna, N/Female
Ürün Kodu
:
LTE-Q868F10
Yorumlar

868MHz 10dBi Figerglass Omni-direction Antenna, N/Female
2.118,66
TL
+
KDV
Stok Durumu:
Yok
Çok Al Az Öde
| Miktar | İndirim | Birim Fiyat |
| 3 - 5 | %5 | 2.012,73 TL + KDV |
| 6 - 9 | %10 | 1.906,80 TL + KDV |
| 10 - 20 | %20 | 1.694,93 TL + KDV |
The antenna cable isn't included in the package. RFID Antenna gives you a wide read field and high-speed RF signal conversion, | |
| so data capture is fast and accurate, even in expansive, high-demand environments. | |
| It is easy to mount on the pole of outdoor, and its rugged white housing is at home in both | |
| customer-facing and industrial settings. So you can achieve superior read zones around | |
| stockroom shelves, warehouse doorways and dock platforms – anywhere boxes and pallets are | |
| moving into and out of your facility. |
| Electrical | |
| Frequency Range | 865-868MHz |
| Band width | ±3MHz |
| Gain | 10dBi |
| V.S.W.R | ≤1.5 |
| Radiation | Omni-Direction |
| Horizontal Beam width | 360° |
| Vertical Beam width | 15° |
| Polarization | Vertical |
| Lightning Protection | DC Grounded |
| Maximum Input Power | 100W |
| Impedance | 50Ώ |

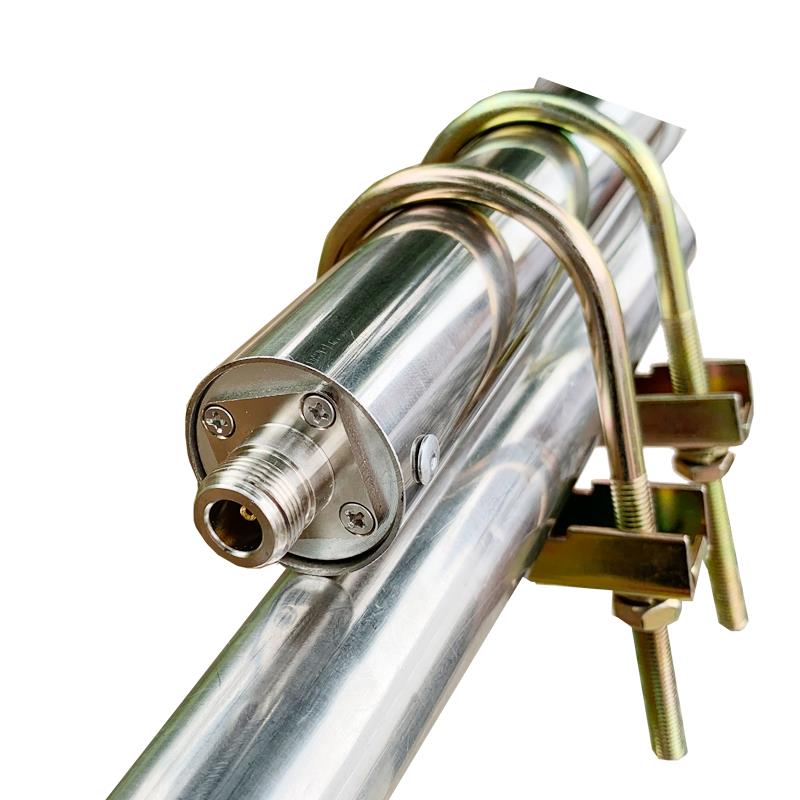

| Connector | N Female |
| Antenna Radome Material | Fiberglass |
| Mount way | Pole |
| Diameter of Installation Pole | Ø30~Ø50mm |
| Mechanical | |

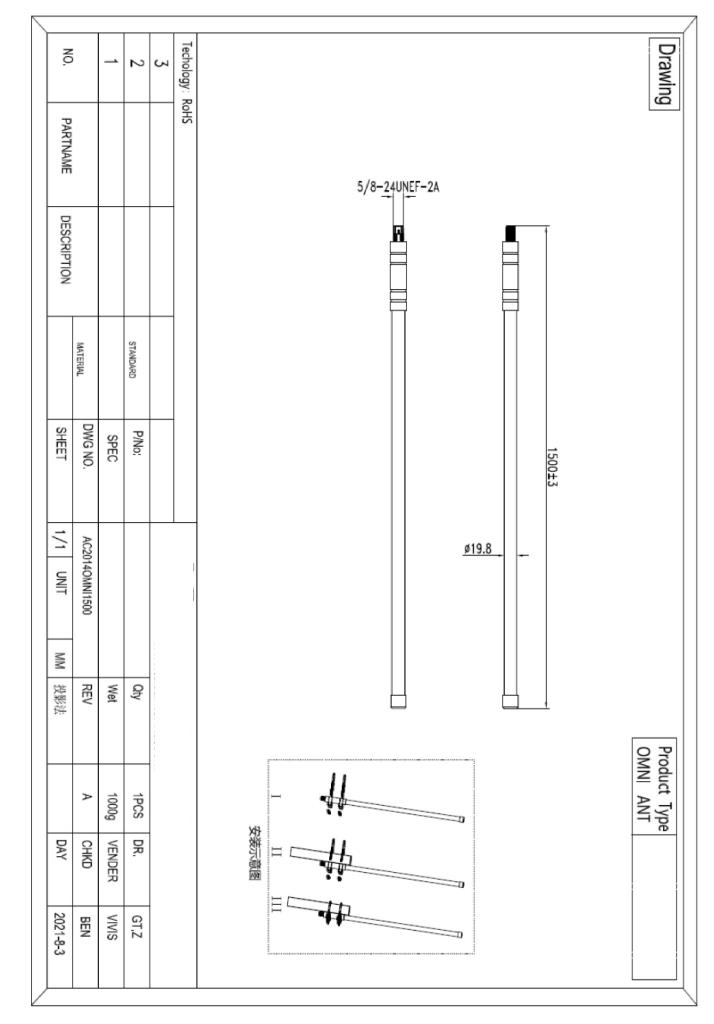

| Dimensions | Φ38x1300mm |
| Weight | 1.8KG |
| Operating Temperature | -40℃ to+80℃ |
| Rated Wind Velocity | 60m/s |
| RoHS Compliant | YES |
| Ürün Filtreleri | ||
|---|---|---|
| Barkod | : | 8690000020348 |
| Tedarikçi Ürün Kodu | : | LTE-Q868F10 |
