| Electrical Specifications | |
| Frequency Range | 868MHz |
| Gain | 10dBi |
| VSWR | <1.5 |
| Input Impedance | 500 |
| Polarization | Vertical |
| Horizontal Half Power Angle | 360° |
| Vertical Half Power Angle | 32° |
| Front to Back Ratio | >15dB |
| Max Input Power | 50W |
| Lightning Protection | DC Ground |
| Mechanical Specifications | |
| Connector Type | N male |
| Working Temperature | -40°C~+65C |
| Antenna Weight | 620g |
| Pole Diameter | 035~055mm |

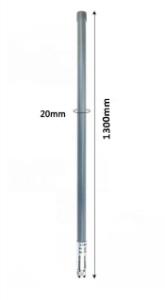

| Size | 020*1300mm |
| Rated Wind Velocity | 210km/h |
| Cover Material | Fiberglass |
| Color | White |
| Ürün Filtreleri | ||
|---|---|---|
| Barkod | : | 8690000022472 |
| Tedarikçi Ürün Kodu | : | LTE-14325-10 |
