8dBi Fiberglass Antenna Bundle 2 – N Type To IPEX 858-878 MHz
Ürün Kodu : LTE-RAK-915022
2.095,90 TL + KDV
Stok Durumu:
Yok
Not
:
Aynı Gün Kargo
12.30’a kadar aynı gün kargo
Worldwide
Shipment
Next Day
Shipment
Kampanya
{{CMP.TITLE}}
{{CMP.DESCRIPTION}}
- Ürün Özellikleri
- İade ve Teslimat
- Ödeme Seçenekleri
- Yorumlar (0)
- Beni Ara
- Ek
-
SKU: 915022 > Bundle 2 Variant, N-Type To MHF EU868 MHz
Indoor Usage Recommended.

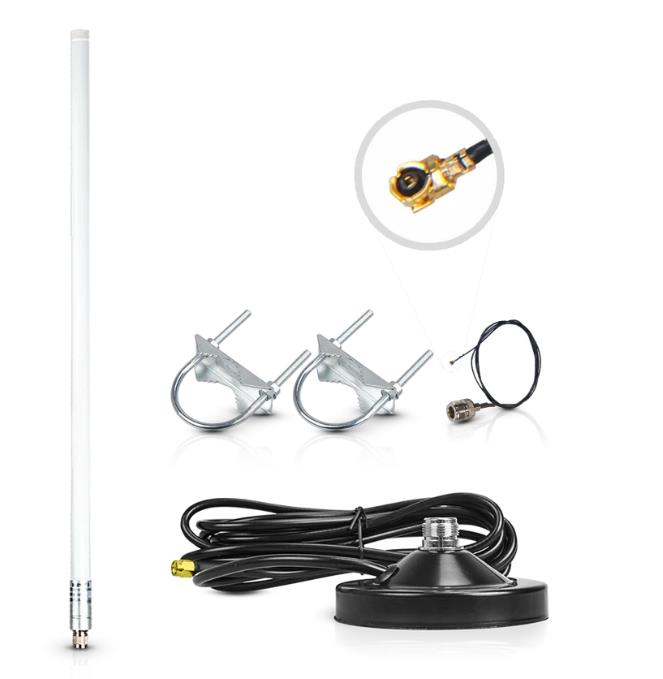

This bundle consists of 8dBi fiberglass antennas and an Antenna magnetic base for LoRa®.
To choose the appropriate antenna with regards to the LoRa frequency of your region, please refer to the TTN's guide, and/or the Regional Parameters Documentation provided by the LoRa Alliance.
- The antenna magnetic base is not suitable for mounting outside. This is due to the fact that it is not water-tight and high moisture levels would eventually damage it and result in an inoperable installation. RAKwireless recommends only using it in indoor conditions, away from wet environments.
- This antenna cannot be used for the EU433 and CN470 frequencies.
Frequency
858-878MHz
Gain
8.0 dBi (±1dBi)
VSWR
≤1.5
Beamwidth
360 degrees
Impedance
50 Ohms
Polarization
Vertical
Radome Body
Fiberglass
Connector Type
N-Type Male
Antenna Dimensions
1300 ± 15mm
Operation Temperature
-30°C~65°C
Storage Temperatures
-30°C~75°C
