KG02 Bluetooth Beacon Gateway is a powerful IoT Gateway, which scans nearby Bluetooth devices and upload to server via 3G/4G cellular/Wi-Fi/Ethernet connectivity beacon gateway without using smartphones or apps. The KG02 Beacon Gateway collects the data from iBeacon, Eddystone, BLE sensor and other BLE 4.0/4.1/4.2/5.0 devices, and upload to the local or remote cloud server by MQTT/HTTPS protocol over 3G/4G, ethernet, Wi-Fi or WiFI hopping. And KG02 Beacon Gateway also support update the KKM beacons parameter remotely.
KG02 Bluetooth gateway support GPS function, it can use for monitoring temperature in cold chain logistics, asset tracking real-time GPS locations.
Key Features:
● Support Wi-Fi / Ethernet / Cellular
● Support iBeacon/Eddystone/Kensor and other BLE device
● Support HTTP/HTTPS, MQTT/TLS MQTT
● WiFi enterprise encryption
● Powerful network diagnostics
● Hardware level WatchDog, ensure 24-hours full time data upload
● Optional 4G LTE module & GPS module
● Web portal for configuration
● CE/FCC certified
KKM KG02 Beacon Gateway offers a easy maintenance. The user is easy to configure the KG02 gateway via a web/phone UI, and it support remote gateway configuration via MQTT.
KKM KG02 BLE Gateway receive data from iBeacon/Eddystone or other BLE data, and upload to Cloud via MQTT/HTTPS.
With KKM open API, you can explore & expand more use case such as indoor location, asset tracking or other BLE based service/applications.
Support 3G/4G, WiFi, Ethernet/PoE to upload data
Bluetooth Low Energy Long range Beacon gateway
Ultra-low power consumption chipset ARM series
Firmware update Over The Air (OTA)
Logo and color customizable (MOQ)
Provided with your own configuration (MOQ 50 unit)
Easy to config web & phone UI
Features of the Bluetooth Beacon IoT Gateway

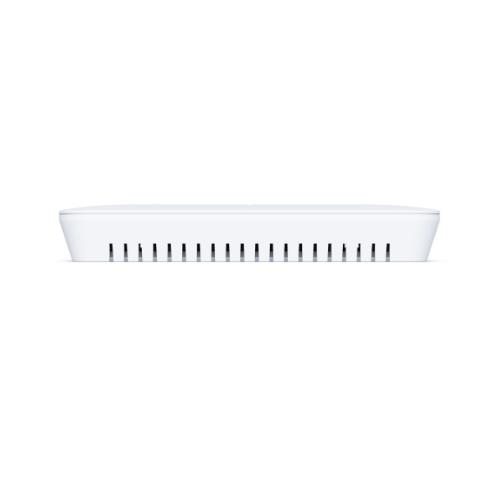

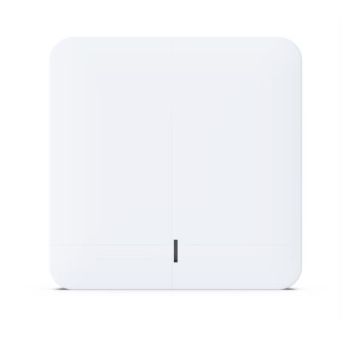

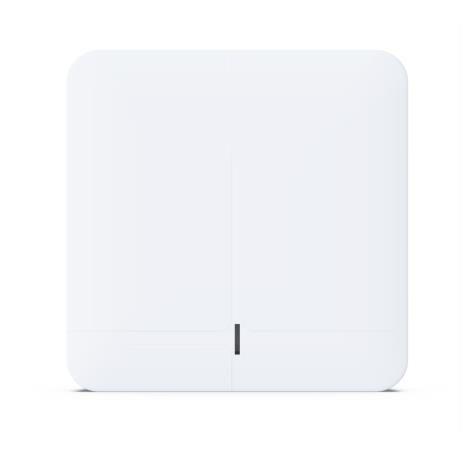

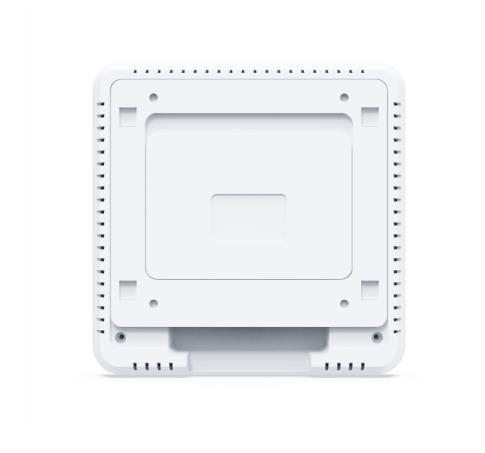

- Slim design, fit for roof & wall installation.
- BLE5.0 Feature
- BLE distance: up to 300 meters in open space (with AP)
- Open protocol: Local server or HTTPS/MQTT to cloud
- Bi-directional: reads advertisement data and sends command(update beacon parameters from cloud)
- Configuration: Web portal and phone protal
- Transmit: ETH/Wifi/Wifi-hopping or usb extend(3G/4G module)
- Power: 5V DC or ETH PoE(802.3af)
- Base on latest OpenWrt 18.29
- BLE chip: nRF528xx serie
- With 3dBi flexible FPC antenna
- Up to 150 Mbps PHY data rate
- Built-in RTC and NTP support
- 1T1R 2.4GHz frequency band
- IEEE 802.11b/g/n
- Supports 802.3af PoE standard
- Supports firmware upgrade Over-the-Air
- Supports remote configuration
- POE status LED indicator
- Data usage monitoring
