KKMCN Bluetooth Badge Beacon C3 Series

Ürün Kodu : KKMCN-C3
Yorumlar
0,00 TL + KDV
Stok Durumu:
Yok
Teklif İsteyiniz Stoklara düşünce haber ver
Not
:
Aynı Gün Kargo 12.30’a kadar aynı gün kargo
Worldwide Shipment
Next Day Shipment
Kampanya

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • İade ve Teslimat
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Beni Ara
  • Ek

  • Bluetooth Rechargeable Badge Beacon C3
    Bluetooth Low Energy 4.0/5.0
    Ultra-low power consumption chipset Nordic nRF52 series
    Support iBeacon/ Eddystone at the same time
    Logo and color customizable
    Provide with your own configuration
    100% configuratble parameters via App (Both Android & ios)

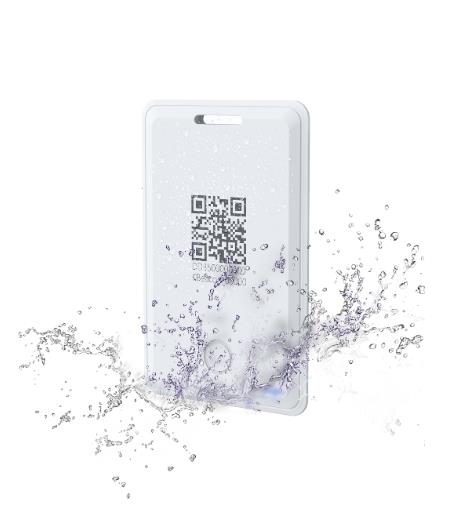

    C3 rechargeable Card Beacon is waterproof & ID card design Beacon with ultra low power chipset Nordic nRF52 series and BLE 5.0 technology.

    C3 rechargeable badge also have variety of NFC/RFID standard support.
    It is in credit card size and can be easily hanged in a lanyard. It has very strong signal, it is designed for personnel management, SOS, and indoor location-based service such as hospital patient management solution, staff management, SOS solution.

    C3 Bluetooth ID badge broadcasts 2.4GHz radio signals at regular and adjustable intervals, its parameters are configurable by Android & iOS App and KGateway.



    FEATURES

    • Smart magnetic charging
    • External button for SOS
    • Multiple RFID/NFC standard support
    • Wearable & credit-card sized design
    • IP67 dust & water resistance
    • Up to 984 ft (300 m) broadcast distance

    Rechargeable badge

    Ultra-low power consumption chipset

    Support 5url broadcasting

    Firmware update Over The Air (OTA)

    Logo and color customizable

    Provided with your own configuration

    100% Configurable Parameters via app (Android & iOS)



    Size
    86mm*56mm*5.4mm
    Material
    ABS
    Color
    White (colors customizable)
    Weight
    24g (with battery)
    Battery capacity
    400mAh rechargeable battery
    Battery life
    16 months per charge (2 hours for fully recharge)

    * Base on Adv Interval 1000ms and TX power 0dBm, no Coded PHY
    IP rating
    IP67 waterproof
    Working temperature
    -20℃ ~+60℃
    Working humidity
    0 ~ 99% RH
    Switch
    External Button
    Sensor
    Accelerometer Sensor (optional)
    Config APP
    KBeaconPro
    Bluetooth Version
     BLE 5.0/ BLE 4.x
    OTA
     Yes
    TX power
    -40~+4dBm (C3P: -40dBm~+8dB)
    Broadcast Interval
    100ms ~ 40000ms
    Transmit Range
    C3: >80 meters;
    C3P: BLE4.x >80 meters; BLE5.0 Coded PHY long range 300 meters
    *Base on installing in open space
