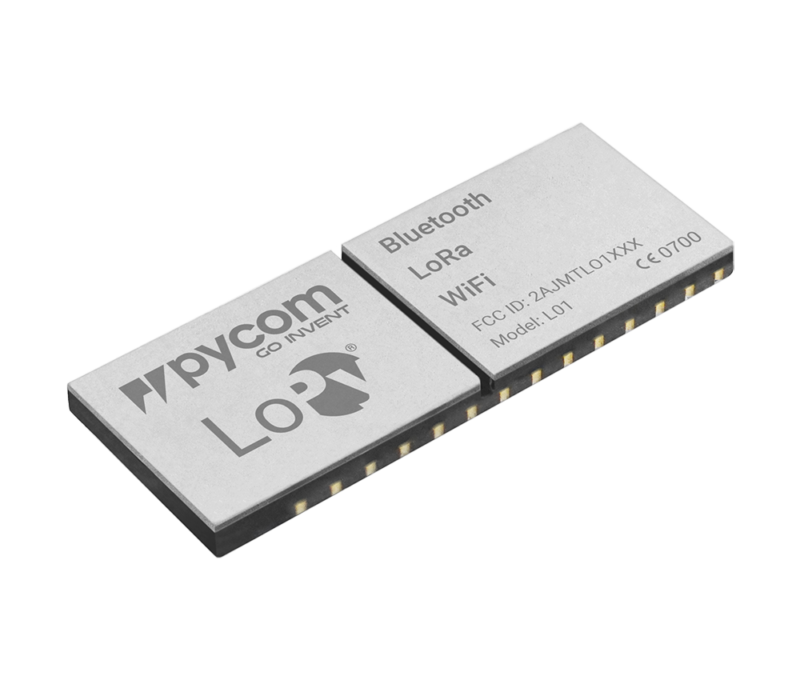

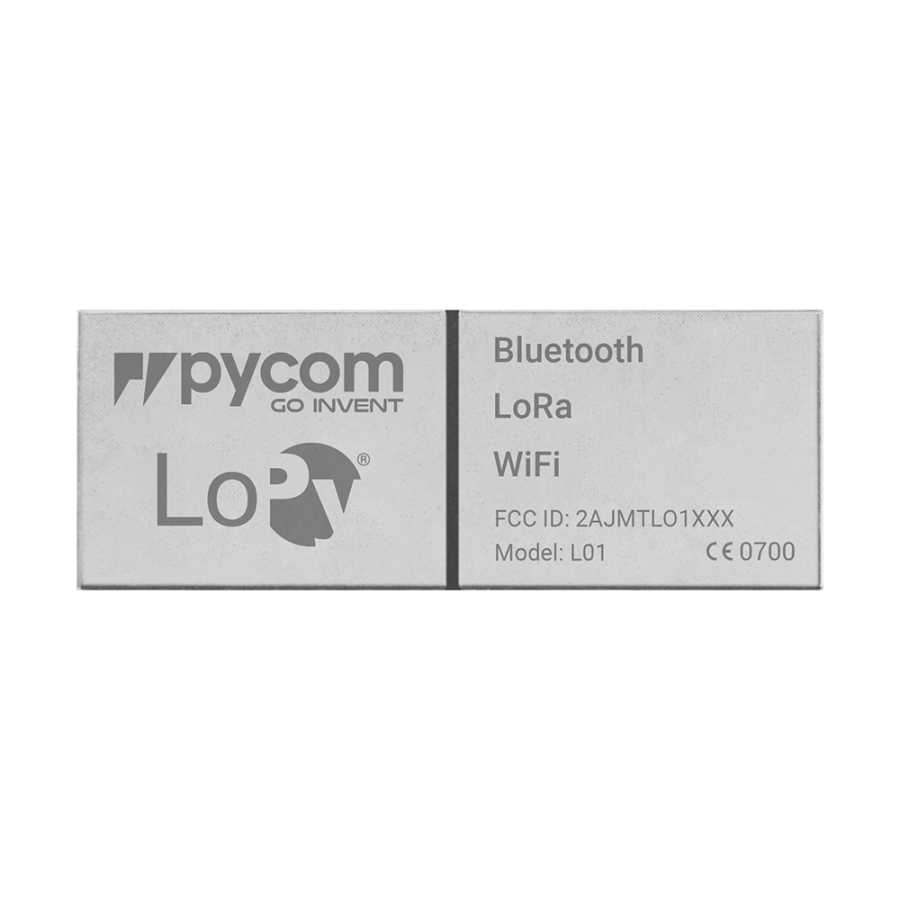

L01 OEM

With LoRa, Wifi and BLE, the L01 OEM Module is the only
triple bearer MicroPython enabled micro controller on the
market today – the perfect enterprise grade IoT platform for
your connected Things. With the latest Espressif chipset the L01
offers a perfect combination of power, friendliness and flexibility.
Create and connect your things everywhere. Fast.

L01 Features

• Powerful CPU, BLE and state of the art WiFi radio. 1KM Wifi Range
• Can also double up as a Nano LoRa gateway
• MicroPython enabled
• Fits in a standard breadboard (with headers)
• Ultra-low power usage: a fraction compared to other connected micro controllers

Processing

• Espressif ESP32 chipset
• Dual processor + WiFi radio System on Chip.
• Network processor handles the WiFi connectivity and the IPv6 stack.
• Main processor is entirely free to run the user application.
• An extra ULP-coprocessor that can monitor GPIOs, the ADC channels and
  control most of the internal peripherals during deep-sleep mode while
  only consuming 25uA.

Interfaces

• 2 x UART, 2 x SPI, I2C, I2S, micro SD card
• Analog channels: 8x12 bit ADCs
• Timers: 4x16 bit with PWM and input capture
• DMA on all peripherals
• GPIO: Up to 24

Hash / encryption

• SHA, MD5, DES, AES

WiFi

• 802.11b/g/n 16mbps

Bluetooth

• Low energy and classic

RTC

• Running at 32KHz

Security & Certifications

• SSL/TLS support
• WPA Enterprise security
• FCC - 2AJMTL01XXX
• CE 0700

Memory

• RAM: 4MB
• Flash Memory: 8MB
• Hardware floating point

acceleration

• Python multi-threading
