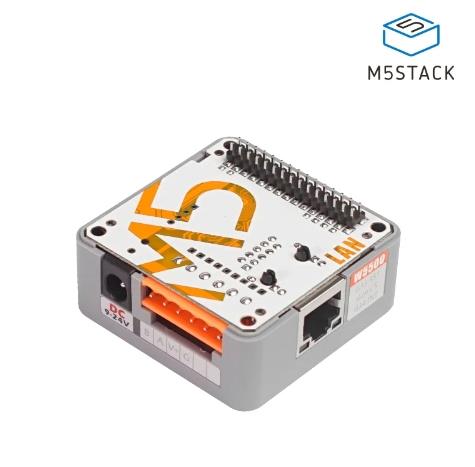

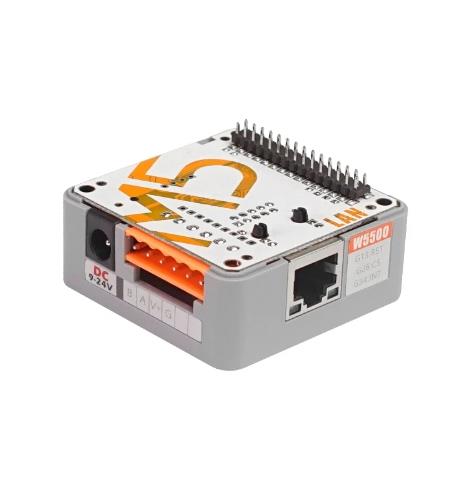

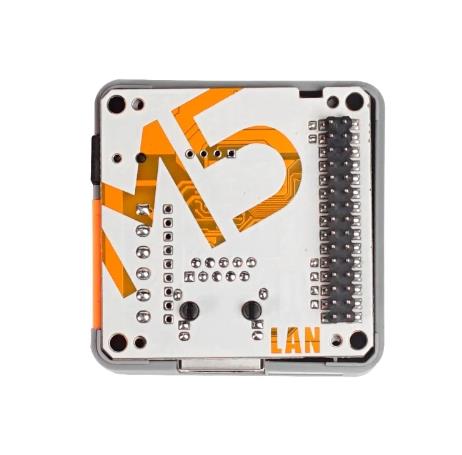

LAN Module W5500 with PoE

Ürün Kodu : LTE-K012-C-V12
Yorumlar
Paylaş:
Fiyat Alarmı
4.035,55 TL + KDV
Alışveriş Listeme Ekle
PRODUCT DETAILS

Description

LAN PoE BASE V12 is an Ethernet control module that integrates PoE (Power Over Ethernet) function. Adopt W5500 full hardware TCP/IP embedded Ethernet controller (SPI communication interface) scheme, support multiple communication protocols (TCP, UDP, IPv4, ICMP, ARP, IGMP and PPPoE, etc.) Network packet processing.

Internally reserved expansion pads can be used to expand RS485/RS232/CAN communication adapter modules or add custom designs, support PoE power supply and standard rail fixing accessories, no need for additional power supply wires and structural design. It can be easily deployed on industrial sites. With both performance and expansion flexibility, LAN PoE BASE V12 can provide you with a more compact embedded Ethernet connection solution.

Product Features

  • W5500:
    • Support 8 independent hardware sockets for simultaneous communication
    • Support TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE protocols
    • Integrated 10BaseT / 100Base-T Ethernet PHY
  • Wired Ethernet access
    • RJ45 adaptive 10/100M network port
  • Power input method:
    • Support PoE IEEE802.3 AF / Voltage DC 37-57V
    • Support input power voltage: 9-24V
    • Support MBUS 5V power supply (when used with M5CORE)

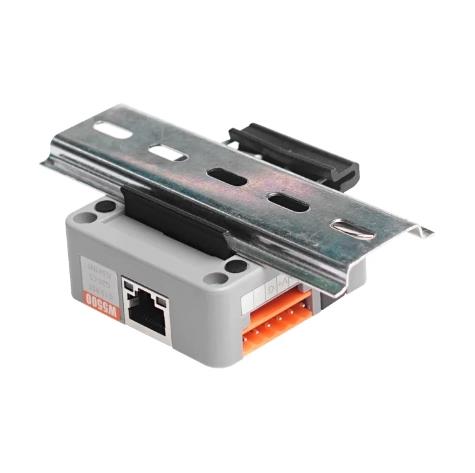

  • Slide rail or magnetic fixation

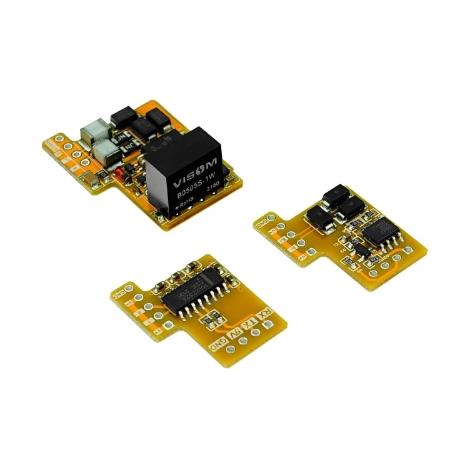

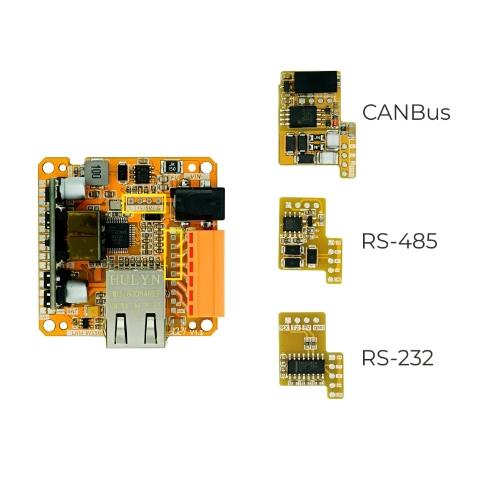

  • RS485/RS232/CAN communication expansion board

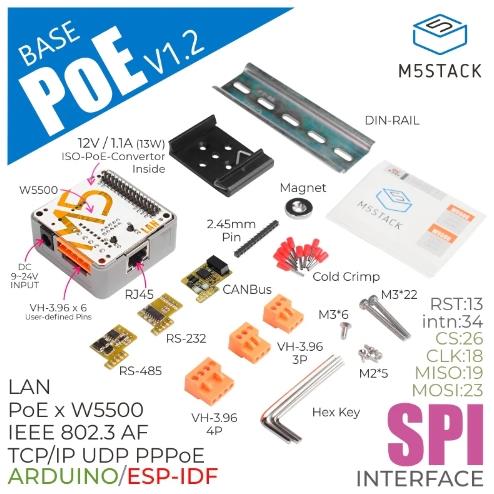

Include

  • 1x LAN PoE BASE V12
  • 1x RS485-To-TTL adapter board
  • 1x RS232-To-TTL adapter board
  • 1x CAN-To-TTL adapter board
  • 1x HT3.96-4P terminal
  • 2x HT3.96-3P terminals
  • 1x 1.5mm hex key
  • 1x 2.0mm hex key
  • 1x 2.5mm hex key
  • 10x 2mm Crimp Terminals
  • 1x magnet (with hole in the middle, diameter 15mm, thickness 3mm)
  • 1x 35mm silver metal rail
  • 1x 35mm black rail clip
  • 1x M3*6mm screw (countersunk head, mechanical teeth)
  • 2x M3*28mm screws (cup head, mechanical teeth)
  • 4x M2*5mm screws (cup head, self-tapping)
  • 1x cable gland (M12)
  • 1x 2.54mm-20P straight pin header (total height 5.32mm)
  • 1x product sticker

Specifications

SpecificationsParameters
W5500 Ethernet ControllerSupports Hardwired TCP/IP Protocols : TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
Supports 8 independent sockets simultaneously
Supports High Speed ​​Serial Peripheral Interface(SPI MODE 0, 3 )
Internal 32Kbytes Memory for TX/RX Buffers
RS485-To-TTLSP485EEN-L/TR
RS232-To-TTLMAX232ESE
CAN-To-TTLCA-IS3050G
Ethernet portRJ45 adaptive 10/100M Ethernet port
