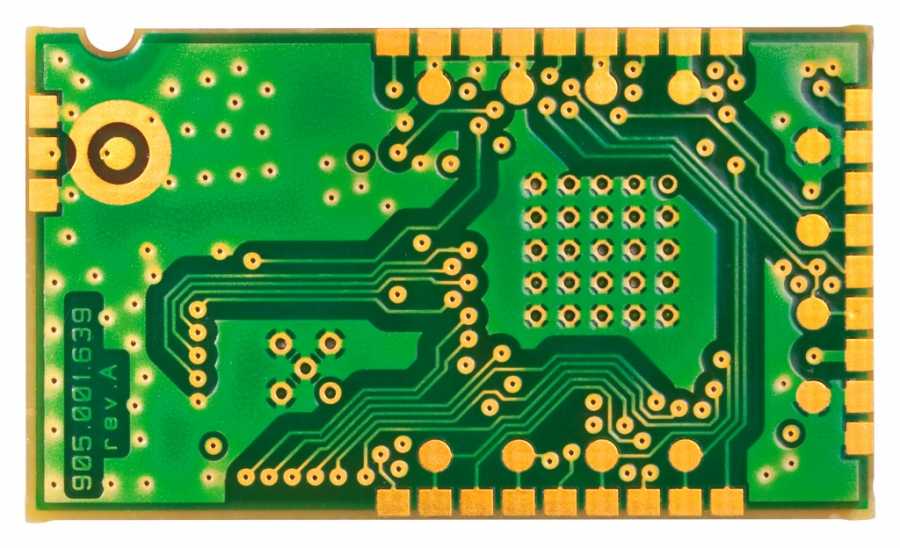

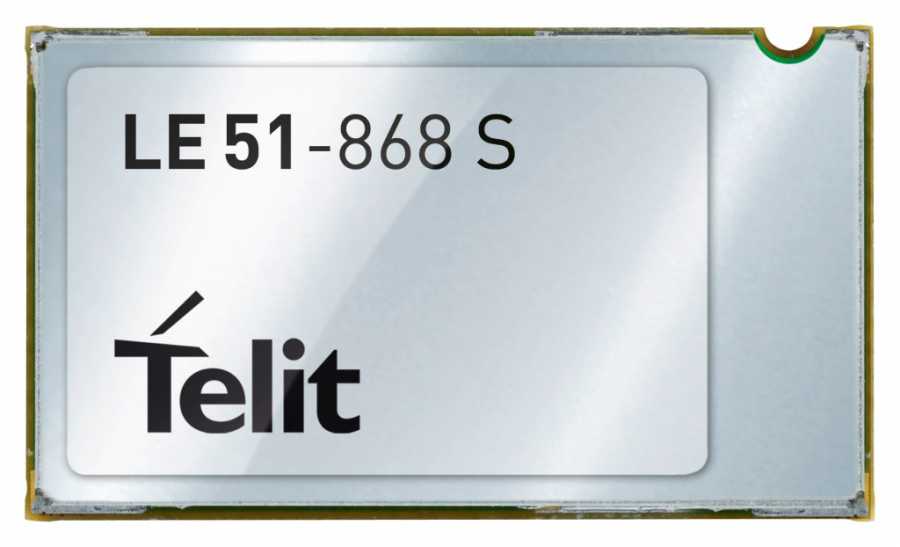

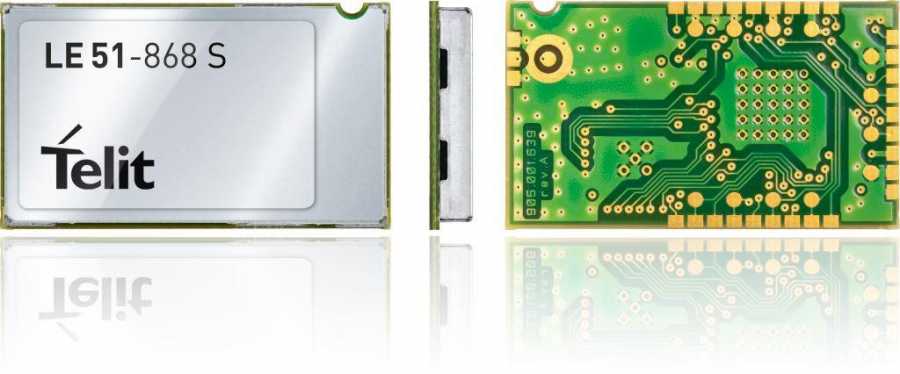

LE51-868 S 863-870Mhz, LGA Package, Star network

The LE51-868 S is a high performance certified short range to long range module designed to cover the 863-870 MHz band working with the Telit Proprietary protocol and acting as a SIGFOX gateway. It has high value technical characteristics such as a -126dBm sensitivity, ultra-low power consumption and up to 15dBm of output power. It is very easy to integrate, with small form factor and acts as a long range communication module connecting directly to SIGFOX network. It can also organize in a "Star Network" topology or chain communication with embedded smart repeater function over a Telit proprietary protocol for short range.

• Networking: Sigfox gateway

• Frequency: 868.2 Mhz

• Channel: 1

• Modulation: BPSK

• 100 bps

• Gateway to Sigfox Base station

• Broadcast 1.6 sec

• ETSI: 140 messages of 12 bytes, per object per day

Key Benefits

• SIGFOXTM certified gateway

• Bridges short range network with advanced

• Telit proprietary Star Network + repeater mode to long range with Sigfox

• Ultra narrow band technology

• Ultra low power mode

• Budget link:

• 141 dB: Star network

• 156 dB: Sigfox gateway

• Range : up to 2000m / up to 40km
