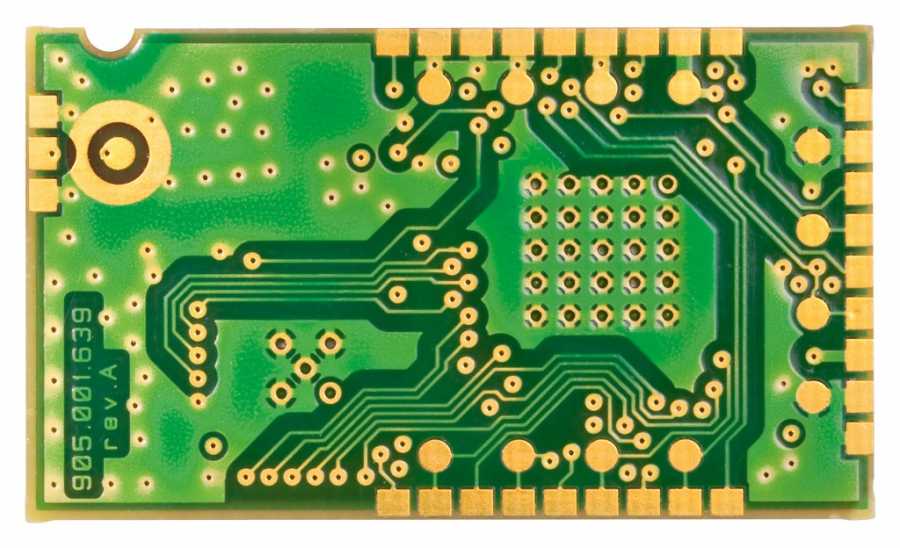

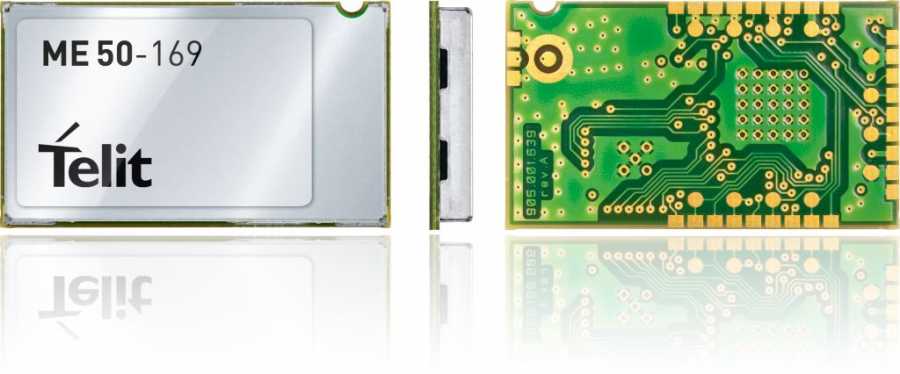

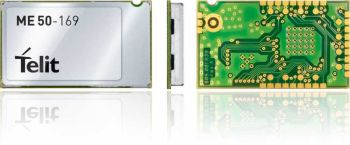

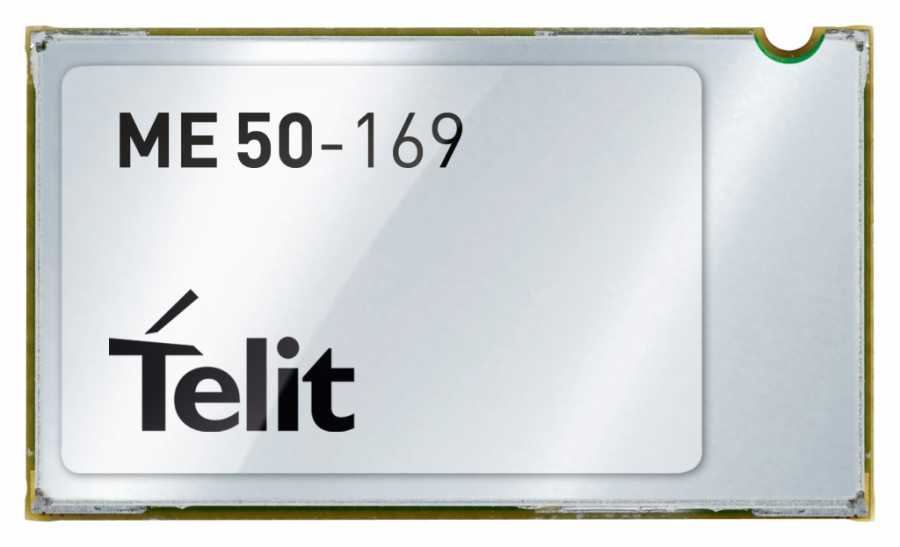

ME50-169/SMD-WA-169Mhz, SMD Package, Mbus, Long Range

The Telit ME50-169 is a wireless M-Bus module compliant with the EN13757 part 4 and part 5 Wireless M-Bus standard. It is ideally suited for use in one or two-way data links with gas, water, heat and electricity meters and concentrators.

The ME50-169 operates in the 169 MHz band and runs Wireless M-Bus N mode protocol, defined by EN13757-4 2012 for this band, on Tx power of up to 35mW.

• Telit-developed Wireless M-Bus stacks

• Very low power consumption

• Custom development and integration

• Pre-certified RF modules, LGA xE Form Factor, TTL RS232 interface

• Excellent RX sensitivity

• Download Over The Air (DOTA)

• Industrial temperature range

Key Benefits

• W M-Bus modes by Telit, leave integrators to work on applications

• Wide area coverage

• The low-power, programmable ATX Mega can be used as platform for metering and in-home display

• Very low consumption for battery powered applications

• Range : 5000m
