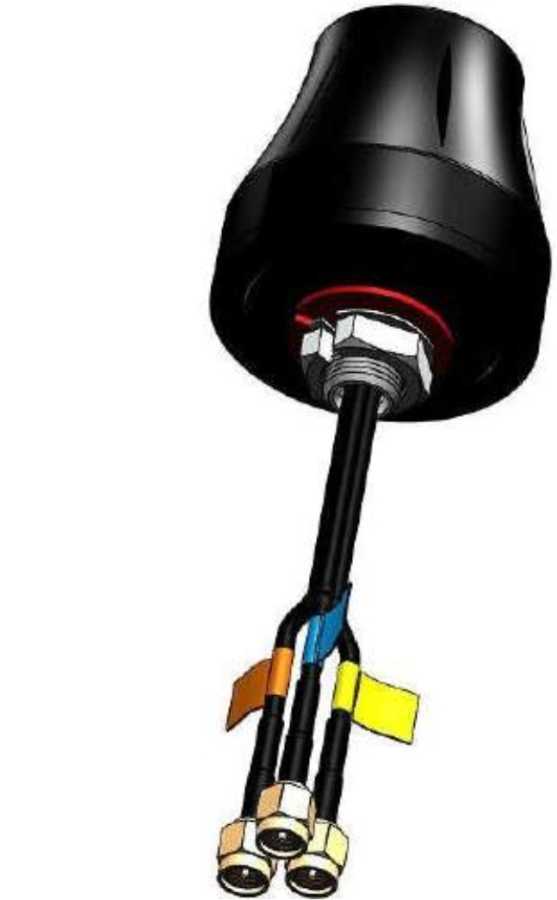

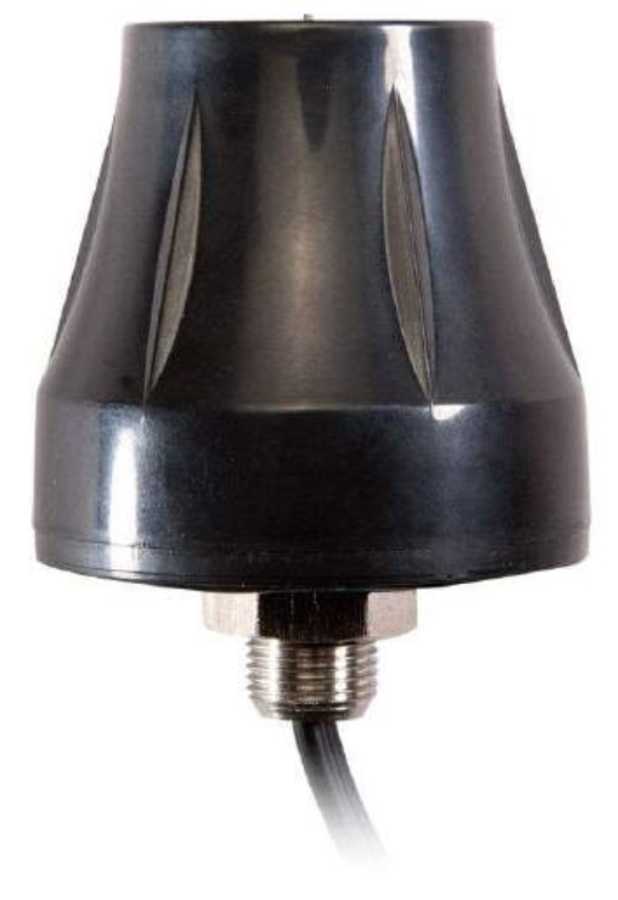

LTE-E-058

Product Code : LTE-E-058
Comments
1,042.07 TL + VAT
Stock Status:
In (21 Piece)

Note
:
Same Day Cargo Same day cargo until 12.30 o'clock
Worldwide Shipment
Next Day Shipment
Campaign

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Features
  • Return and Delivery
  • Payment Options
  • Comments (0)
  • Document
  • Call Me
  • How Will We Ship To You
  • Ek
  • GSM Antenna
    Frequency Range : 694~960MHz/1710~2655MHz
    V.S.W.R : ＜3.0
    Polarization : Linear
    Gain : 2dBi
    Impendance : 50Ω

    GPS Antenna
    Center Frequency : 1575.42±1MHz
    Band Width : CF±5MHz
    Polarization : RHCP
    Gain : 5dBic（Zenith）
    V.S.W.R : ＜1.5
    Impendance : 50Ω
    Axial Ratio : 3dB（max）
    LNA
    Gain : 28±2dB
    Noise Figure : ＜1.5
    Ex-band Attenuation : 12dB@CF+50MHz/16dB@CF-50MHz
    V.S.W.R : ＜2.0
    Supply Voltage : 2.2~5V DC
    Current Consumption : 5~15mA

    WIFI Antenna
    Frequency Range : 2400~2483.5MHz
  • LTE-E-058.compressed
