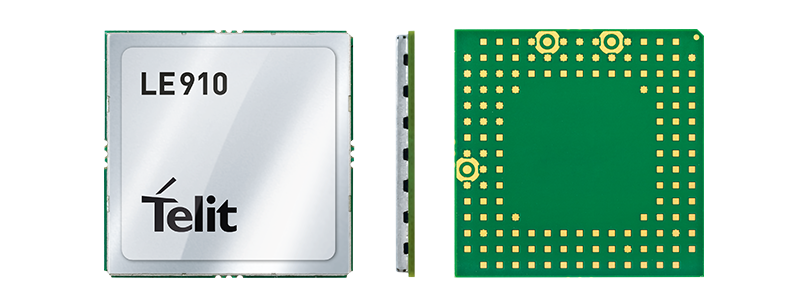

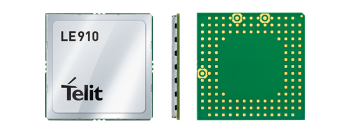

LE910-EUG

Product Features

• Rx Diversity and MIMO DL 2x2

• Embedded GPS|GLONASS receiver

• SIM Access Profile

• LTE 3GPP release 9 compliant

• SIM application Tool Kits 3GPP TS 51.014

• Digital voice

• IP stack with TCP and UDP protocol

• Standard and extended AT command set

• e-Call compliant

Data

LTE

• Uplink up to 50 Mbps

• Downlink up to 100 Mbps

HSPA+

• Uplink up to 5.76 Mbps

• Downlink up to 42.0 Mbps

UMTS

• Uplink/Downlink up to 384 kbps

Environmental

• Dimensions 28.2 x 28.2 x 2.2 mm

• Temperature Range

-40°C to +85°C

• REACH and RoHS compliant

Interfaces

• 144-pin LGA Interface

• 10 I/O ports including

multifunctional I/Os

• USB 2.0 HS

• UART

• 1.8 V / 3 V SIM interface

• RF pad, RX Div. & MIMO pad,

GNSS Antenna pad

Approvals

• CE, GCF (Europe)

• FCC, PTCRB, IC (North America)

• KCC (Korea)

Electrical & Sensitivity

• Output power

- Class 4 (2 W, 33 dBm) @ GSM 850/900

- Class 1 (1 W, 30 dBm) @ GSM 1800/1900

- Class E2 (0.5 W, 27 dBm)@ EDGE 850/900

- Class E2 (0.4 W, 26 dBm)@ EDGE 1800/1900

- Class 3 (0.25 W, 24 dBm) @ UMTS

- Class 3 (0.2 W, 23 dBm) @ LTE

• Supply voltage

- Nominal: 3.8 VDC

- Range: 3.3 - 4.2 VDC
