tGPS_Micro_BoB

Product Code : tGPS_Micro_BoB
Comments
1,383.75 TL + VAT
Stock Status:
In (4 Piece)

Note
:
Same Day Cargo Same day cargo until 12.30 o'clock
Worldwide Shipment
Next Day Shipment
Campaign

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Features
  • Return and Delivery
  • Payment Options
  • Comments (0)
  • Document
  • Call Me
  • How Will We Ship To You
  • Ek

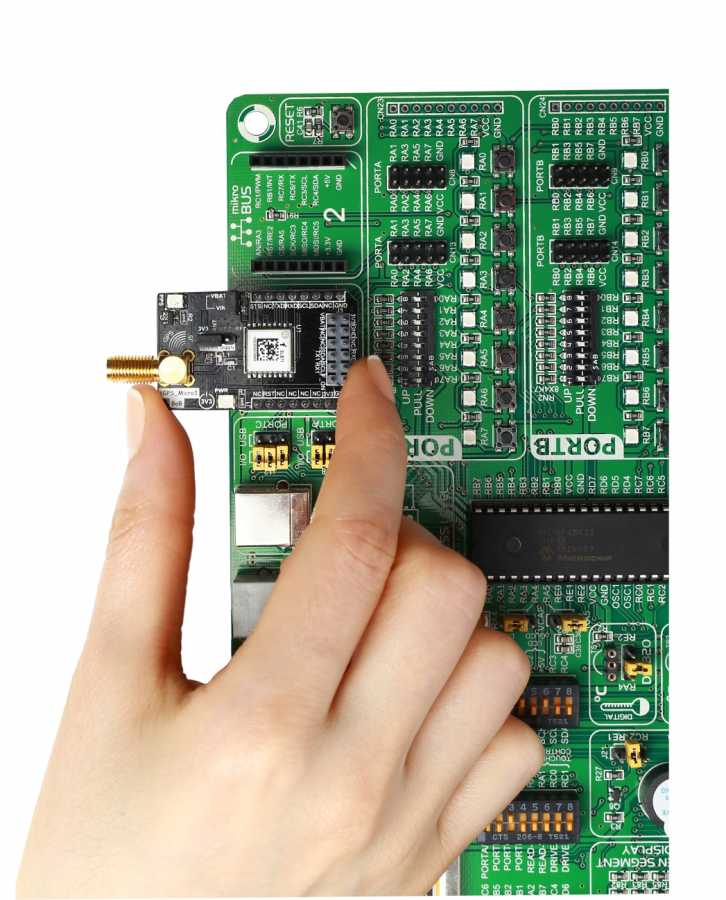

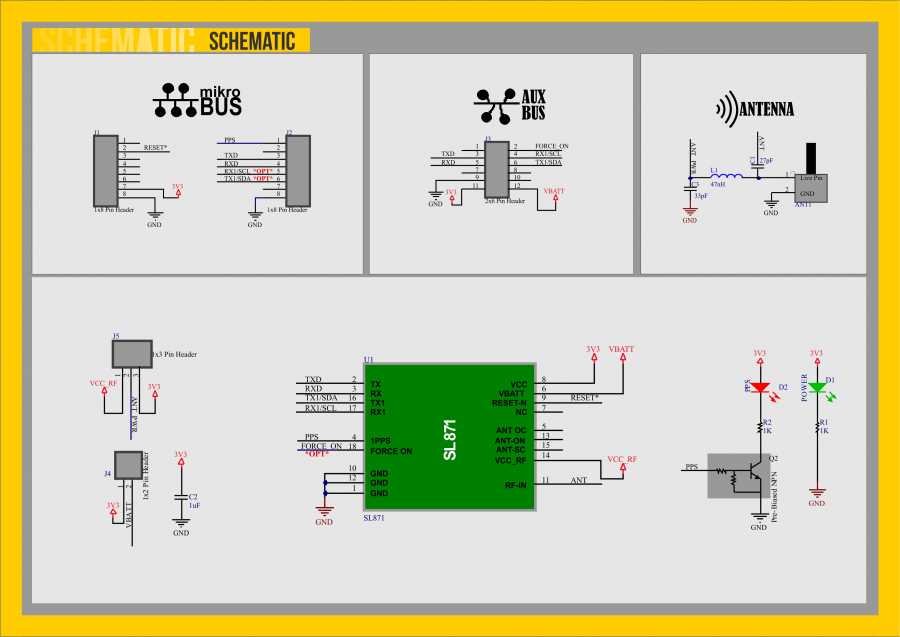

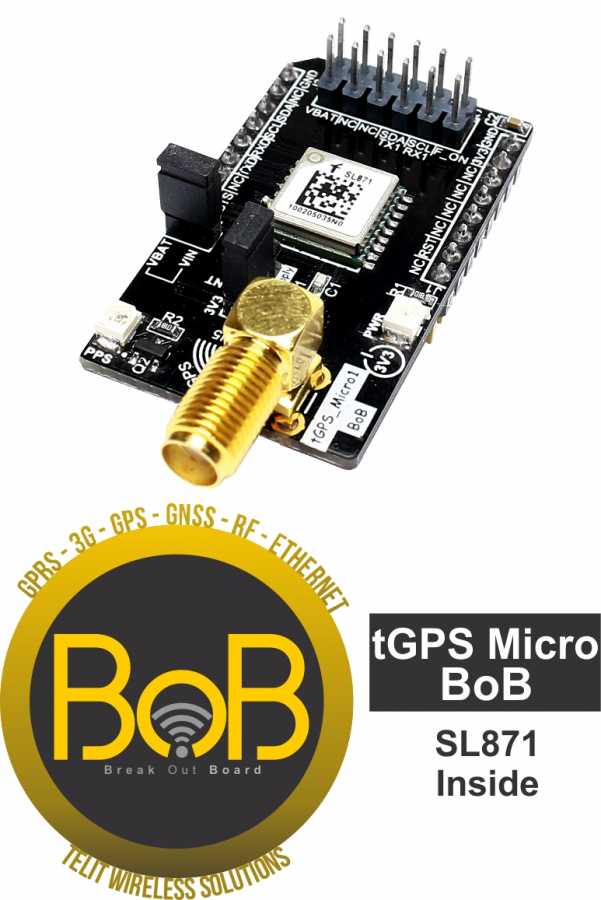

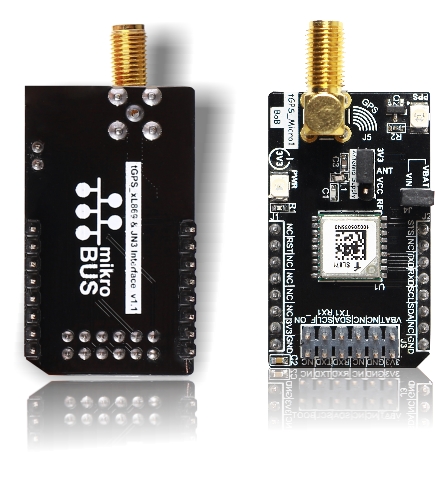

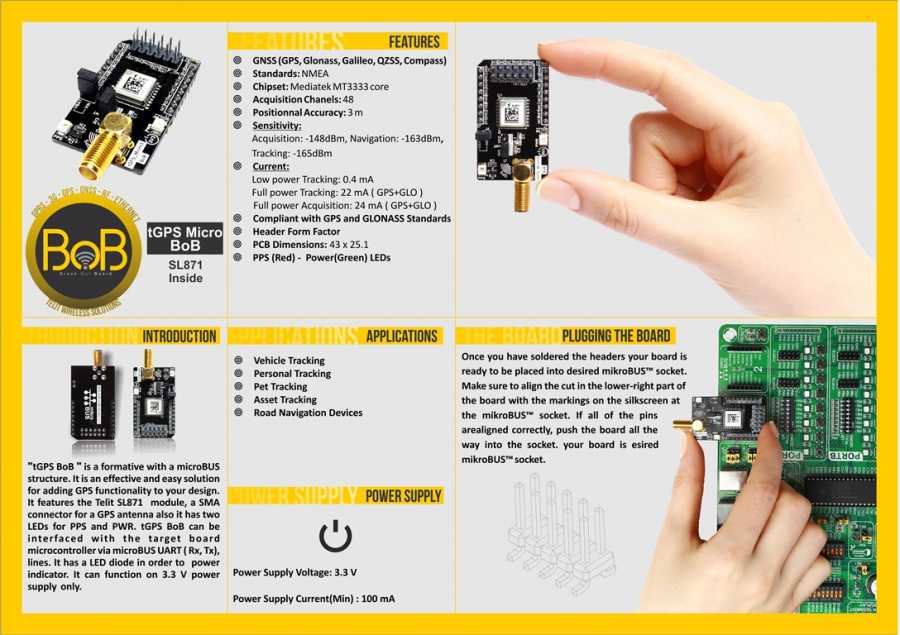

  • " tGPS BoB " is a formative with a microBUS structure. It is an effective and easy solution for adding GPS functionality to your design. It features the Telit SL871  module, a SMA connector for a GPS antenna also it has two LEDs for PPS and PWR. tGPS BoB can be interfaced with the target board microcontroller via microBUS UART ( Rx, Tx),  lines. It has a LED diode in order to  power indicator. It can function on 3.3 V power supply  only.
    • GNSS (GPS, Glonass, Galileo, QZSS, Compass)
    • Standards: NMEA
    • Chipset: Mediatek MT3333 core
    • Acquisition Chanels: 48
    • Positionnal Accuracy: 3 m
    • Sensitivity:  Acquisition: -148dBm, Navigation: -163dBm, Tracking: -165dBm
    • Current:
            Low power Tracking: 0.4 mA
            Full power Tracking: 22 mA ( GPS+GLO )
            Full power Acquisition: 24 mA ( GPS+GLO )
    • Compliant with GPS and GLONASS Standards
    • Header Form Factor

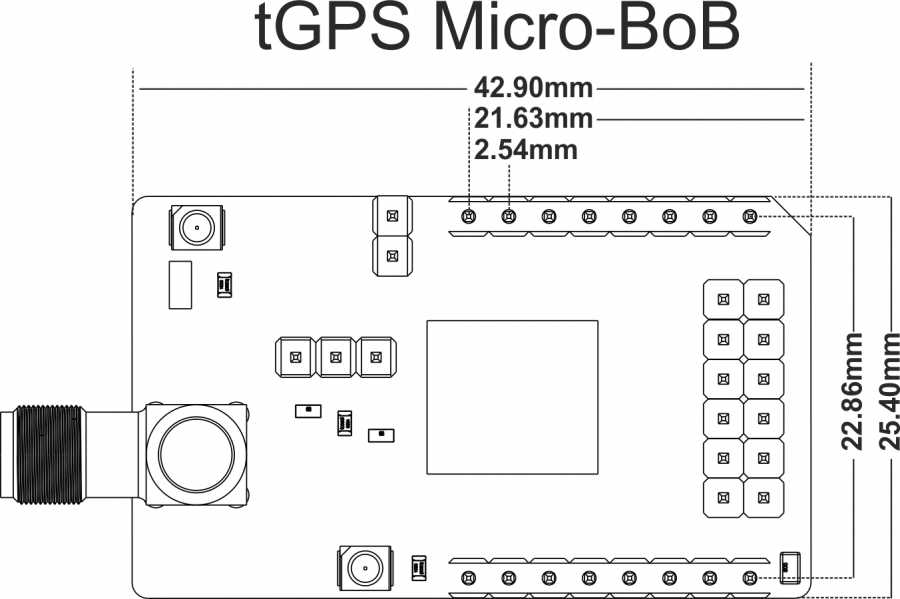

    • PCB Dimensions: 43 x 25.1
    • PPS (Red) -  Power(Green) LEDs

  • DATASHEET
