30dBm. - 425~450.5MHz 3000m. RS232/RS485
2.474,19
TL
+
KDV
Stok Durumu:
Var(2
Adet)
[Frequency] : 425~450.5MHz
[Power] : 30dBm
[Distance] : 3.0km
[Interface] : RS232/RS485
[Weight] : 130±5g

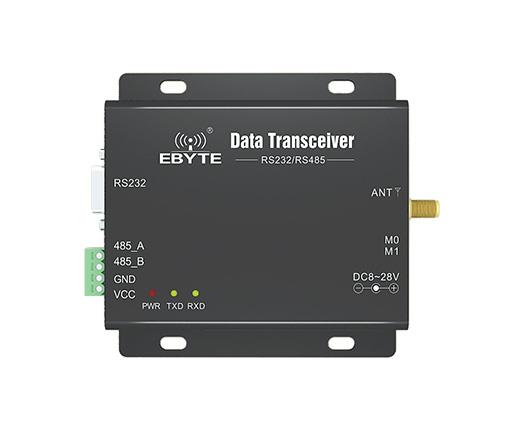

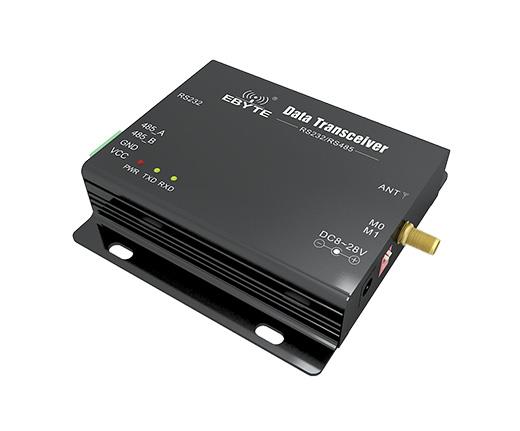

[Introduction] : E90-DTU is a wireless data transceiver with the function of digital data processing,digital modulation and demodulation,FEC,balanced soft decision,etc.It provides transparent RS232/RS485 interface,different with the analog FM transceiver plus MODEM analog digital transceiver.
| RF Parameter | Value | Remark | |||
| Working frequency | 425~450.5 MHz | Default: 433MHz | |||
| Transmitting power | 30 dBm | About 1W | |||
| Air data rate | N/A | Self-adapted baud rate | |||
| Test distance | 3000 meter | In open and clear air, with maximum power, 5dBi antenna gain, height of 2m. | |||
| Hardware Parameter | Value | Remark | |||
| Size | 82 * 62 * 25 mm | Without SMA-K | |||
| Antenna type | SMA-K | ||||
| Communication interface | RS232 / RS485 | Standard DB9 Hole/3.81 connecting terminal | |||
| Baud rate | 9600 | Baud rate: 1200~115200 | |||
| Buffer | Unlimited data input (baud rate≤57600) | Continuous transmission, no sub-package | |||
| Electronic parameter | Min. | Typ. | Max. | Unit | Condition |
| Power supply | 8 | 12 | 28 | V | |
| Transmitting current | 277 | 308 | 310 | mA | 30dBm(1W) |
| Stand-by current | 21 | 23 | 25 | mA | |
| Operating temperature | -40 | 20 | 85 | ℃ | |
| Operating humidity | 10 | 60 | 90 | % | |
| Storage temperature | -40 | 20 | 125 | ℃ |



| Ürün Filtreleri | ||
|---|---|---|
| Barkod | : | 8690000021383 |
| Tedarikçi Ürün Kodu | : | E90-DTU-433C30 |
