EBYTE

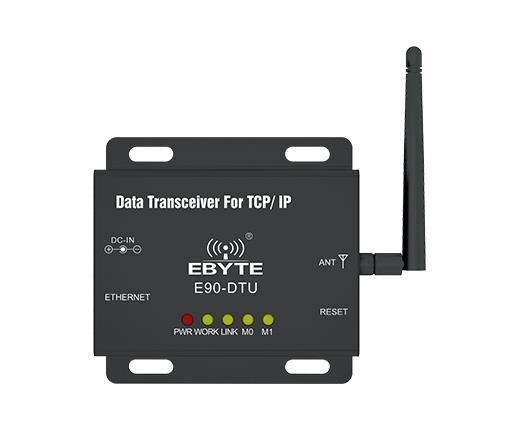

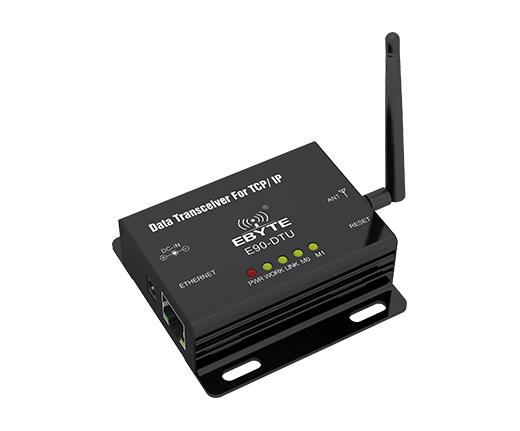

Ethernet Modem. 30dBm. - 425~450.5MHz 3000m.

Ürün Kodu : E90-DTU-433C30E
Yorumlar
2.023,43 TL + KDV
Stok Durumu:
Var (3 Adet)
Not
:
Aynı Gün Kargo 15’e kadar aynı gün kargo
Worldwide Shipment
Next Day Shipment
Kampanya

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • İade ve Teslimat
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Beni Ara
  • Ek
  • [Frequency] : 425~450.5MHz

    [Power] : 30dBm

    [Distance] : 3km

    [Size] : 66*66*21mm

    [Interface] : Ethernet

    [Weight] : 78±5g

    [Introduction] : A small, powerful wireless digital data-Ethernet transceiver with the function of long range, digital data processing, digital modulation and demodulation, FEC, balanced soft decision, etc. It carries a M0+ series 32 bit processor. It has adaptive network rate and TCP Server, TCP Client, UDP Server,UDP Client.



    RF Parameter Value Remark
    Working frequency 425~450.5 MHz Default: 433MHz
    Transmitting power 21~30 dBm Default: 30dBm(About 1W)
    Air data rate 1.2kbps ~ 70kbps Default: 1.2kbps
    Test distance 3000 meter
    Hardware Parameter Value Remark
    Size 66 * 66 * 21 mm
    Antenna type SMA-K
    Communication interface Ethernet -
    Baud rate  Default: 9600 Baud rate: 1200~115200
    Buffer 512 bytes buffer Limitless package length, no sub-package
    Electronic parameter Min. Typ. Max. Unit Condition
    Power supply 8 12 28 V
    Transmitting current 279 310 361 mA 30dBm(1W)
    stand-by current 18 20 22 mA
    Operating temperature   -40 20 85
    Operating humidity 10 60 90 %
    Storage temperature -40 20 125
