SIMCOM

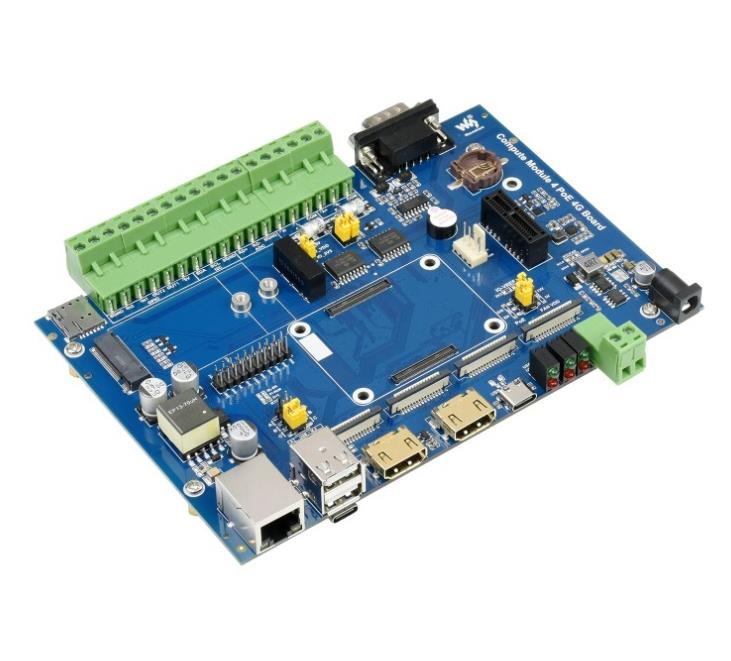

Compute Module 4 Industrial IoT Base Board, for all Variants of CM4

Ürün Kodu : LTE-WS20535
Yorumlar
6.926,90 TL + KDV
Stok Durumu:
Var (1 Adet)

Not
:
Aynı Gün Kargo 12.30’a kadar aynı gün kargo
Worldwide Shipment
Next Day Shipment
Kampanya

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • İade ve Teslimat
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Beni Ara
  • Ek
  • Compute Module 4 Industrial IoT Base Board, for all Variants of Raspberry Pi CM4
    CM4 Industrial IoT Base Board

    global 5G/4G/3G/2G cellular network support*, PoE Ethernet, Industrial control

    Ideal for sorts of industrial IoT applications


    * a separate communication module is required to support the global 5G/4G/3G/2G cellular network, this 5G module is recommended.
    Part list comparison
      Raw base board mini-computer kit mini-computer kit + 4G Module
    CM4 Industrial IoT Board √ √ √
    Metal case √ √
    5000rpm cooling fan √ √
    12V 2A power adapter √ √
    Screwdriver and screws √ √
    4G module   √
    Antenna   √
    Antenna cable   √

    Features at a glance

    The Compute Module 4 PoE 4G Board is an industrial grade IoT base board designed for Raspberry Pi Compute Module 4 (not included). It features communication functions including global 5G/4G/3G/2G cellular network, and PoE Ethernet. There are also various industrial isolated interfaces such as CAN, RS485, RS232, ADC, and GPIO, which make it an ideal choice for sorts of industrial IoT applications. Compared with the CM3 version, this one will provide more powerful processing performance.

    • Compatible with Raspberry Pi Compute module 4 all variants
    • M.2 slot for connecting separate communication module, global 5G/4G/3G/2G cellular network support
    • 10/100M/1000M auto-negotiation Ethernet port, with PoE enabled
    • USB HUB, allows connecting more USB devices
    • USB TO UART, for serial debugging
    • Provides various industrial isolated interfaces: CAN, RS485, RS232, ADC, GPIO, RTC
    • Multiple video-related ports like HDMI, DSI, CSI
    • LED indicators for monitoring operating status
    Specifications
    CM4 socket suitable for all variants of Compute Module 4
    Networking Gigabit Ethernet RJ45 connector, integrates 802.3af-compliant PoE circuit (5V/2.5A)
    M.2 B KEY, supports 5G / 4G module
    SIM card slot, supports nano SIM card for 4G/3G/2G communication
    Connector Isolated RS485, Isolated RS232, PCIe Gen 2 x1, I2C, ADC, GPIO
    USB Dual USB 2.0 Type A
    Display Dual MIPI DSI display ports (15pin 1.0mm FPC connector)
    Camera Dual MIPI CSI-2 camera ports (15pin 1.0mm FPC connector)
    Video Dual HDMI ports, supports 4K 30fps output
    RTC Real-time clock with battery socket and ability to wake Compute Module 4
    Storage MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
    Fan header allows speed adjustment and measurement, 5V / 12V input
    Power input 7V~36V wide range
    Dimensions 160 × 114mm
    Connecting With Compute Module 4

    Standard CM4 Socket, Suitable For All Variants Of Compute Module 4

    for reference ONLY, Compute Module 4 and 4G module are NOT included.
    More Rich interfaces

    various interfaces including: M.2/CSI/DSI/HDMI/USB/ETH/PCIe/RS232/RS485

    Application examples

    suitable for Raspberry Pi applications where multiple peripherals are required
    or other industrial context

    for reference ONLY, Compute Module 4, displays and cameras are NOT included.

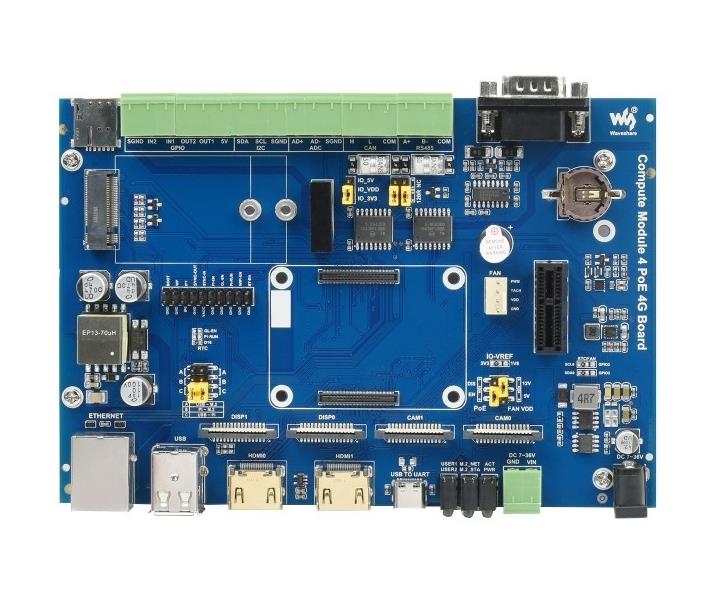

    What's on board
    1. Compute Module 4 socket
      for connecting Raspberry Pi Compute Module 4
    2. Power input
      7-36V wide range power supply
    3. CM4 status indicator
      red: Raspberry Pi power indicator
      green: Raspberry Pi operating status indicator
    4. M.2 status indicator
      red: enabled indicator
      green: operating status indicator
    5. User LED
      handy for I/O output testing, or program running status monitoring
    6. USB TO UART
      for serial debugging
    7. HDMI
      dual HDMI ports, supports dual 4K 30fps output
    8. USB 2.0
      dual USB 2.0 ports, for connecting USB devices
    9. RJ45 Gigabit Ethernet
      10/100/1000M auto-negotiation Gigabit Ethernet port, with PoE Power Over Ethernet features
    10. M.2 slot
      for connecting 5G/4G communication module
    11. SIM card slot
      supports nano SIM card for 4G/3G/2G communication

    1. RTC real time clock battery holder
      supports CR1220 button cell
    2. PCIe Gen 2 × 1 socket
    3. Fan header
      for connecting cooling fan, allows speed adjustment and measurement
    4. Buzzer
    5. DISP
      dual MIPI DSI display ports
    6. CAM
      dual MIPI CSI camera ports
    7. Isolated GPIO
      allows controlling / detecting devices via GPIO
    8. Isolated I2C
      allows controlling / reading devices via I2C
    9. Isolated ADC
      ADC differential input
    10. Isolated CAN interface
    11. Isolated RS485 interface
    12. Isolated RS232 interface

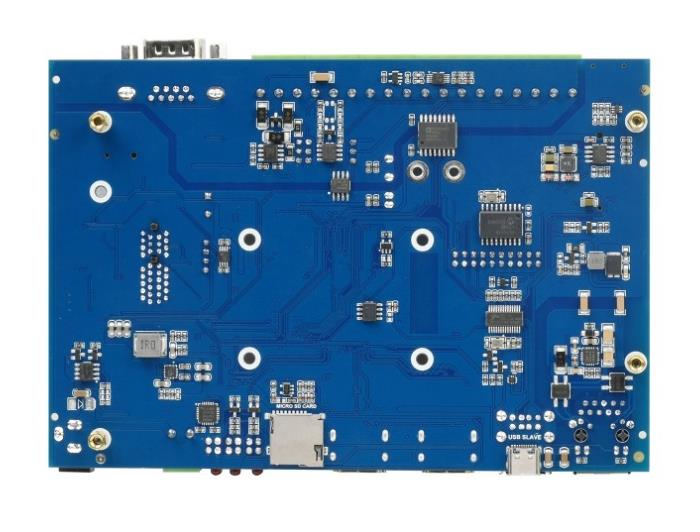

    1. Micro SD card slot (bottom side)
      insert a Micro SD card with pre-burnt system, to start up Compute Module 4 Lite

    1. USB-C programming port (bottom side)
      allows burning system image into Compute Module 4 eMMC variants
    Outline dimensions
