Raspberry Pi Compute Module 4, The power of Raspberry Pi 4 in a compact form factor, options for RAM / eMMC/ wireless CM4001008

Wireless: NO

RAM:1GB

eMMC: 8 GB

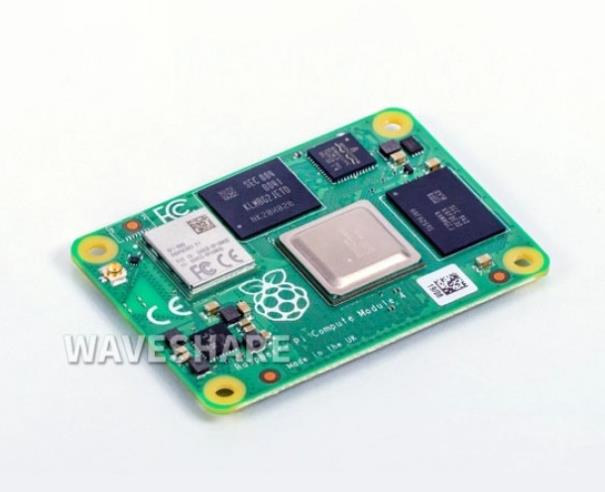

Raspberry Pi Compute Module 4

High speed, large RAM, low power, boosted performance

Raspberry Pi Compute Module 4 harnesses the compute power of the popular Raspberry Pi 4 Model B, bringing it to a smaller form factor suitable for integration into products.

Raspberry Pi Compute Module 4 incorporates a quad-core ARM Cortex-A72 processor, dual video output, and a wide selection of other interfaces. Available in 32 variants, with a range of RAM and eMMC Flash options, and with or without wireless connectivity.

Completely upgraded, more powerful

Upgraded processor BCM2711, quad-core Cortex-A72 (ARM v8) 64-bit SoC, more powerful performance
More options for RAM (1GB/2GB/4GB/8GB), competent for large-scale data compilation
Faster eMMC Flash storage, up to 100 MBytes/s data rate, which is four times faster than the CM3+
Option for fully certified radio module, the same one used on Pi4B, supports either PCB trace antenna or external antenna, more suitable for industrial applications
Adopts B to B connectors, more stable than the Goldfinger edge connector of previous generations
Onboard new Gigabit Ethernet PHY supporting IEEE1588, suitable for network applications
Onboard new PCIe Gen 2 x1 interface, allows connecting more useful modules

Specifications

Processor	Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
Memory	1GB, 2GB, 4GB or 8GB LPDDR4 (depending on variant)
Storage	0GB (Lite), 8GB, 16GB or 32GB eMMC Flash (depending on variant)
Connectivity	Optional wireless LAN, 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac wireless, Bluetooth 5.0, BLE with onboard and external antenna options
	Onboard Gigabit Ethernet PHY supporting IEEE1588
	1 × USB 2.0 interface
	PCIe Gen 2 x1 interface
	28 GPIO signals
	SD card interface for SD card (for use only with Compute Module 4 variants without eMMC)
Video	Dual HDMI interface (up to 4Kp60 supported)
	2-lane MIPI DSI display interface
	2-lane MIPI CSI camera interface
	4-lane MIPI DSI display interface
	4-lane MIPI CSI camera interface
Multimedia	H.265 (4Kp60 decode); H.264 (1080p60 decode, 1080p30 encode); OpenGL ES 3.0 graphics
Input power	5V DC
Operating voltage	-20°C ~ 85°C ambient
Dimensions	55 × 40 × 4.7mm

Available options

Upgraded processor, powerful performance

BCM2711 processor, quad-core Cortex-A72 64-bit SoC, more powerful performance

High speed WiFi and Bluetooth

Dual-band WiFi and Bluetooth5.0 BLE raido module, surf the web anywhere

External antenna support

supports either PCB trace antenna or external antenna, suitable for industrial applications

Onboard Resources
