D23-LB -- LoRaWAN Waterproof /Outdoor Temperature Sensor - 1D23-LB -- LoRaWAN Waterproof /Outdoor Temperature Sensor - 2
DRAGINO

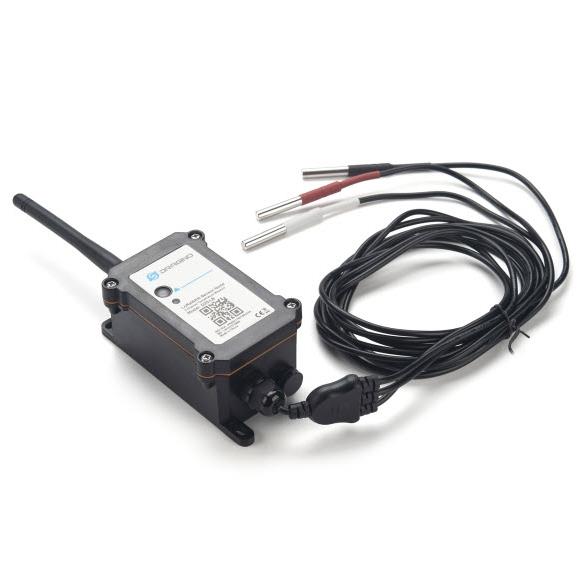

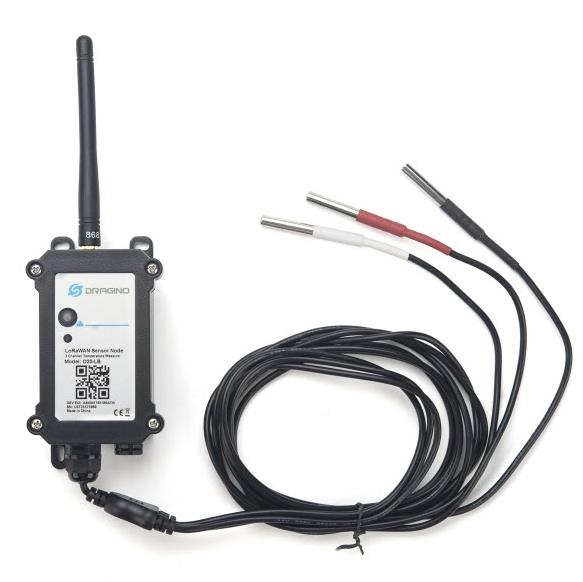

D23-LB -- LoRaWAN Waterproof /Outdoor Temperature Sensor

Ürün Kodu : D23-LB
Yorumlar
Paylaş:
Fiyat Alarmı
6.564,17 TL + KDV
Alışveriş Listeme Ekle

The Dragino D23-LB/LS is a LoRaWAN Temperature Sensor for Internet of Things solution. D23-LB/LS will convert the Temperature reading to LoRaWAN wireless data and send to IoT platform via LoRaWAN gateway.

The LoRa wireless technology used in D23-LB/LS allows device to send data and reach extremely long ranges at low data-rates. It provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.

The temperature sensor used in D23-LB/LS can measure -55°C ~ 125°C with accuracy ±0.5°C (max ±2.0 °C).

D23-LB/LS supports temperature alarm feature, user can set temperature alarm for instant notice. D23-LB/LS supports Datalog feature, it can save the data when there is no LoRaWAN network and uplink when network recover.

D23-LB/LS supports BLE configure and wireless OTA update which make user easy to use.

D23-LB/LS is powered by 8500mAh Li-SOCI2 battery or solar powered + Li-ion battery it is designed for long term use up to 5 years.

Each D23-LB/LS is pre-load with a set of unique keys for LoRaWAN registrations, register these keys to local LoRaWAN server and it will auto connect after power on.



Common DC Characteristics:

  • Supply Voltage: Built-in Battery , 2.5v ~ 3.6v
  • Operating Temperature: -40 ~ 85°C

Temperature Sensor:

  • Dallas DS18B20
  • Range: -55 to + 125°C
  • Accuracy ±0.5°C (max ±2.0 °C).

LoRa Spec:

  • Frequency Range,  Band 1 (HF): 862 ~ 1020 Mhz
  • Max +22 dBm constant RF output vs.
  • RX sensitivity: down to -139 dBm.
  • Excellent blocking immunity

Battery:

  • Li/SOCI2 un-chargeable battery
  • Capacity: 8500mAh
  • Self-Discharge: <1% / Year @ 25°C
  • Max continuously current: 130mA
  • Max boost current: 2A, 1 second

Power Consumption

  • Sleep Mode: 5uA @ 3.3v
  • LoRa Transmit Mode: 125mA @ 20dBm, 82mA @ 14dBm
