LoRaWAN CO2 Sensor

Ürün Kodu : AQS01-L
Yorumlar
Paylaş:
Fiyat Alarmı
3.282,08 TL + KDV
Alışveriş Listeme Ekle

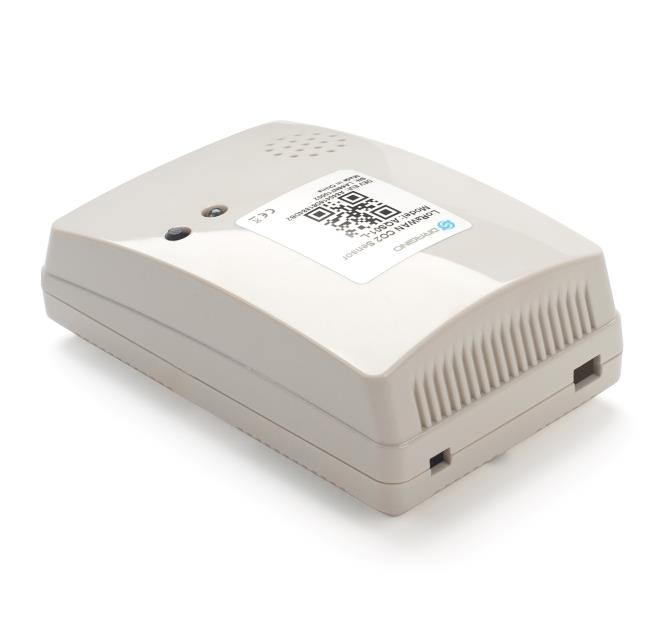

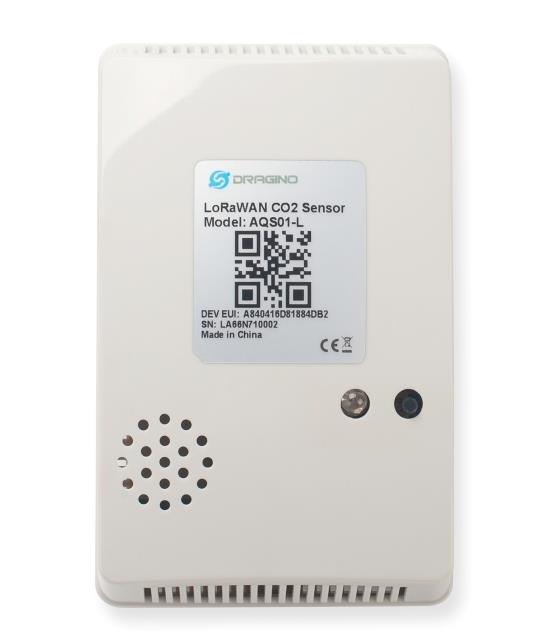

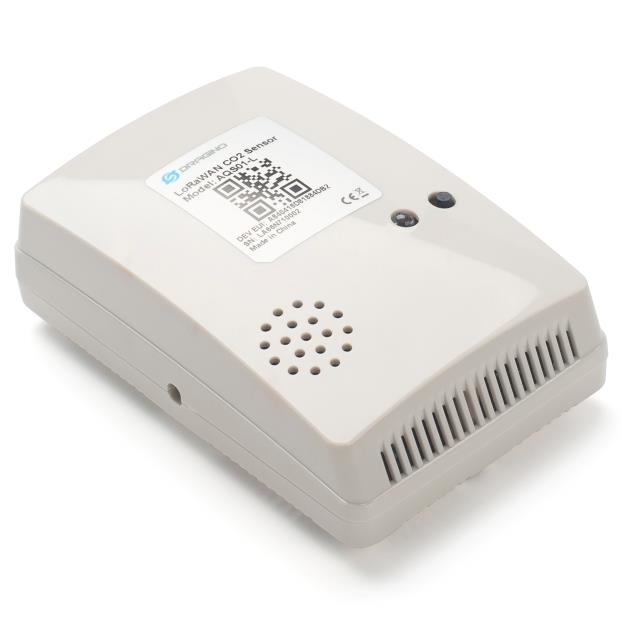

The Dragino AQS01-L is an Indoor LoRaWAN Air Quality Sensor for the Internet of Things solution. It is designed to measure the surrounding environment parameters include: CO2, Temperature , Relative Air Humidity and Air pressure, and then upload to IoT server via LoRaWAN wireless protocol.

AQS01-L is powered by a ER18505 4000mAh battery. The battery can last more than 2 years and is easy to change.

AQS01-L supports BLE configure and wireless OTA update which make user easy to use.

AQS01-L supports CO2 Alarm and Temperature Alarm* features, users can get an alarm for instant notice.

AQS01-L supports Datalog feature, User can retrieve the sensor data from LoRaWAN commands.

Note*: CO2 Alarm and temperature Alarm will decrease a lot the battery life.

Features:

  • LoRaWAN 1.0.3 Class A
  • Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915/IN865
  • Monitor CO2/Temperature/Relative Humidity/Pressure
  • Support CO2 alarm
  • Support Datalog Feature
  • Support Bluetooth v5.1 and LoRaWAN remote configure
  • Support wireless OTA update firmware
  • Uplink on periodically
  • Downlink to change configure
  • 4000mAh batteries powered
  • specifications:

    Common DC Characteristics:

    • Supply Voltage: built in 4000mAh Li-SOCI2 battery , 2.5v ~ 3.6v
    • Operating Temperature: -20 ~ 65°C

    CO2 Sensor:

    • Target gas: Carbon dioxide(CO2)
    • Operating principle: Non-dispersiveinfrared(NDIR)
    • Operating range: 0-50°C, 0-85% RH(non-condensing)
    • Measurement range: 400ppm to 5000 ppm (extended range up to 10000 ppm )
    • Accuracy: Typ ±(50 ppm +3% of reading)
    • Pressure Compensation

    Temperature Sensor:

    • Range: -20 ~ 65 °C
    • Accuracy: Typ ±1.0@ 0-65 °C
    • Resolution: 0.01°C

    Humidity Sensor:

    • Range: 0 ~ 99.9% RH
    • Accurancy: ± 3%RH (20 ~ 80%RH)
    • Resolution: 0.008% RH
    • Long term stability: 0.5 %RH/yr

    Air Pressure:

    • Range: 300~1100hPa
    • Accuracy: ± 1.0 hPa (0-65 °C)
    • Resolution: 0.18Pa
    • Long term stability: ±1.0 hPa/yr
