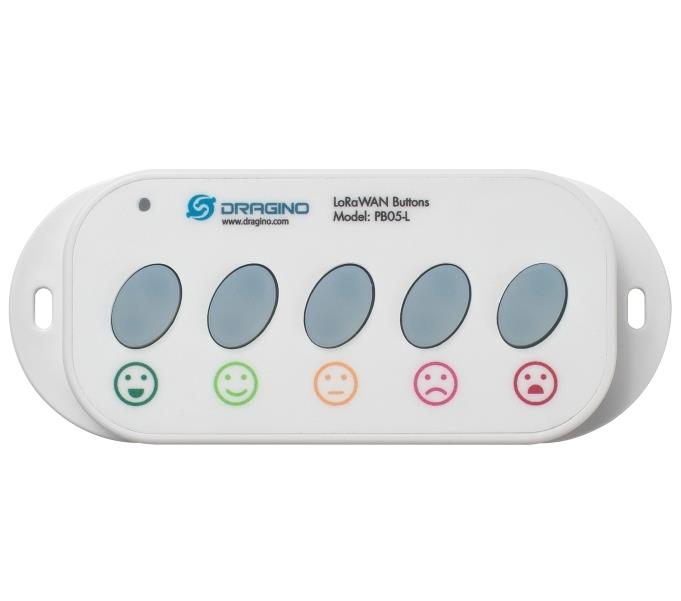

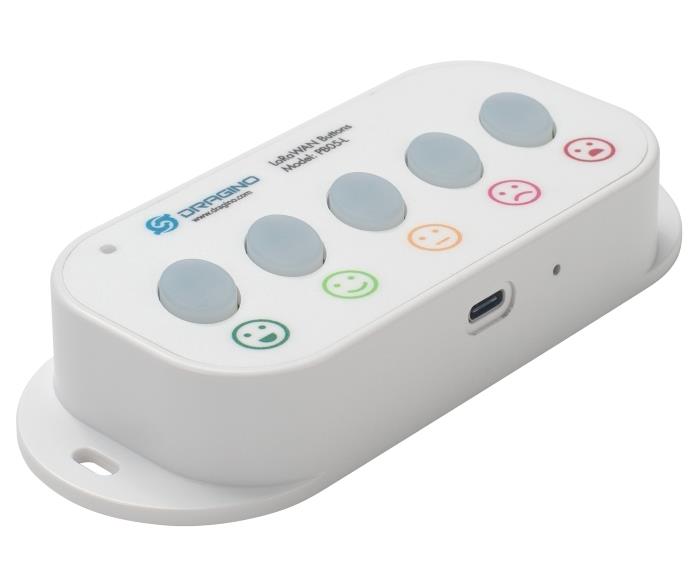

PB05-L LoRaWAN Push Button is a LoRaWAN wireless device with Five push buttons. Once the user presses the button, the PB05-L will transmit the signal to IoT server via Long Range LoRaWAN wireless protocol.
PB05-L is shipped with a default PVC stick with satisifed icons.The sticker is not attached to the design for easy customized purpose.User can design customized PVC sticker and change the panel design.

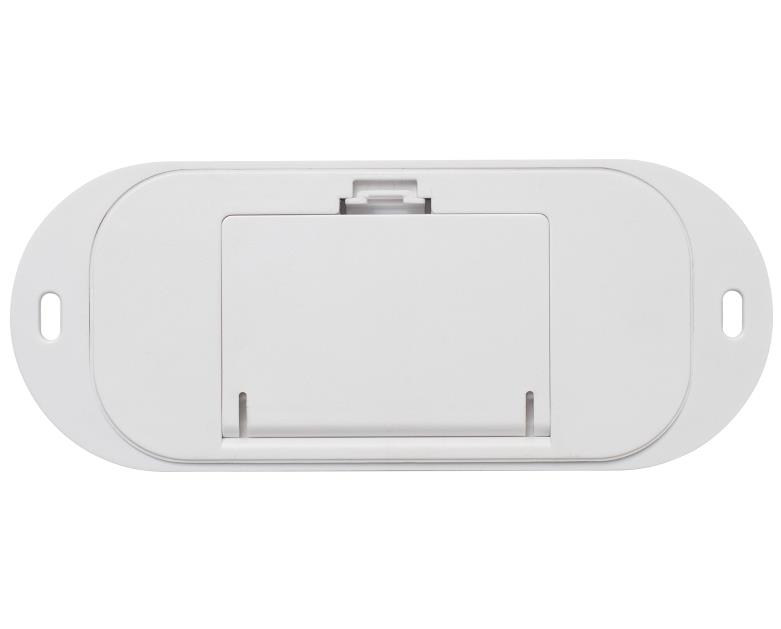

PB05-L supports 2 x AA batteries and and can up to about 30k pushes(Key1~Key5). User can replace the batteries easily after they are fnished.
PB05-L has a built-in speaker, it can pronouns different sound when press button and get reply from server. The speaker can by disable if user want it.
PB05-L is fully compatible with LoRaWAN v1.0.3 protocol, it can work with standard LoRaWAN gateway.
Features:
- Wall Attachable.
- LoRaWAN v1.0.3 Class A protocol.
- 5 x push buttons
- Built-in speaker
- Frequency Bands: CN470/EU433/KR920/US915/EU868/AS923/AU915
- AT Commands to change parameters
- Remote configure parameters via LoRaWAN Downlink
- Firmware upgradable via program port
- Support 2 x AA LR6 batteries.
- IP Rating: IP20
Applications:
- Smart Bulidings
- Logistics and Supply Chain Management
- Smart Factory
- Smart City
specifications:
-
Power Consumption:
- Idle: 5uA, Transmit: max 110mA
Storage&Operation Temperature:
- -10 ~ 50 °C or -40 ~ 60 °C
