| Center Frequency | : | 1575.42±1MHz |
| Band Width | : | CF±5MHz |
| Polarization | : | RHCP |
| Gain | : | 5dBic(Zenith) |
| V.S.W.R | : | <1.5 |
| Impendance | : | 50Ω |
| Axial Ratio | : | 3dB(max) |

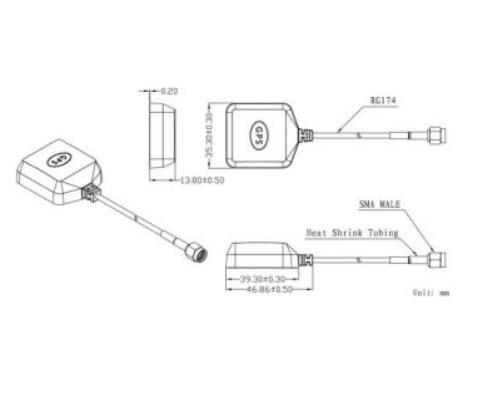

| Dimension | : | 39*49*15mm |
| Gain | : | 28±2dB |
| Noise Figure | : | <1.5 |
| Filter Insertion Loss | : | <3dB |
| Ex-band Attenuation | : | 12dB@CF+50MHz/16dB@CF-50MHz |
| Supply Voltage | : | 2.2~5V DC |
| Current Consumption | : | 5~15mA |
| V.S.W.R | : | <2.0 |
| Cable | : | RG174 / 3m |

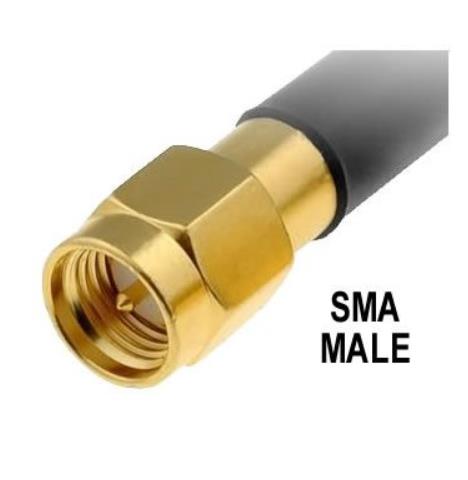

| Connector | : | SMA/MCX/FAKRA or others |
| Radome Material | : | ABS |
| Mounting Method | : | Magnet/Adhesive |
| Operating Temperature | : | -40℃~+85℃ |
| Relative Humidity | : | Up to 95% |
| Ingress Protection | : | IP65~IP67 |
| Vibration | : | 10 to 55Hz with 1.5mm amplitude 2hours |
| Environmentally Friendly | : | ROHS Compliant |
| Ürün Filtreleri | ||
|---|---|---|
| Tedarikçi Ürün Kodu | : | LTE-A-004 |
