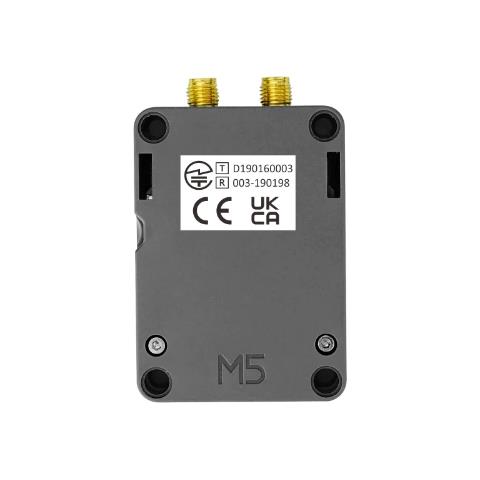

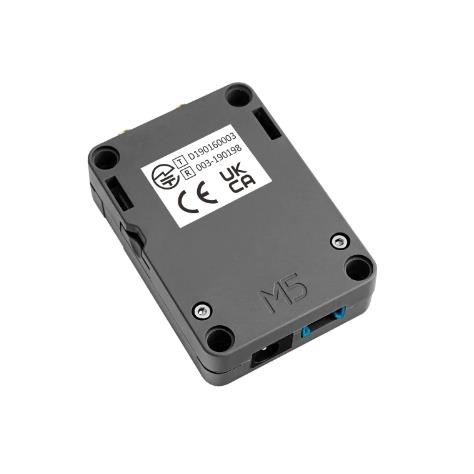

SIM7080G CAT-M/NB-IoT + GNSS Unit with TelecAntenna

PRODUCT DETAILS

Description

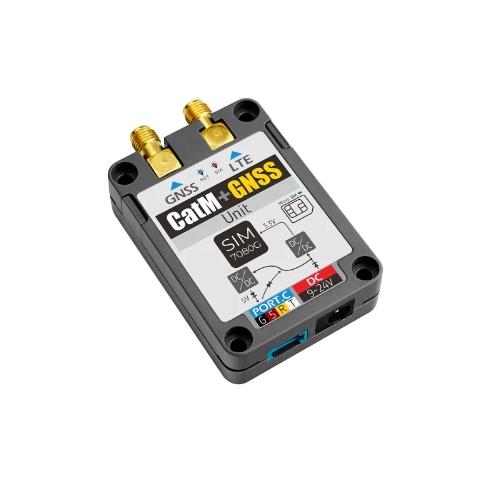

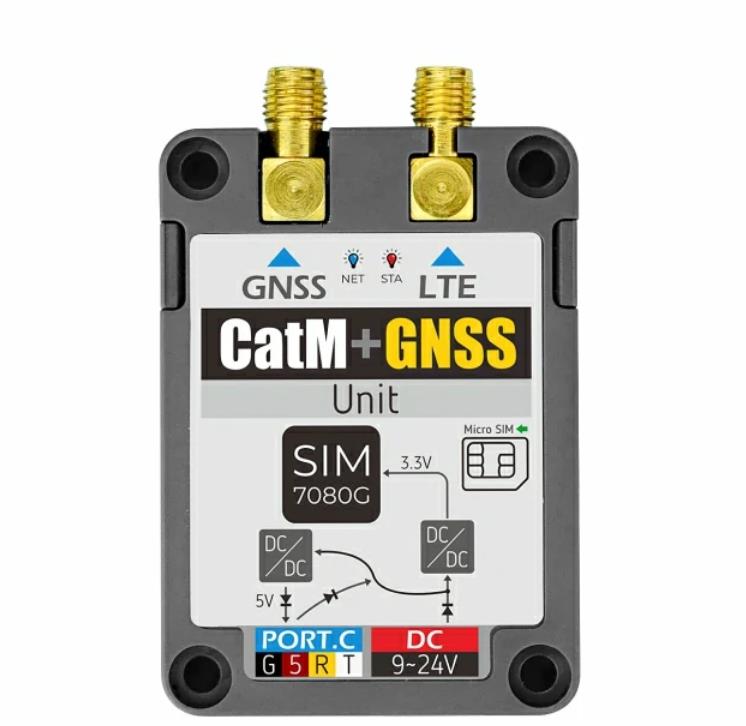

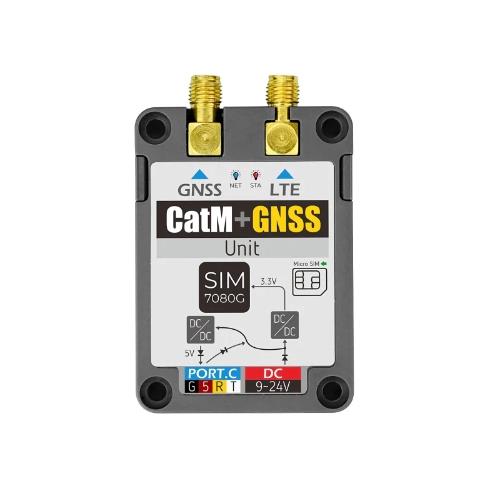

UNIT CatM+GNSS is the global version of CAT-M & NB-IoT dual-mode wireless communication module. The internal 'SIM7080G' module supports both 'CAT-M' and 'NB-IoT' bands worldwide and GNSS. This module adopts serial communication, AT command control and supports multiple communication protocols. Integrated dual SMA external antenna interfaces (LTE+GNSS) to improve the communication quality and signal stability. Well suited for remote control, remote monitoring, and other IoT applications.

Product Features

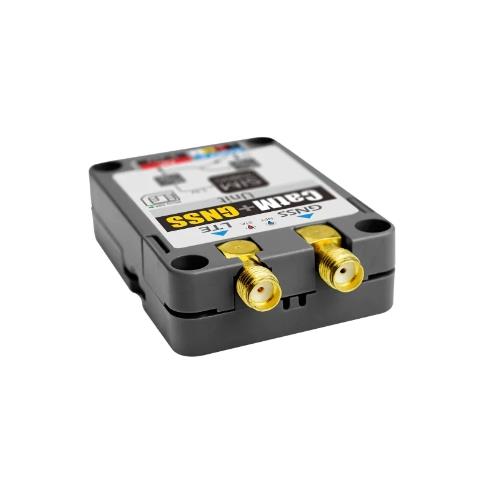

• Integrated Communication+Positioning, Dual SMA antenna interfaces
  • Cat-M & NB-IoT modes with Global Coverage
    • Uplink: & Downlink:
      • Cat-M: Uplink: 1119Kbps Downlink: 589Kbps
      • NB-IoT: Uplink: 150Kbps Downlink: 136Kbps
    • Supported protocols:
      • TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT and others
    • Certifications:
      • Softbank/Telec/RoHS/REACH/JATE/Docomo/KDDI/RCM/CE(RED)/GCF Deutsche Telekom/FCC/PTCRB/AT&T/Verizon/T-Mobile/US Cellular/IC
  • GNSS: GPS/GLONASS/BeiDou/Galileo
  • MicroSIM card slot

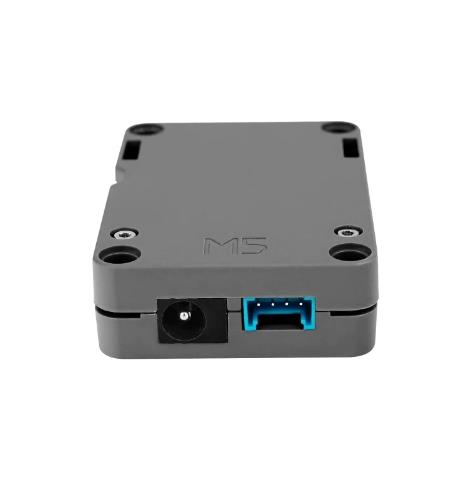

• Two power supply：
  • External DC 9-24V (5.5/2.1mm DC socket) input, built-in DC/DC circuit, to converter 9-24V to 5V
  • External DC 5V power through HY2.0-4P cable
• Communication interface: UART(3.3V TTL), AT Command control
• Supported platform: Arduino IDE, UIFlow
• Reserved 4 installation holes, suitable for multiple installations

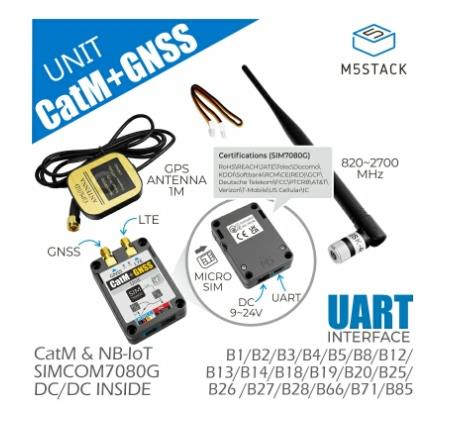

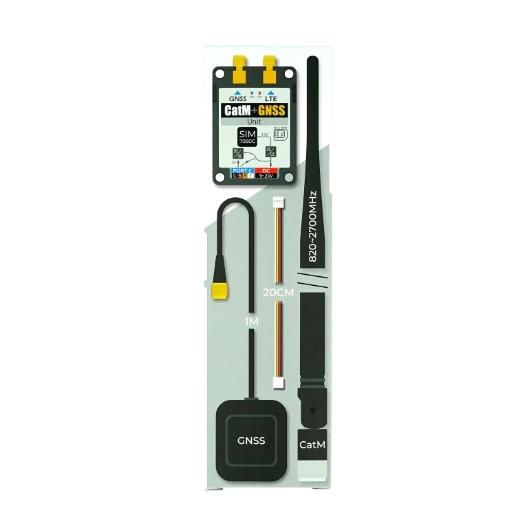

Included

• 1x Unit CatM+GNSS
• 1x 4G Antenna (Telec)
• 1x GPS Antenna
• 1x HY2.0-4P cable (20cm)

Applications

• Remote Control
• Remote Monitor
• AGV
