Wiznet

W7100

Ürün Kodu : W7100
Yorumlar
118,43 TL + KDV
Stok Durumu:
Var (25 Adet)
Not
:
Aynı Gün Kargo 15’e kadar aynı gün kargo
Worldwide Shipment
Next Day Shipment
Kampanya

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • İade ve Teslimat
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Döküman
  • Beni Ara
  • Ek
  • Overview

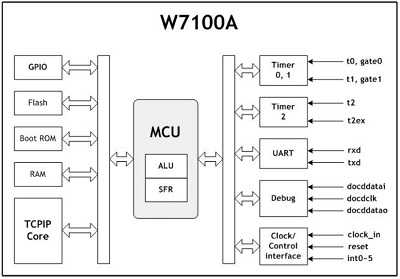

    iMCU W7100A is the one-chip solution which integrates an 8051 compatible micro-controller, 64KB SRAM and hardwired TCP/IP core for high performance and easy development. The TCP/IP core is a market-proven hardwired TCP/IP stack with an integrated Ethernet MAC & PHY. The Hardwired TCP/IP stack supports the TCP, UDP, IPv4, ICMP, ARP, IGMP and PPPoE which has been used in various applications for years.


    Key Features
    • Industrial standard 8051
    • Pipelined architecture 4~5 times faster than other 8051
    • 2 data pointers for fast memory block processing
    • 64KByte Flash, 64Kbyte SRAM, 2Kbyte Boot ROM, 255Byte Data Flash
    • External 11.0592MHz operation frequency for internal PLL logic
    • Interrupt Controller : 2 priority levels / 4 external interrupt sources / 1 watchdog interrupt
    • Four 8 bit I/O ports
    • Three timers/counters
    • Full Duplex UART
    • Programmable Watchdog Timer
    • Hardwired TCP/IP protocols
    • TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE
    • Un-attackable hardware network engine for preventing network attacks such as flooding, spoofing, injection
    • 8 Independent hardware socket
    • Internal 32Kbytes memory for TCP/IP packet processing
    • 10BaseT / 100Base TX Ethernet PHY Embedded
    • Support Auto-Negotiation (Full & Half Duplex, 10 & 100 Based)
    • Support Auto-MDIX
    • 3V Operation with 5V I/O signal tolerance

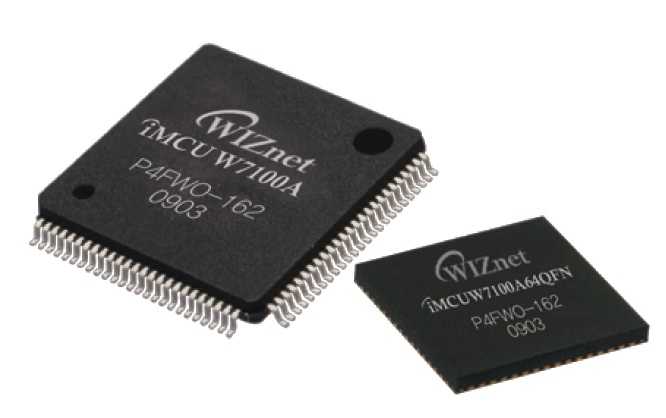

    • 100LQFP (13x13mm), 64QFN (10x10mm) Lead Free Package
