EBYTE

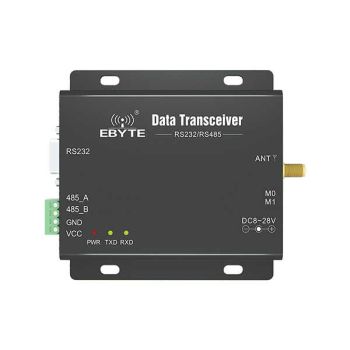

30dBm. 425~450.5MHz. 10000m. RS232/RS485 .Power supply 10~28V
Ürün Kodu
:
E90-DTU-C433-30
Yorumlar

30dBm. 425~450.5MHz. 10000m. RS232/RS485 .Power supply 10~28V
2.423,69
TL
+
KDV
Stok Durumu:
Yok
[Frequency] : 425~450.5MHz
[Power] : 3.0dBm
[Distance] : 10km
[Interface] : RS232/RS485

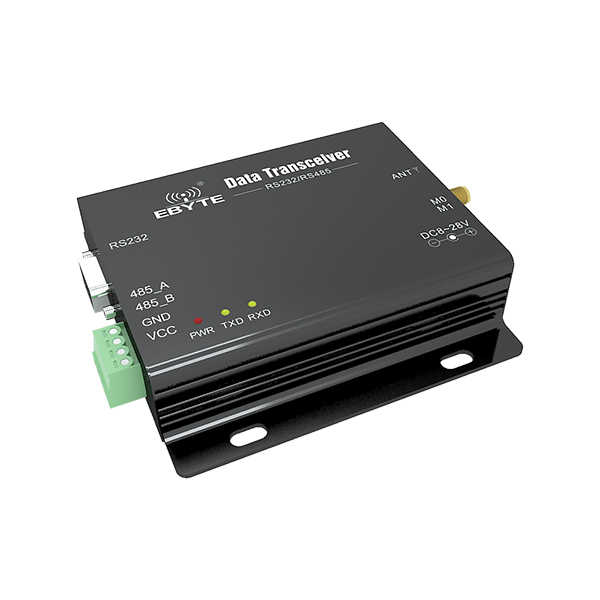

[Introduction] : E90-DTU is a wireless data transceiver with the function of digital data processing,digital modulation and demodulation,FEC,balanced soft decision,etc.It provides transparent RS232/RS485 interface,different with the analog FM transceiver plus MODEM analog digital transceiver.

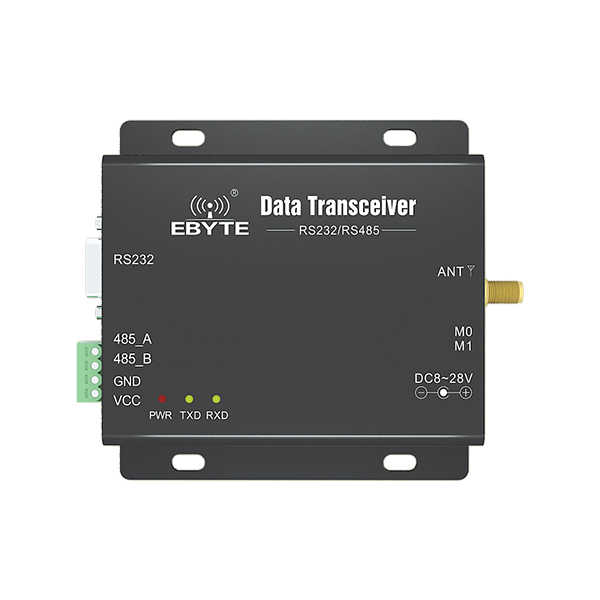

| PinNumber | Name | Function | Description |
| 1 | DB-9 Femal socket | RS-232 interface | Standard RS-232interface |
| 2 | 3.81 connectingterminal | RS-485, powerinterface | Standard RS-485 andscrewing interface |
| 3 | PWR-LED | Power indicator | Red when powered-on |
| 4 | TXD-LED | Transmitting indicator | Yellow, it flasheswhen transmitting data |
| 5 | RXD-LED | Receiving indicator | Yellow, it flasheswhen receiving data |
| 6 | DC power interface | Power interface | Straight hole, outerdiameter:5.5mm, inner diameter:2.5mm |
| 7 | DIP switch | DIP switch | Working mode control |
| 8 | Antenna interface | SMA-K | External thread hole.L: 10mm. 50Ωresistance. |
| RF Parameter | Value | Remark |
| Working frequency | 425~450.5 MHz | Default: 433MHz |
| Transmitting power | 30 dBm | About 1W |
| Air data rate | N/A | Self-adapted baud rate |
| Test distance | 3000 meter | In open and clear air, with maximum power, 5dBi antenna gain, height of 2m. |
| Hardware Parameter | Value | Remark |
| Size | 82 * 62 * 25 mm | Without SMA-K |
| Antenna type | SMA-K | |
| Communication interface | RS232 / RS485 | Standard DB9 Hole/3.81 connecting terminal |
| Baud rate | 9600 | Baud rate: 1200~115200 |
| Buffer | Unlimited data input (baud rate≤57600) | Continuous transmission, no sub-package |
| Electronic parameter |
