EBYTE
30dBm. Ethernet - 410~441MHz. 8000m. RS232/RS485 .Power supply 10~28V
Ürün Kodu
:
E90-DTU-433L30E
Yorumlar

30dBm. Ethernet - 410~441MHz. 8000m. RS232/RS485 .Power supply 10~28V
3.635,54
TL
+
KDV
Stok Durumu:
Yok
[Frequency] : 425~450.5MHz
[Power] : 30dBm
[Distance] : 8.0km
[Interface] : Ethernet
[Weight] : 79±5g

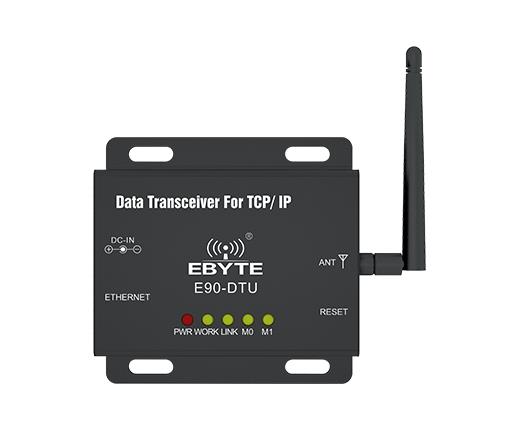

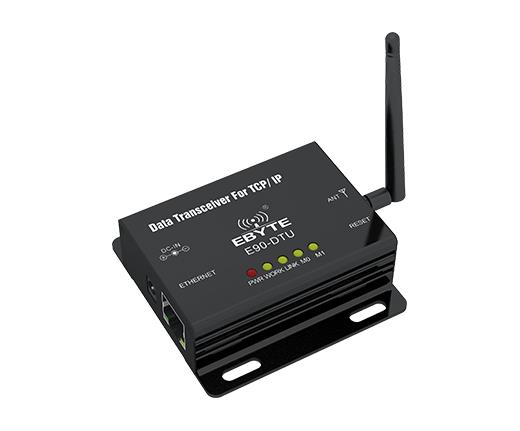

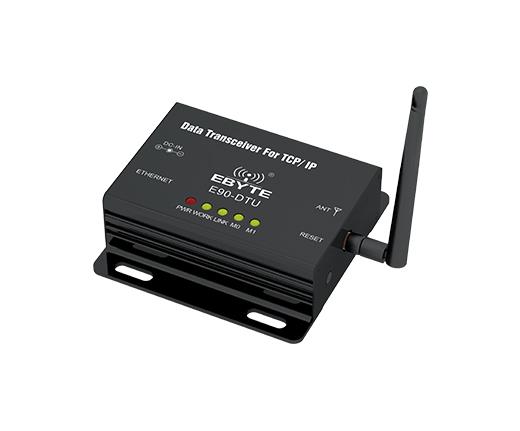

[Introduction] : A small, powerful wireless digital data-Ethernet transceiver with the function of long range, digital data processing, digital modulation and demodulation, FEC, balanced soft decision, etc. It carries a M0+ series 32 bit processor. It has adaptive network rate and TCP Server, TCP Client, UDP Server, UDP Client.
| RF Parameter | Value | Remark | |||
| Working frequency | 410~441 MHz | Default: 433MHz | |||
| Transmitting power | 21~30 dBm | Default: 30dBm(About 1W) | |||
| Air data rate | 0.3kbps ~ 19.2kbps | Default: 2.4kbps | |||
| Test distance | 8000 meter | ||||
| Hardware Parameter | Value | Remark | |||
| Size | 66 * 66 * 21 mm | ||||
| Antenna type | SMA-K | ||||
| Communication interface | Ethernet | - | |||
| Baud rate | Default: 9600 | Baud rate: 1200~115200 | |||
| Buffer | 512 bytes buffer | Automatically sub-packaging with 197 bytes per package | |||
| Electronic parameter | Min. | Typ. | Max. | Unit | Condition |
| Power supply | 8 | 12 | 28 | V | |
| Transmitting current | 297 | 330 | 363 | mA | 30dBm(1W) |
| stand-by current | 18 | 20 | 22 | mA | |
| Operating temperature | -40 | 20 | 85 | ℃ | |
| Operating humidity | 10 | 60 | 90 | % | |
| Storage temperature | -40 | 20 | 125 | ℃ |
