30dBm. SX1276. 410~441MHz. 8000m. RS232/RS485 .Power supply 8~28V - 1

30dBm. SX1276. 410~441MHz. 8000m. RS232/RS485 .Power supply 8~28V - 2

30dBm. SX1276. 410~441MHz. 8000m. RS232/RS485 .Power supply 8~28V

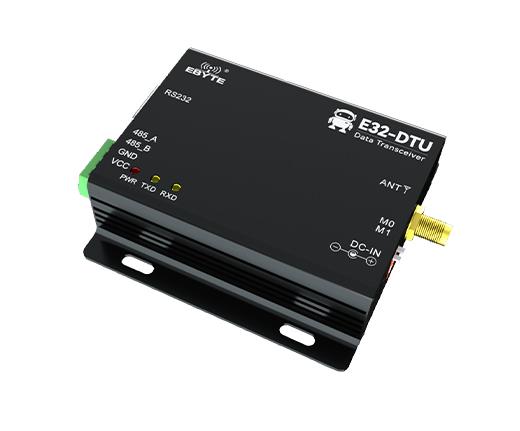

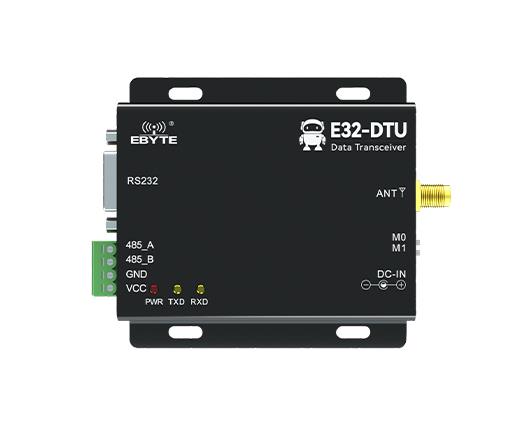

Name: 30dBm. SX1276. 410~441MHz. 8000m. RS232/RS485 .Power supply 8~28V
Brand: EBYTE
SKU: E32-DTU-433L30-V8
Price: 2399.97 TRY
Availability: InStock

Ürün Kodu : E32-DTU-433L30-V8

Yorumlar

Paylaş:

Fiyat Alarmı

2.399,97 TL + KDV

Stok Durumu:

Var(1 Adet)

Alışveriş Listeme Ekle

Not Ekle :

[Operating frequency]：410~441MHz

[Transmit power]：30dBm

[Communication distance]：8km

[Product size]：82*62*25mm

[Interface type]：RS232/RS485

[Net weight of product]：128±5g

[Introduction]：E32-DTU (433L30)-V8 is a high-speed 433M wireless digital radio (with RS232/RS485 interface), LoRa spread spectrum technology, transparent transmission method It works in the 410~441MHz frequency band (default 433MHz), and the operating voltage range is 8V~28V.

RF parameters	parameter value	Remark
Working frequency band	410~441 MHz	factory default 433MHz
Transmit power	30 dBm	Maximum power about 1W
Receive Sensitivity	-147dBm	Airspeed 2.4kbps
Air rate	0.3k~19.2kbps	Factory default 2.4kbps
Measured distance	8 km	clear and open environment, maximum power, antenna gain 5dBi, height 2m, airspeed 2.4kbps

Hardware parameters	parameter value	Remark
Dimensions	826225mm
Antenna form	SMA-K
Communication interface	RS232/RS485	Baud rate supports 1200~115200, the factory default is 9600
Interface	DB-9/Crimping	Standard DB9 Socket/3.81 Terminal
Buffer capacity	512 bytes	58 bytes of internal automatic packet transmission
