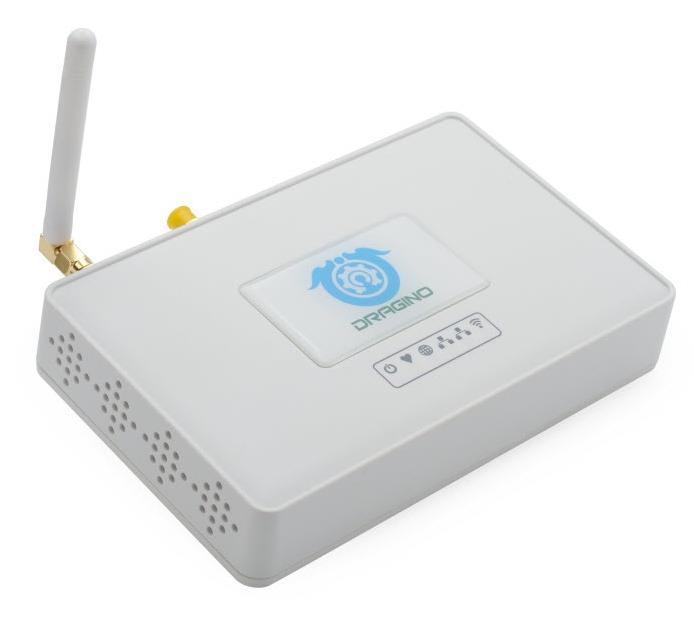

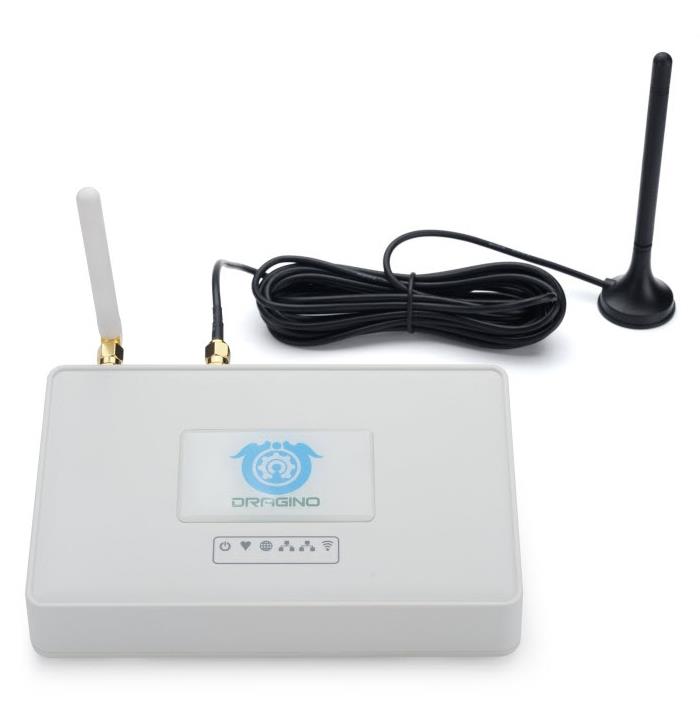

The LG308N is an open source LoRaWAN Pico Gateway. It lets you bridge LoRa wireless network to an IP network via WiFi, Ethernet, 3G or 4G cellular network. The LoRa wireless allows users to send data and reach extremely long ranges at low data-rates.
The LG308N uses Semtech packet forwarder and fully compatible with LoRaWAN protocol. It includes a SX1302 LoRa concentrator, which provides 10 programmable parallel demodulation paths.
LG308N has pre-configured standard LoRaWAN frequency bands to use for different countries. User can also customized the frequency bands to use in their own LoRa network.
LG308N can communicate with ABP LoRaWAN end node without LoRaWAN server. System integrator can use it to integrate with their existing IoT Service without set up own LoRaWAN server or use 3rd party LoRaWAN service.
Dragino LoRa Gateway Selection Guide
Features:
- Open Source Linux system
- Managed by Web GUI, SSH via LAN or WiFi
- Emulates 49x LoRa demodulators
- LoRaWAN Gateway
- 10 programmable parallel demodulation paths
- Remote.it remote management.
Applications:
- Smart Buildings & Home Automation
- Logistics and Supply Chain Management
- Smart Metering
- Smart Agriculture
- Smart Cities
- Smart Factory
Specifications:
Linux Part:
- 400Mhz ar9331 processor
- 64MB RAM
- 16MB Flash

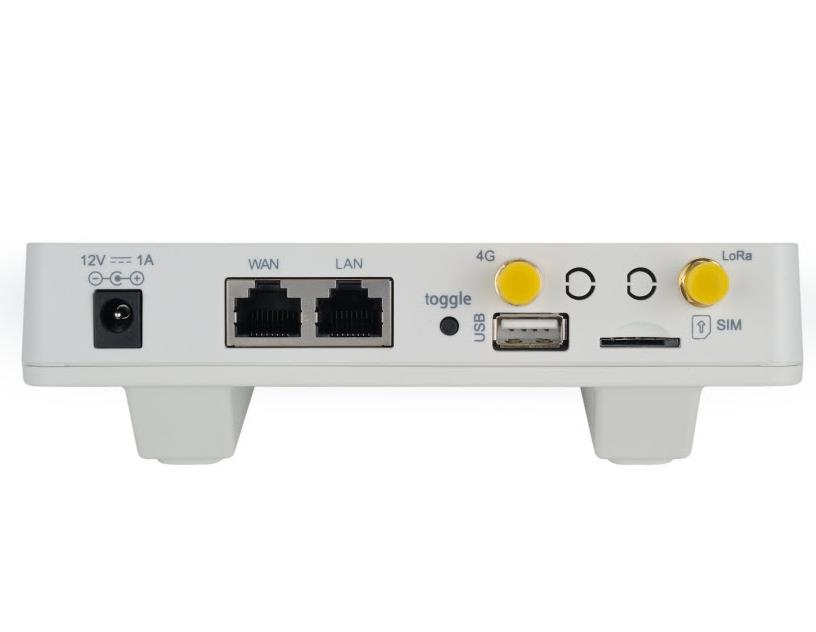

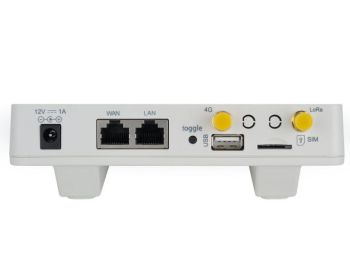

Interface:
- 10M/100M RJ45 Ports x 2
- WiFi : 802.11 b/g/n
- LoRaWAN Wireless
- Power Input: 12V DC, 2 A
- USB 2.0 host connector x 1
- Mini-PCI E connector x 1
- SX1302 + 2 x SX1250
WiFi Spec:
- IEEE 802.11 b/g/n
- Frequency Band: 2.4 ~ 2.462GHz
- Tx power:
-
