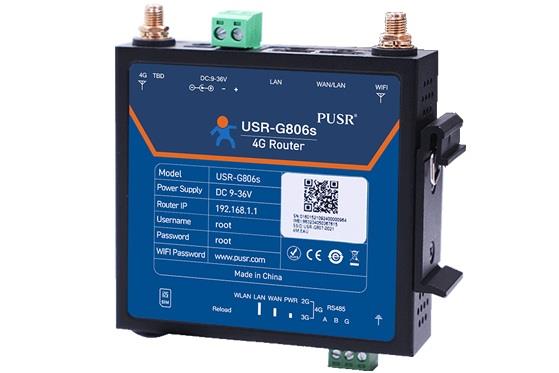

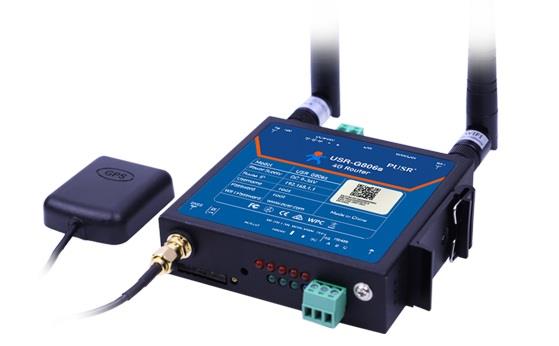

USR-G806s-G | Global Band Industrial
Cellular Network Router with GNSSGlobal Band & GNSS, Industrial Design, Multiple VPNs, Remote ManagementUSR-G806s-G is a global band cellular network router with GNSS function lunched by PUSR, it adopts Qualcomm solution 4G modem which can provide the most stable and flexible wireless network for users over the world, uses can monitor the location information of assets anytime and anywhere. This product comes with rich hardware interfaces including 1*WAN/LAN configurable, 1*LAN, and 1*RS485, which allows the device to realize data transmission of network devices and serial port devices at the same time. This product also integrates a variety of VPN protocols to prevent data from being accessed or tampered and provides high security for data transmission over network.Serial ModemUSR-G806s also integrates with serial modem, which can easily achieve the two-way data transparent transmission between RS485 devices and 4G network. With this device, users can easily send serial data to different servers via TCP/UDP/HTTP. It also supports user-defined register & heartbeat packets to ensure the device online.
USR-G806s-G Specification
Item
Parameters
Value
Power Supply
Power Input
9~36V DC
Working Current
Average 270mA/12V
Power Connector
DC Power Jack Barrel Type Female 5.5*2.1mm Round socket or 2 PIN 5.08mm industrial terminal block,reverse polarity protection
Cellular Interface
Frequency
TDD-LTE: B34/38/39/40/41
FDD-LTE:B1/2/3/4/5/7/8/12/13/18/19/20/25/26/28/66
WCDMA: B1/2/4/5/6/8/19
GPRS/EDGE: B2/3/5/8
Max. Data Rates
TDD-LTE: 130 Mbps (DL)/50 Mbps (UL)
FDD-LTE: 150 Mbps (DL)/50 Mbps (UL)
WCDMA: 384 kbps (DL)/384 kbps(UL)
GPRS: 107 kbps (DL)/85.6 kbps (UL)
EDGE: 296 kbps (DL)/236.8 kbps (UL)
Antenna
1 x SMA-K
SIM card
1 x 2FF SIM
Ethernet Ports
WAN
1 x WAN port (can be configured to LAN) 10/100 Mbps, supports auto MDI/MDIX,1.5KV network isolation transformer protection
LAN
1 x LAN port, 10/100 Mbps, supports auto MDI/MDIX,1.5KV network isolation transformer protection
WiFi
Standards & Frequency
IEEE 802.11b/g/n,2.4GHz, AP mode
Data speed
IEEE 802.11b/g,maximum 54Mbps.IEEE 802.11n,maximum 150Mbps
Antenna
1 x SMA-K
Transmission distance
80 meters by line of sight.Actual transmission distance depends on environment of the site.
GPS Interface
Antenna Interface
1 * SMA-K
Antenna Type
Active antenna，frequency range 1575.42Mhz
Accuracy
The theoretical value for positioning accuracy is 2.5 meters, this accuracy is influenced by factors such as the number of available satellites.
Serial Interface
RS485
3 PIN 3.81mm industrial terminal block.
Baud rate
1200/2400/4800/9600/19200/38400/57600/115200/230400
Data bits
8
Stop bits
1, 2
Parity
NONE,ODD,EVEN
Other Interface
Reload
Reset to factory settings
TBD
Debug interface (TTL Level)
Indicators
PWR, WAN. LAN, WLAN, GNSS, Signal, 2G, 3G, 4G
Physical
CharacteristicsHousing
Metal shell,IP30
Dimensions
112.0*84.0*25.0 mm(L*W*H）
Installation method
Panel mounting, DIN-Rail mounting
EMC
IEC 61000-4-2(ESD): Level 3
IEC 61000-4-4(EFT): Level 3
IEC 61000-4-5(Surge): Level 3Operating temperature
-20℃～+70℃
Storage temperature
-40℃～+125℃
Operating humidity
5%～95%RH（non-condensing)
Network Connection
WAN protocol
PPP, PPPoE, DHCP client
LAN protocol
ARP, DHCP server, NAT
4G network access
Auto APN/VPDN, private network
Access authentication: CHAP/PAPWLAN security
Open system,WPA/WPA2 PSK
TKIP/AES encryption
IP routing
Static routing
Network diagnosis
Ping,route trace,DNS
Serial modem
Work mode
NET,HTTPD
Sockets
4 sockets,4 centers ,TCPS(SOCKA)/TCPC/UDPS/UDPC
Modbus RTU toTCP
Support
Device management
Configuration
Web
Remote management
Telnet, SSH, AT command,SNMP
PUSR platform
