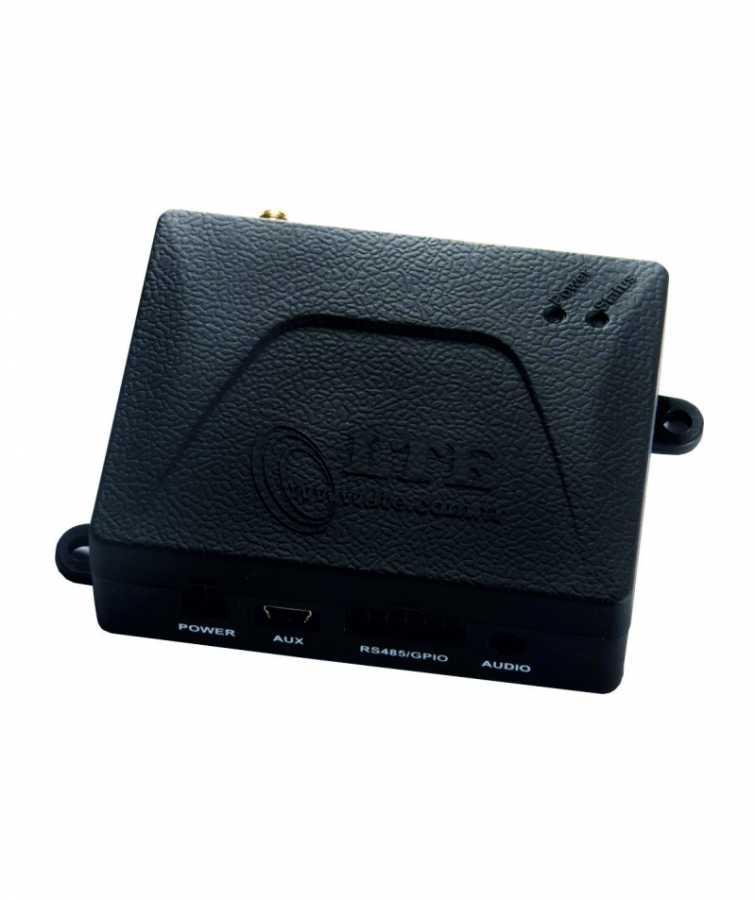

4G Terminal inc LE910-EU V2

Ürün Kodu : LE910T-4G-V2
Yorumlar
Paylaş:
Fiyat Alarmı
11.108,59 TL + KDV
The LE910T-4G terminal is a complete encased modem solution which combines the
access to digital communication services in LTE, UMTS, HSPA, GSM, GPRS, EDGE networks.
LE910T-4G is the new generation LTE terminal based on the penta-band and LE910-V2 core
engine incorporating additional and new features like Python 2.7 and GCC support.

SPECIFICATIONS:

Mechanical
*Dimensions: 85 x 70 x 33 mm, ■
*Weight: 140 grams.

Key Features
*Embedded Python Version 2.7 and GCC, ■
*USB Port (HS), ■
*RS232 ınterface (DB9-Female), ■
*Analog Audio Support (Mono-Mic&Ear), ■
*2 Digital Inputs, 2 Digital Outputs, 1 ADC.

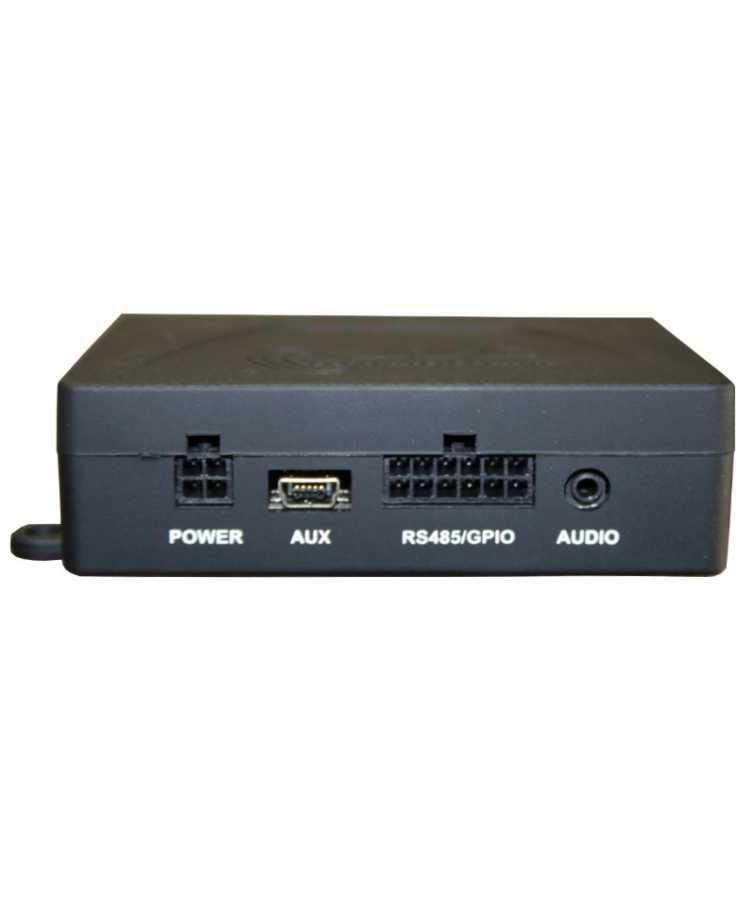

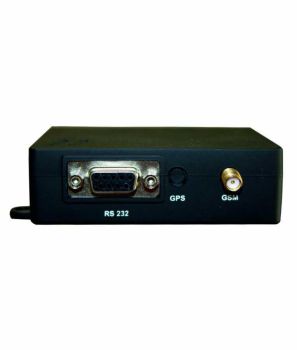

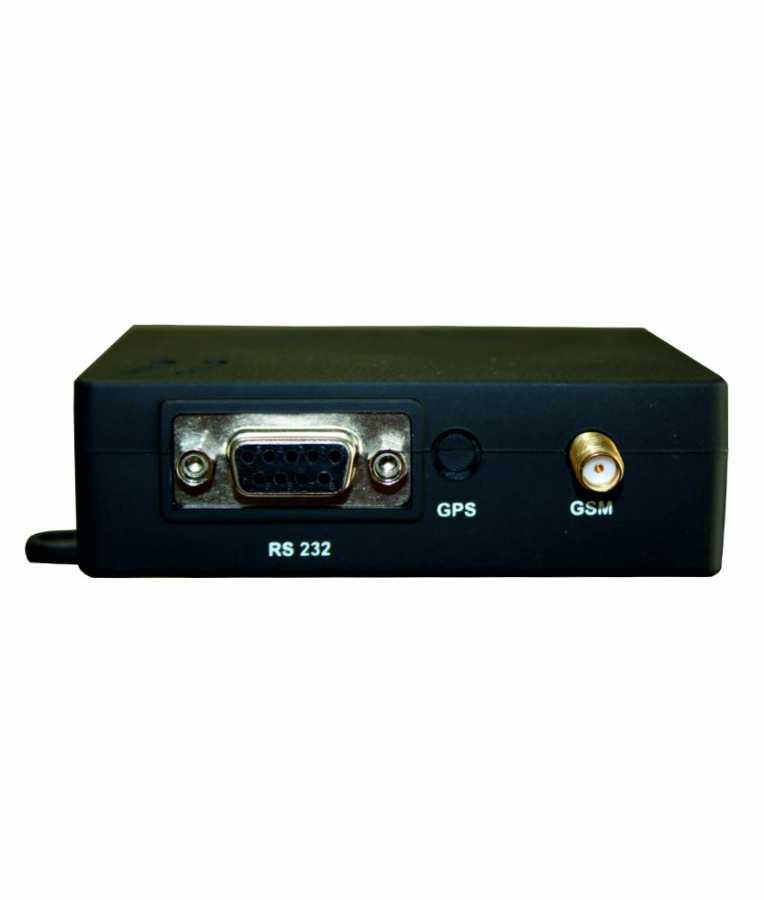

Interfaces
■ GPIO Socket (2 outputs, 2 inputs, 1 ADC)
■ D-type 9 pin RS-232 connector,
■ USB Port (HS),
■ SMA female, 50 Ohm RF connector,
■ 2.5mm jack (Mono Mic, Mono Ear),
■ Power Socket (PWR, GND, RST),
■ On board SIM card holder(Push-Push Type),

Product Features

Supported bands:
4G Bands: B3(1800), B7(2600),
B20(800), B1(2100), B8(900)
3G Bands: B1(2100), B8(900)
2G Bands: B3(1800), B8(900)

■ SIM application Tool Kits 3GPP TS,
■ Built in UDP/TCP/FTP/SMTP stack,
■ SIM Access Profile,
■ Control via AT commands,
■ Serial port multiplexer 3GPP TS27.010,
■ Extended temperature range:
- 40°C to +85°C (Operational),
■ Status and Power Leds
Interfaces
■ GPIO Socket (2 outputs, 2 inputs, 1 ADC)
■ D-type 9 pin RS-232 connector,
■ USB Port (HS),
■ SMA female, 50 Ohm RF connector,
■ 2.5mm jack (Mono Mic, Mono Ear),
■ Power Socket (PWR, GND, RST),
■ On board SIM card holder(Push-Push Type),
