4G Terminal inc LE910C1-EUX

Ürün Kodu : LE910T-4G-EUX
Yorumlar
Paylaş:
Fiyat Alarmı
11.866,00 TL + KDV

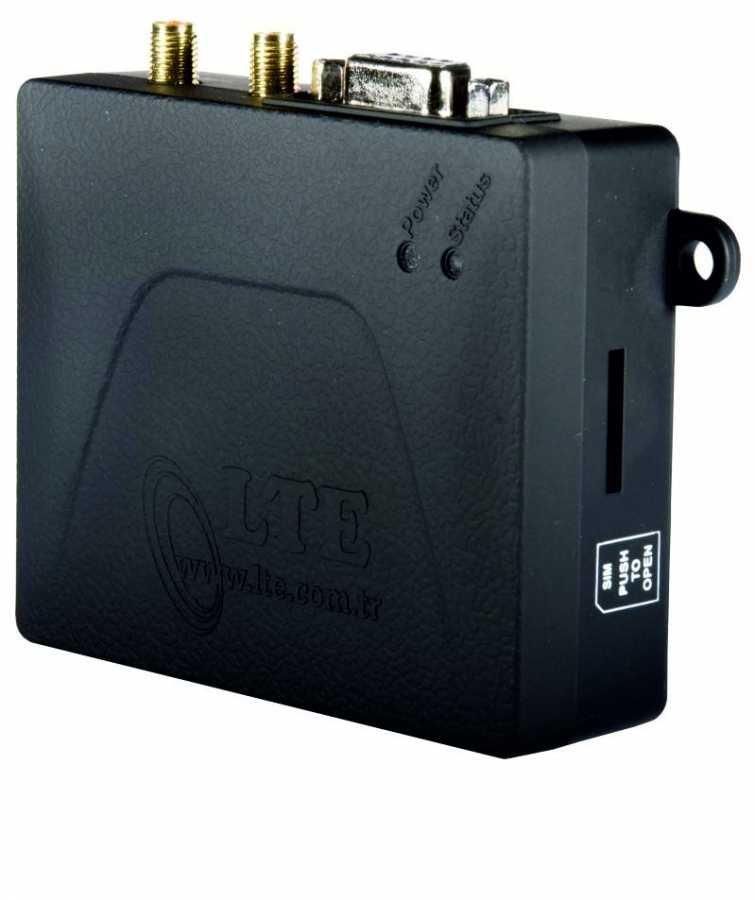

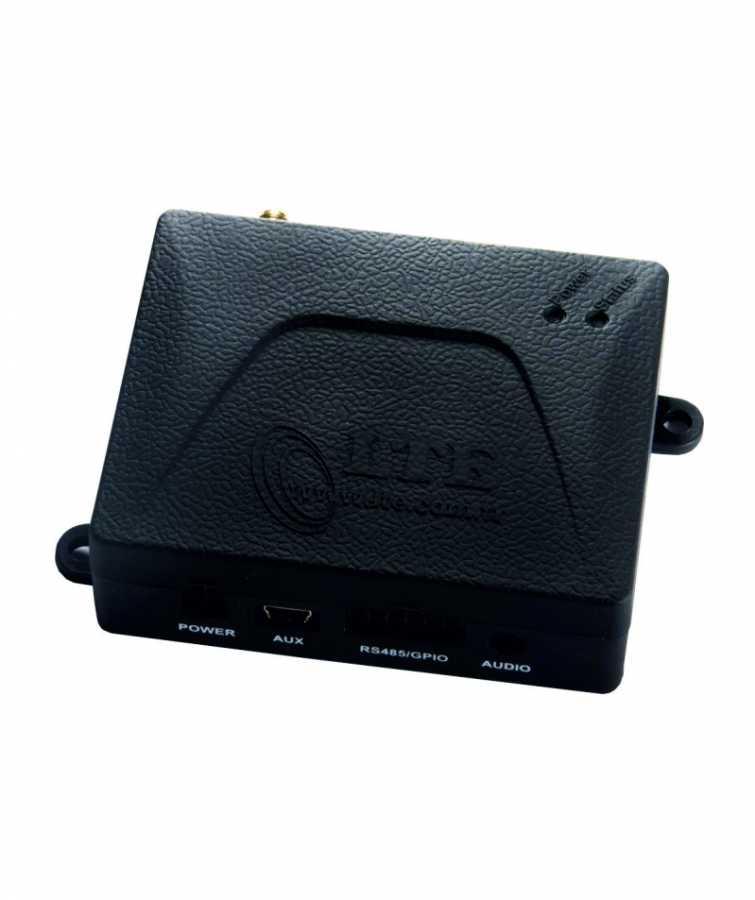

The LE910T-4G-EUX terminal is a complete encased modem solution which combines the

access to digital communication services in LTE, UMTS, HSPA, GSM, GPRS, EDGE networks.

LE910T-4G-EUX is the new generation LTE terminal based on the penta-band and LE910C1-EUX core

engine incorporating additional and new features like AppZone C IDE. .Also simultaneous support of GPS, Glonass, Beidou, Galileo, QZSS.



SPECIFICATIONS:



Mechanical

*Dimensions: 85 x 70 x 33 mm, ■

*Weight: 140 grams.



Key Features

*Embedded AppZone, ■

*USB Port (HS), ■

*RS232 ınterface (DB9-Female), ■

*Analog Audio Support (Mono-Mic&Ear), ■

*2 Digital Inputs, 2 Digital Outputs, 1 ADC.

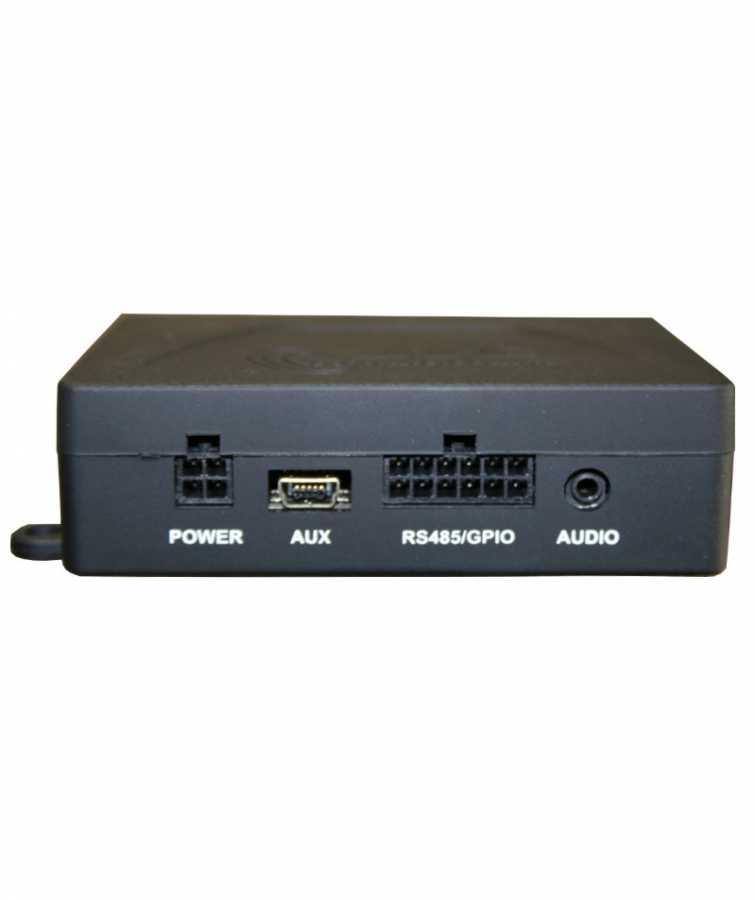

Interfaces

■ GPIO Socket (2 outputs, 2 inputs, 1 ADC)

■ D-type 9 pin RS-232 connector,

■ USB Port (HS),

■ SMA female, 50 Ohm RF connector,

■ 2.5mm jack (Mono Mic, Mono Ear),

■ Power Socket (PWR, GND, RST),

■ On board SIM card holder(Push-Push Type),



Product Features



Supported bands:

LE910C1-EUX

4G bands B1, B3, B7, B8, B20, B28A

3G bands B1, B3, B8

2G bands B3, B8

■ SIM application Tool Kits 3GPP TS,

■ Built in UDP/TCP/FTP/SMTP stack,

■ SIM Access Profile,

■ Control via AT commands,

■ Serial port multiplexer 3GPP TS27.010,

■ Extended temperature range:

- 40°C to +85°C (Operational),

■ Status and Power Leds

Interfaces

■ GPIO Socket (2 outputs, 2 inputs, 1 ADC)

■ D-type 9 pin RS-232 connector,

■ USB Port (HS),

■ SMA female, 50 Ohm RF connector,

■ 2.5mm jack (Mono Mic, Mono Ear),

■ Power Socket (PWR, GND, RST),

■ On board SIM card holder(Push-Push Type),

■ Simultaneous support of GPS, Glonass, Beidou, Galileo, QZSS.





Ürün Filtreleri
Barkod:8690000017478
Tedarikçi Ürün Kodu:LE910T-4G-EUX
