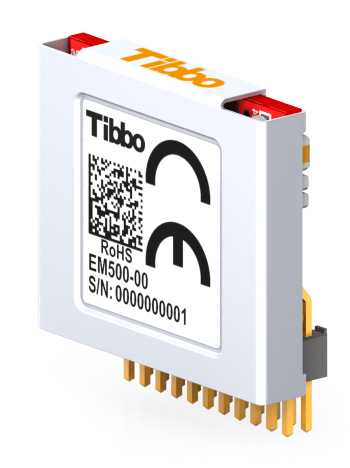

BASIC-PROGRAMMABLE ETHERNETMODULE
2.017,78
TL
+
KDV
Stok Durumu:
Yok
Specifications:
- Based on a second-generation ASIC (T2000).
- 10/100BaseT auto-MDIX Ethernet port (no magnetics).
- One serial port (CMOS-level):
- Baudrates of up to 460800bps;
- None/even/odd/mark/space parity modes;
- 7/8 bits/character modes;
- Full-duplex mode with optional flow control;
- Half-duplex mode with direction control;
- Encoding and decoding of Wiegand and clock/data streams.
- 512KB flash memory for firmware and application.
- 200 bytes of EEPROM space for data storage.
- 8 general-purpose I/O lines (including 2 interrupt lines).
- Control lines for two external dual-functionstatus LEDs.
- Additional control line for a dedicated Ethernet link LED.
- External reset source required.
- Power: 260mA @ 3.3V (100BaseT mode).

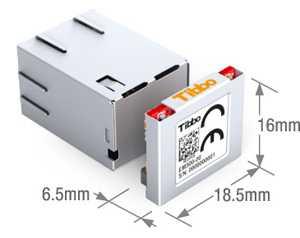

- "Vertical slice" construction; dimensions: 18.5x16.0x6.5mm.
- Firmware is upgradeable through the serial port or network (including "cold upgrade" firmware uploads through the network).
- Optional Wi-Fi interface (requires GA1000 add-on module).
- Optional Flash disk (requires an external SPI flash IC).
