Break Out Board inc GL865 Module
2.410,95
TL
+
KDV
Stok Durumu:
Var(19
Adet)

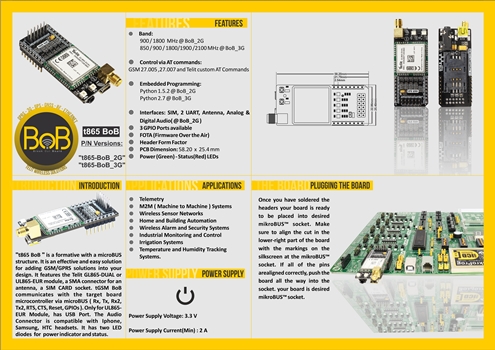

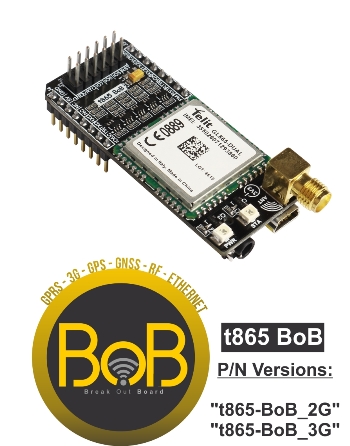

"t865 BoB " is a formative with a microBUS structure. It is an effective and easy solution for adding GSM/GPRS solutions into your design. It features the Telit GL865-DUAL or UL865-EUR module, a SMA connector for an antenna, a SIM CARD socket. tGSM BoB communicates with the target board microcontroller via microBUS ( Rx, Tx, Rx2, Tx2, RTS, CTS, Reset, GPIOs ). Only for UL865-EUR Module, has USB Port. The Audio Connector is compatible with Iphone, Samsung, HTC headsets. It has two LED diodes for power indicator and status.
Features:
- Band:
900 / 1800 MHz @ BoB_2G
850 / 900 / 1800/1900 /2100 MHz @ BoB_3G
- Control via AT commands:
GSM 27.005 ,27.007 and Telit custom AT Commands
- Embedded Programming:
Python 1.5.2 @ BoB_2G
Python 2.7 @ BoB_3G
- Interfaces: SIM, 2 UART, Antenna, Analog & Digital Audio( @ BoB_2G )
- 3 GPIO Ports available
- FOTA (Firmware Over the Air)
- Header Form Factor
- PCB Dimension: 58.20 x 25.4 mm
- Power (Green) - Status(Red) LEDs
Applications:
- Telemetry
- M2M ( Machine to Machine ) Systems
- Wireless Sensor Networks
- Home and Building Automation
- Wireless Alarm and Security Systems
- Industrial Monitoring and Control
- Irrigation Systems
- Temperature and Humidity Tracking Systems.
| Ürün Filtreleri | ||
|---|---|---|
| Tedarikçi Ürün Kodu | : | t865_BoB_2G |
