Break Out Board inc UE910 Module
4.018,26
TL
+
KDV
Stok Durumu:
Var(2
Adet)

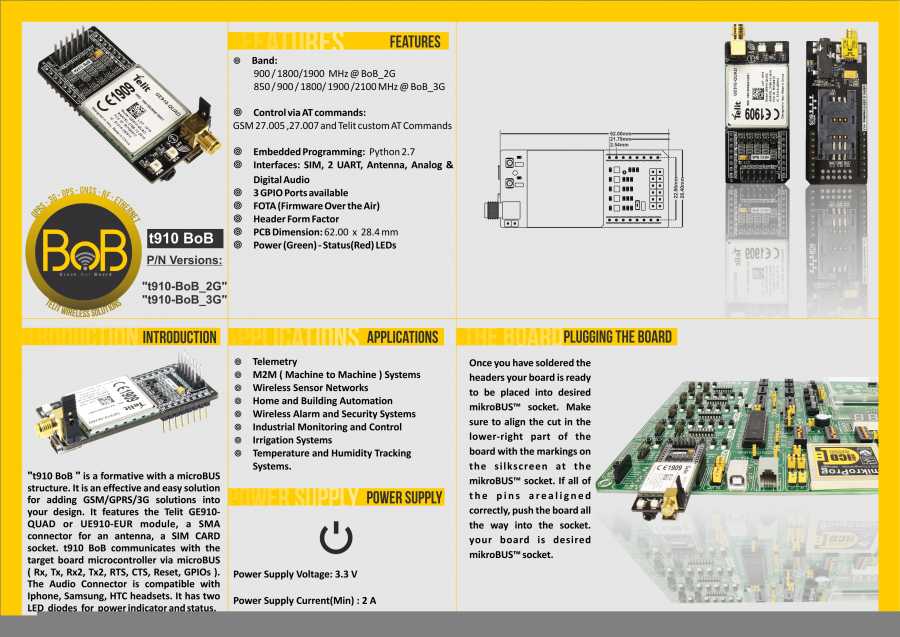

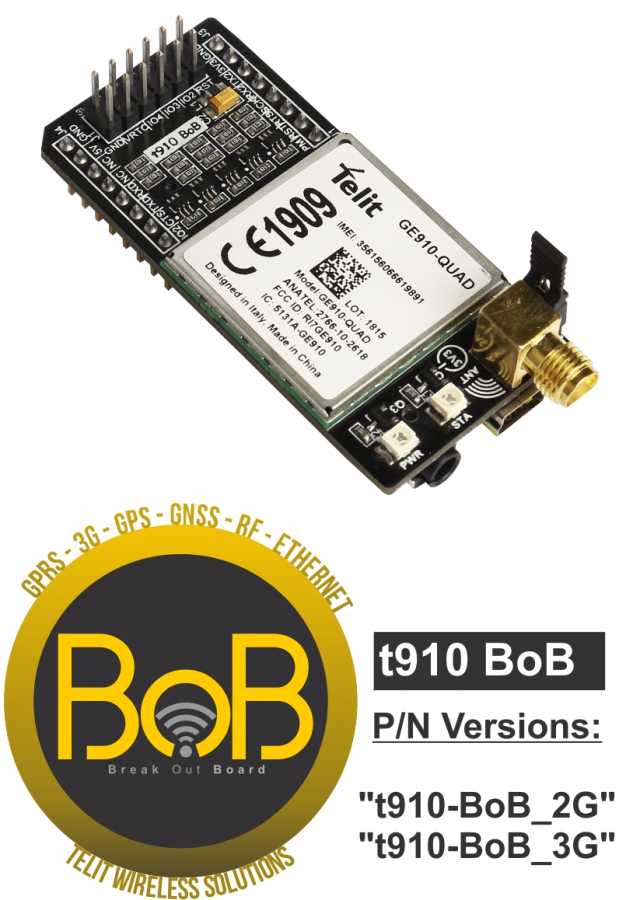

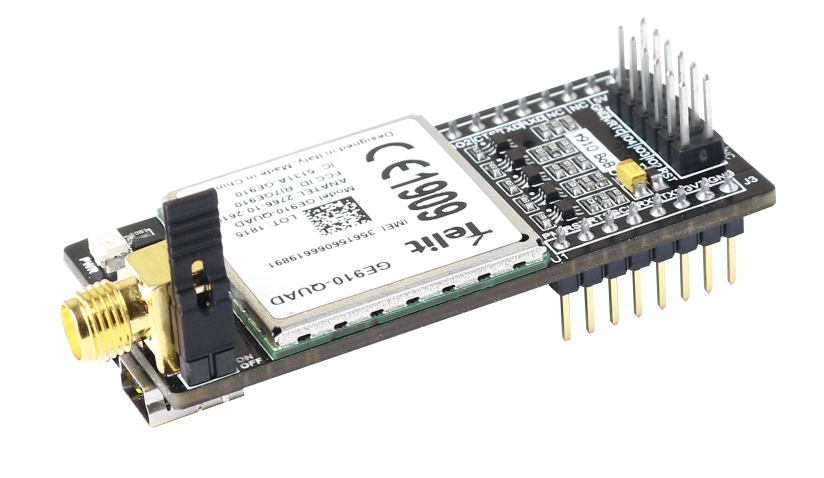

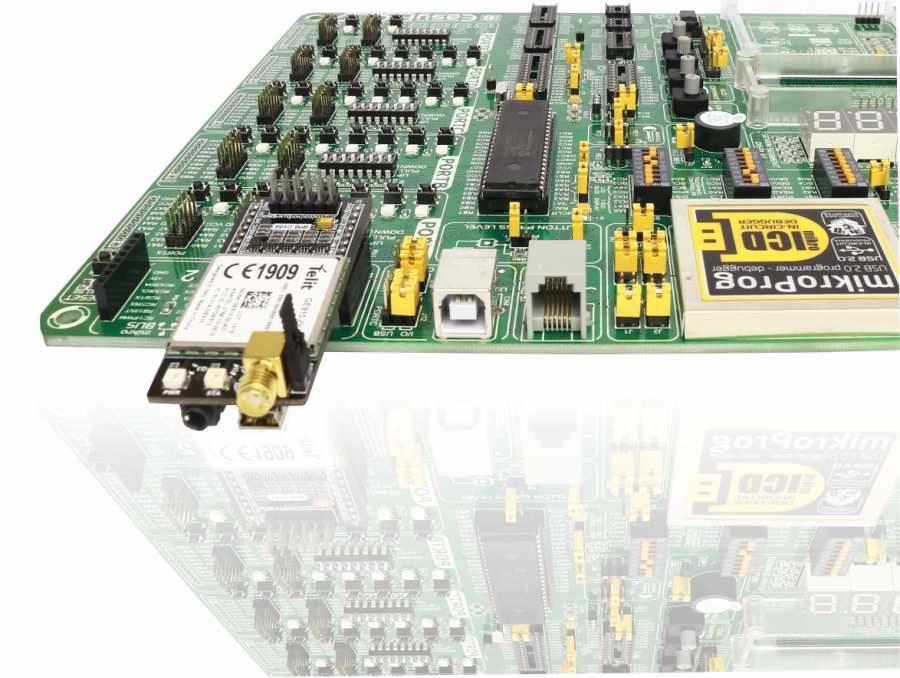

"t910 BoB " is a formative with a microBUS structure. It is an effective and easy solution for adding GSM/GPRS/3G solutions into your design. It features the Telit GE910-QUAD or UE910-EUR module, a SMA connector for an antenna, a SIM CARD socket. t910 BoB communicates with the target board microcontroller via microBUS ( Rx, Tx, Rx2, Tx2, RTS, CTS, Reset, GPIOs ). The Audio Connector is compatible with Iphone, Samsung, HTC headsets. It has two LED diodes for power indicator and status.
Features:
- Band:
900 / 1800/1900 MHz @ BoB_2G
850 / 900 / 1800/ 1900 /2100 MHz @ BoB_3G
- Control via AT commands:
- GSM 27.005 ,27.007 and Telit custom AT Commands
- Embedded Programming: Python 2.7
- Interfaces: SIM, 2 UART, Antenna, Analog & Digital Audio
- 3 GPIO Ports available
- FOTA (Firmware Over the Air)
- Header Form Factor

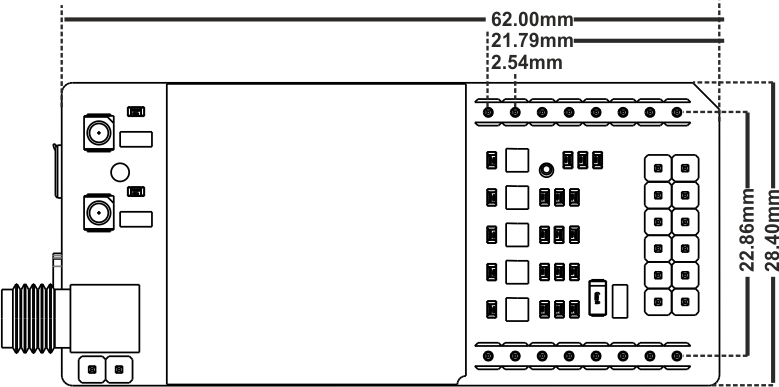

- PCB Dimension: 62.00 x 28.4 mm
- Power (Green) - Status(Red) LEDs
Applications:
- Telemetry
- M2M ( Machine to Machine ) Systems
- Wireless Sensor Networks
- Home and Building Automation
- Wireless Alarm and Security Systems
- Industrial Monitoring and Control
- Irrigation Systems
- Temperature and Humidity Tracking Systems.
| Ürün Filtreleri | ||
|---|---|---|
| Tedarikçi Ürün Kodu | : | t910_BoB_3G |
