Break Out Board inc LE51-868 Module
2.410,95
TL
+
KDV
Stok Durumu:
Var(5
Adet)

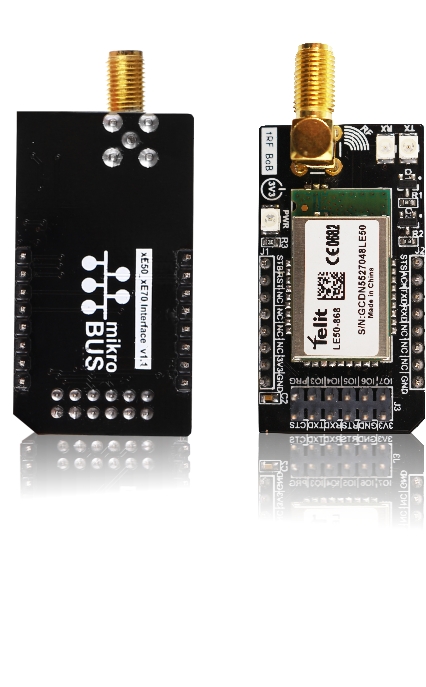

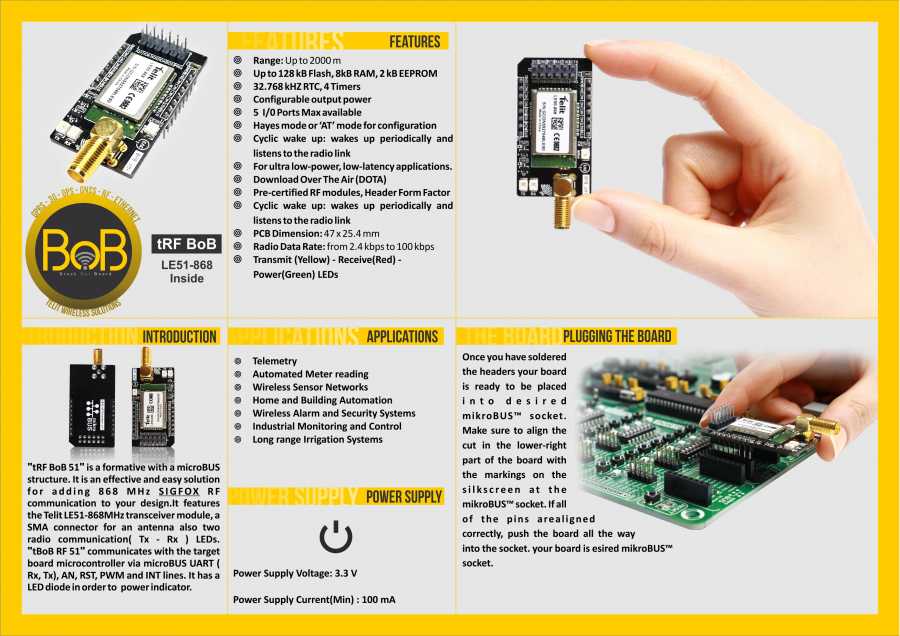

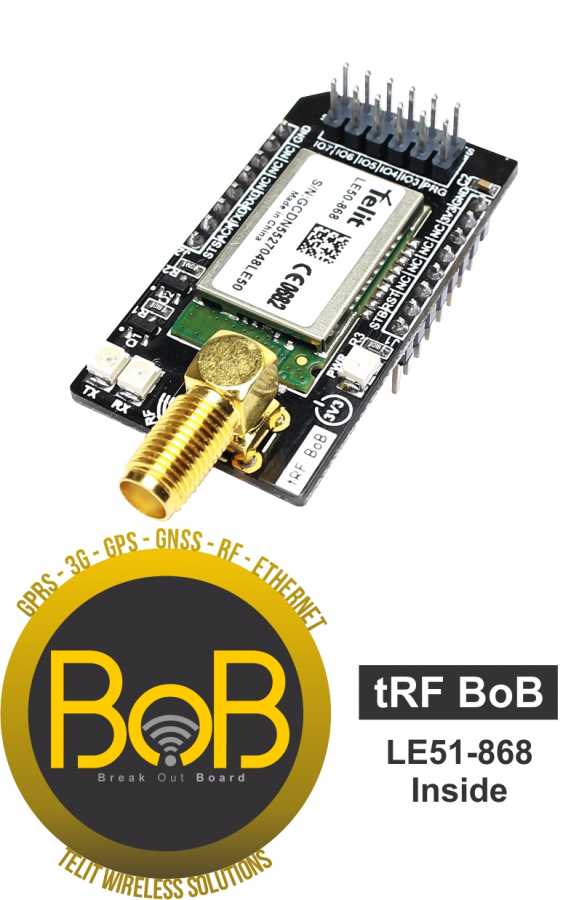

"tRF BoB 51" is a formative with a microBUS structure. It is an effective and easy solution for adding 868 MHz SIGFOX RF communication to your design.It features the Telit LE51-868MHz transceiver module, a SMA connector for an antenna also two radio communication( Tx - Rx ) LEDs. "tBoB RF 51" communicates with the target board microcontroller via microBUS UART ( Rx, Tx), AN, RST, PWM and INT lines. It has a LED diode in order to power indicator.
- Range: Up to 2000 m
- Up to 128 kB Flash, 8kB RAM, 2 kB EEPROM
- 2.768 kHZ RTC, 4 Timers
- Configurable output power
- 5 I/0 Ports Max available
- Hayes mode or ‘AT’ mode for configuration
- Cyclic wake up: wakes up periodically and listens to the radio link
- For ultra low-power, low-latency applications.
- Download Over The Air (DOTA)
- Pre-certified RF modules, Header Form Factor
- Cyclic wake up: wakes up periodically and listens to the radio link

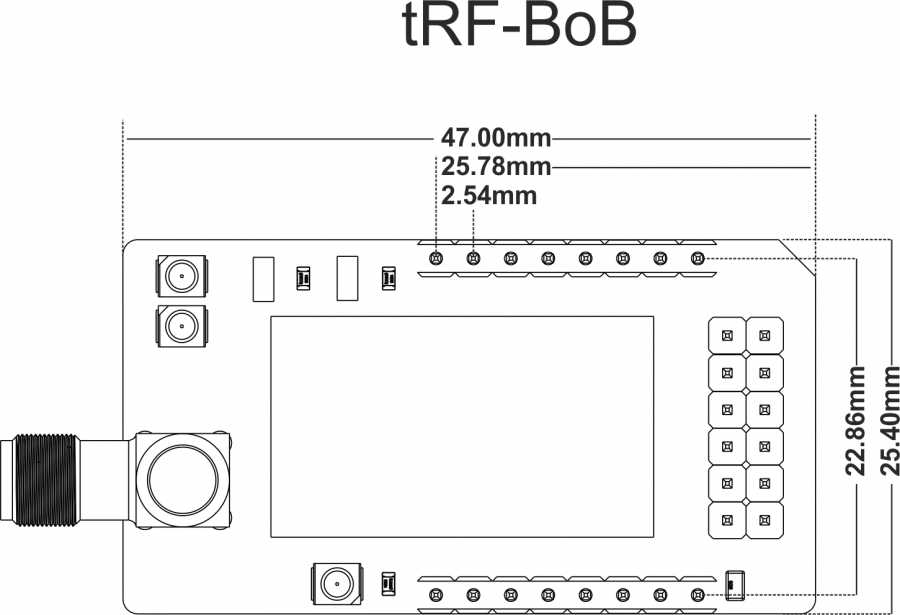

- PCB Dimension: 47 x 25.4 mm
- Radio Data Rate: from 2.4 kbps to 100 kbps
- Transmit (Yellow) - Receive(Red) - Power(Green) LEDs
| Ürün Filtreleri | ||
|---|---|---|
| Tedarikçi Ürün Kodu | : | tRF_BoB LE51-868 |
