Break Out Board inc SL869 V2S Module
2.109,58
TL
+
KDV
Stok Durumu:
Var(9
Adet)

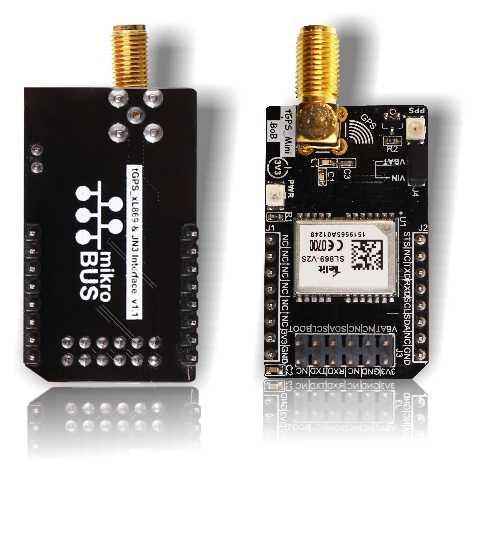

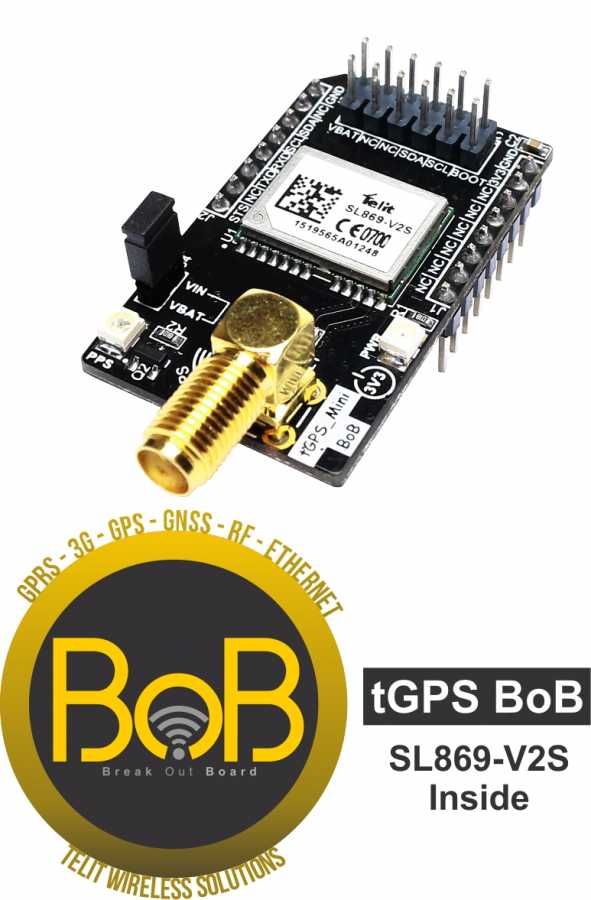

" tGPS BoB " is a formative with a microBUS structure. It is an effective and easy solution for adding GPS functionality to your design.It features the Telit SL869 - V2S module, a SMA connector for an GPS antenna also it has two LEDs for PPS and PWR. tGPS BoB can be interfaced with the target board microcontroller via microBUS UART ( Rx, Tx), lines. It has a LED diode in order to power indicator.it can function on 3.3 V power supply only.
- Standards: NMEA
- Chipset: Mediatek MT3337 core
- Acquisition Chanels: 66
- Positionnal Accuracy: 3 m
- Sensitivity: Acquisition: -148dBm, Navigation: -163dBm, Tracking: -165dBm
- Current: Acquisition: typ 27 mA, Tracking: typ 24 mA,
- Standby: typ <6.5 uA
- GNSS Standards and bands supported: GPS L1
- Assisted GPS
- Header Form Factor

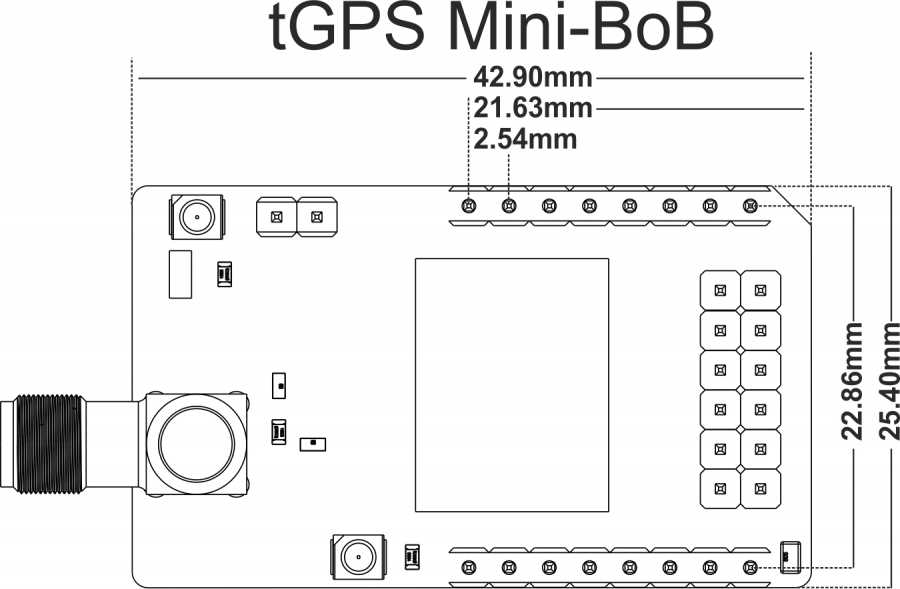

- PCB Dimensions: 43 x 25.1
- PPS (Red) - Power(Green) LEDs
| Ürün Filtreleri | ||
|---|---|---|
| Tedarikçi Ürün Kodu | : | tGPS_Mini_BoB |
