NICE RF

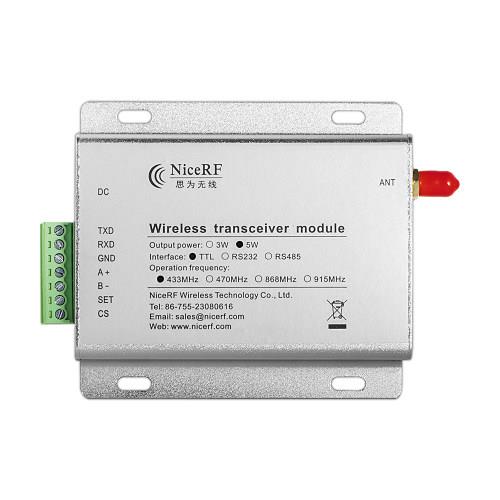

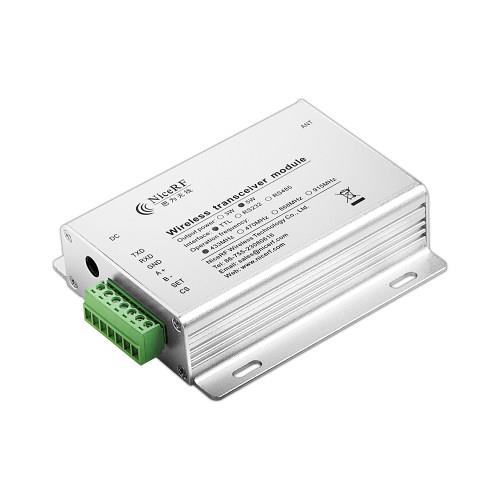

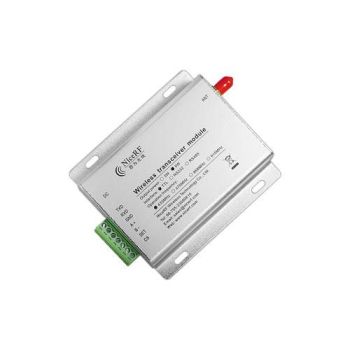

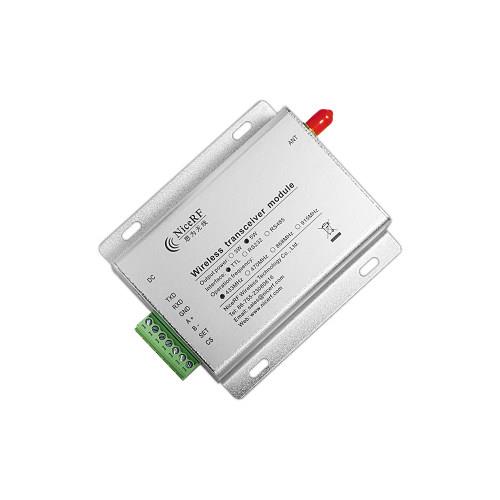

Industrial Ultra Long Distance Wireless Transceiver Modem, 5W, DTU

Ürün Kodu : SV6500
Yorumlar
Paylaş:
Fiyat Alarmı
6.816,64 TL + KDV
ParametersMin.Typ.Max.UnitCondition
Working Condition
Voltage range91218.5V
Operating Temperature-4025+85℃
Current Consumption
Rx current <30 mA
Tx current <1.8 A@37dBm
Sleep current <5 mA@TTL Level
RF Parameters

Frequency range

414.92433.92453.92MHz@433MHz
470.92490.92509.92MHz@490MHz
Data rate1.29.6115.2KbpsGFSK
Output power30/+37dBm
Sensitivity -121 dBm@1.2Kbps




Features

  • Built-in software watchdog
  • Built-in hardware anti-crash self-reset circuit to resist strong external interference signals
  • Frequency:433/490 MHz
  • Industrial class
  • 40 channels
  • 4 bytes Net ID &2 bytes Node ID
  • Series Data Rate: 1200 ~ 115200 bps
  • Air Data Rate: 1200 ~ 115200 bps
  • GFSK modulation
  • RSSI
  • Parameters save automatically
  • Interface: TTL/RS232/RS485
  • Bi-directional & Half duplex
  • Sensitivity: -121 dBm
  • Max output power: 5W (+37 dBm)
  • Working voltage: 9~30.0V
  • Working temperature: -40 ~ +85 °C
  • Weight: 160g



Applications

  • Remote control telemetry
  • Security system
  • Industrial data acquisition
  • Home automation
  • Wireless data communication
  • Access system
  • Robot control
  • Wireless PC peripherals
