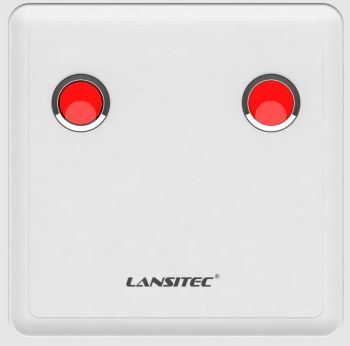

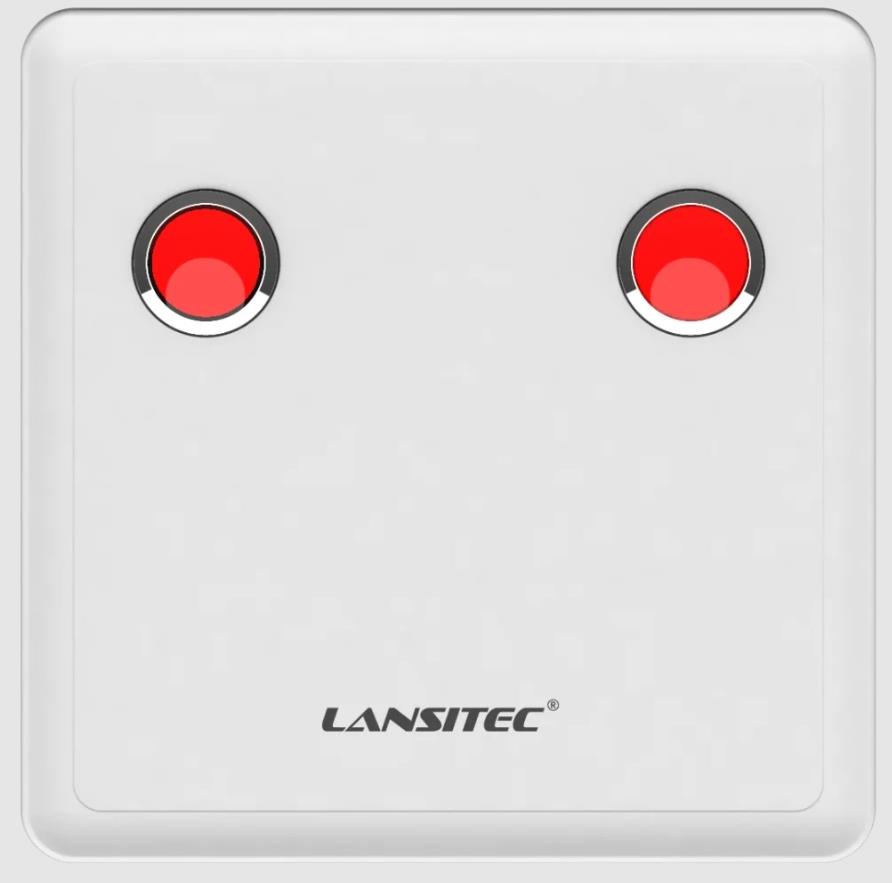

Lansitec LoRaWAN Proximity Sensor

Name: Lansitec LoRaWAN Proximity Sensor
Brand: LANSITEC
SKU: LNS-Proximity
Price: 11301.35 TRY
Availability: OutOfStock

Ürün Kodu : LNS-Proximity

Yorumlar

Paylaş:

Fiyat Alarmı

11.301,35 TL + KDV

Stok Durumu:

Yok

Connectivity

Bluetooth Protocol: Bluetooth 5.0

LoRaWAN Protocol: LoRaWAN 1.0.2B

LoRaWAN Band: US915, AU915, EU868, EU433, AS923, RU864, KR920, IN865, CN470

LoRa Maximum RF Power: 0 to 20dBm

High TX Power Option: Max. 30dBm and -150dBm receiving sensitivity

LoRa Sensitivity

-139dBm @SF12, BW125kHz, 434MHz/470MHz
-137dBm @SF12, BW125kHz, 868MHz/915MHz

Access Quantity: >500 in one LoRaWAN gateway

LoRa Communication Distance: >2km in the urban area

Encryption: AES128

Mechanics

Dimension: 160*160*55mm

Operating Temperature: -45°C ~ +85°C

Storage Temperature: -60°C ~ +90°C

Operating Humidity: 0% ~ 95% (non-condensing)

Weight: 530g

Ingress Protection: IP66

Bluetooth

Protocol: Bluetooth 5.0

TX Power: 4, 0, -4, -8, -12, -16, -20dBm

Sensitivity: -96dBm

Receiving Range: 50m

Functions

Alarm RSSI Threshold: Default: -65dBm, adjustable

Buzzer Volume Level: 0 (silent) to 4 (maximum)

Buzzer Duration: 10s x n (1 to 255)

Adjustable Position Report Interval: 5s x n (1 to 65536)

Heartbeat Report Interval: 30s x n (1 to 255)

Adjustable Bluetooth Payload to be reported

Support FOTA over Bluetooth

Power

Standby Current:25μA

Switch

Support

Status LED

Support

Battery

Li-SoCl2 Battery, 19000mAhx2/19000mAhx4/19000mAhx6

Certification

Certification

CE, FCC
