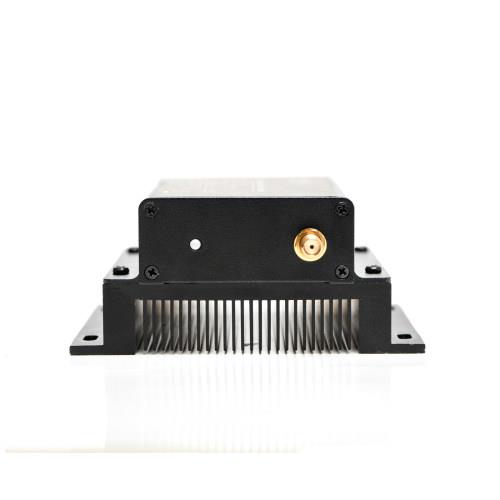

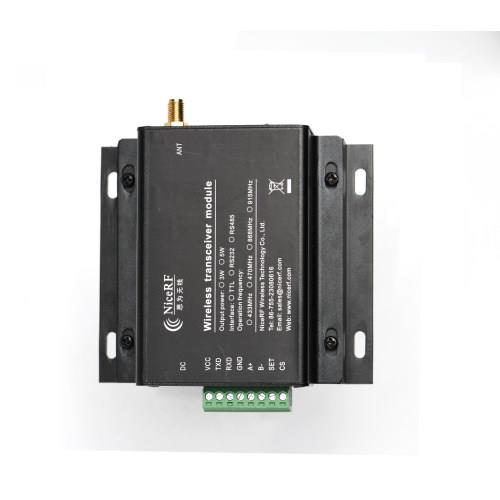

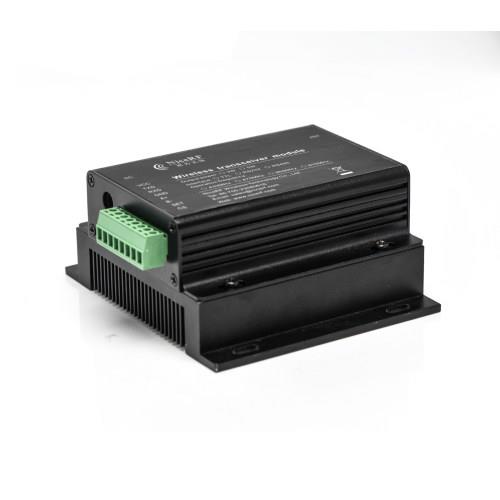

LoRa Wireless Transceiver Trans. Module, 5W, 433MHz, DTU
7.675,03
TL
+
KDV
Stok Durumu:
Yok
| Parameters | Min. | Typ. | Max. | Unit | Condition |
| Working Condition | |||||
| Voltage range | 9 | 12 | 30 | V | |
| Operating Temperature | -40 | 25 | +85 | ℃ | |
| Current Consumption | |||||
| Rx current | < 18 | mA | TTL level | ||
| Tx current | < 1.8 | A | @ 37dBm ,12V | ||
| Sleep current | < 7 | mA | |||
| RF Parameters | |||||
Frequency range | 414.92 | 433.92 | 453.92 | MHz | @433MHz |
| 470.92 | 490.92 | 509.92 | MHz | @490MHz | |
| Data rate | 91 | 656 | 17353 | bps | @LoRa |
| Output power | 28 | + 37 | dBm | @12V, 433MHz / 490MHz | |
| Sensitivity | -139 | dBm | @91bps | ||
Features
- Transmission distance in open area up to 15Km@ 91bps
- 433/470MHz(Customizable)
- AES128 Data encryption
- MESH working mode
- 40 channels
- LoRa modulation
- Interface: TTL/RS232/RS485
- Sensitivity: -139 dBm
- Max output power: 5W(+37dBm)
- Working voltage: 9~30 V
- Working temperature: -40 ~ +85 °C
Applications
- Remote control
- Remote meter reading
- Industrial data collection
- Home automation telemetry
- Wireless data communication
- Access control system
