LoRaWAN gas monitor AN-302 - 1LoRaWAN gas monitor AN-302 - 2LoRaWAN gas monitor AN-302 - 3
WINEXT

LoRaWAN gas monitor AN-302

Ürün Kodu : AN-302
Yorumlar
Paylaş:
Fiyat Alarmı
0,00 TL + KDV

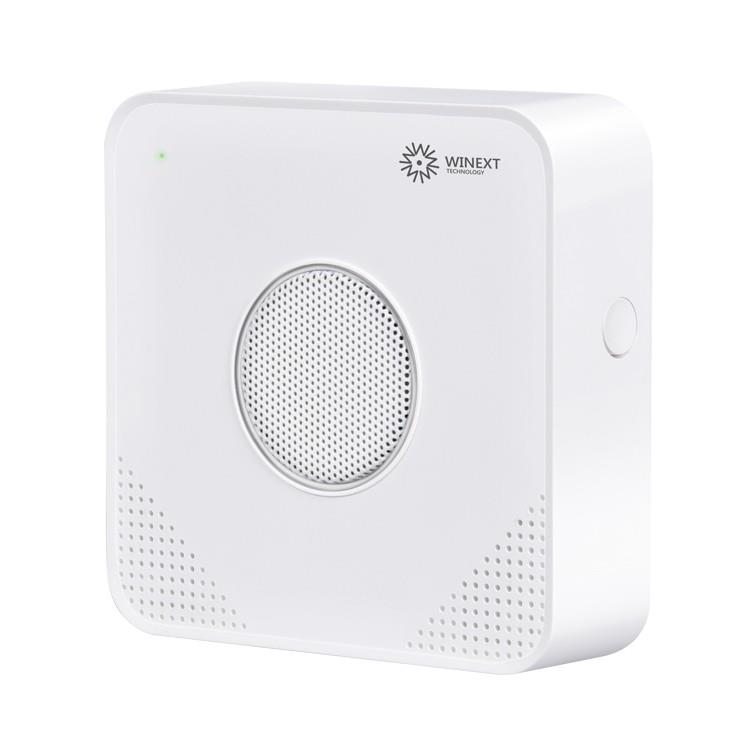

LoRaWAN gas monitor AN-302

AN-302 is a wireless gas leakage detector. It has a built-in gas detection sensor with low power consumption and high detection accuracy. When there is gas leakage, and the gas density is up to a set threshold value, the device will report the alarm to the cloud monitoring platform through a LoRa gateway. The cloud monitoring platform processes and analyzes the data, and interacts with the application platform to achieve real-time monitoring of combustible gas leakage status.

LoRaWAN gas monitor AN-302 for smart restaurant, smart home:



AN-302 is a wireless gas leakage detector. It has a built-in gas detection sensor with low power consumption and high detection accuracy. When there is gas leakage, and the gas density is up to a set threshold value, the device will report the alarm to the cloud monitoring platform through a LoRa gateway. The cloud monitoring platform processes and analyzes the data, and interacts with the application platform to achieve real-time monitoring of combustible gas leakage status.




          Application:

          It is mainly used in family kitchen, school canteen, factory canteen, hotel restaurant and other application scenarios.



      Product Features:



l Support LoRaWANTM Class A

l Detecting methane gas leakage within 2 meters

l Support AC220V

l Built-in hardware watchdog circuit to ensure the long-term stable performance

l Plastic shell with flame retardant material

l Working temperature range of -10℃~ +55℃

l Strong anti-interference capability

l Easy to install

l Plug and play


Product parameters:



Item

Description

Performance

Hardware

Detecting Gas

Methane

Alarm Threshold Value

7% LEL

Alarm Volume

≥75dB(at 1 meter)

Wireless Parameter

Tx Rate

300bps-5.4kbps

Frequency

CN470-510MHz

EU863-870MHz

US902-928MHz

AS923MHz

AU915-928MHz

KR920-923MHz

Max Tx Power

19dBm

Rx sensibility

-141dBm(SF=12)

Working Ambient

Temperature

-10℃-+50℃

Humidity

20%-90% (no condensing)

Electrical Parameter

Power supply

AC220V

Sleep current

≤20uA

Tx current

≤130mA

Physical Parameter

Dimension

86mm*86mm*26mm(plug excluded)
