LoRaWAN Gateway HAT for Raspberry Pi, SX1302 868M EU868

Ürün Kodu : LTE-WS20522
Yorumlar
Paylaş:
Fiyat Alarmı
7.574,04 TL + KDV
LoRaWAN Gateway HAT For Pi

SX1302 core module, standard Mini-PCIe socket

Features At A Glance

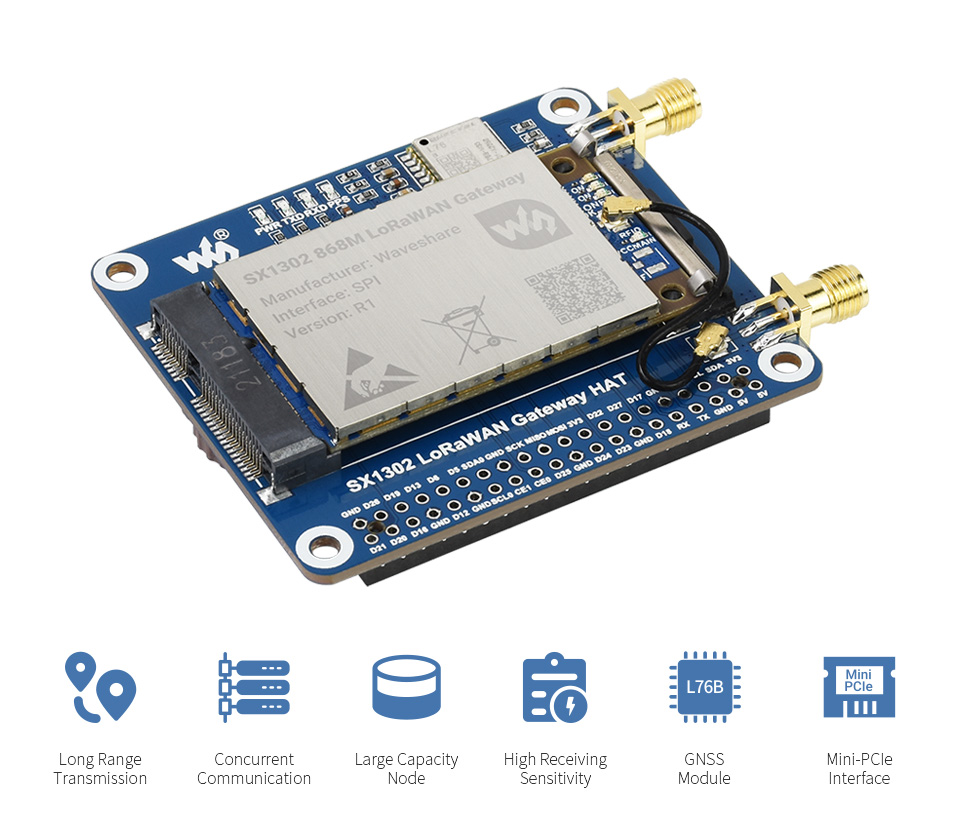

This is a communication HAT for Raspberry Pi with LoRaWAN protocol support, which incorporates core LoRa gateway module SX1302 868M LoRaWAN Gateway. It has lots of advantages including long range transmission, concurrent communication, large capacity node, and high receiving sensitivity. There are L76B GNSS module and Mini-PCIe socket on the base board for easy integration, along with our rich development resources, you can attach it to Raspberry Pi and build the LoRa network fast.

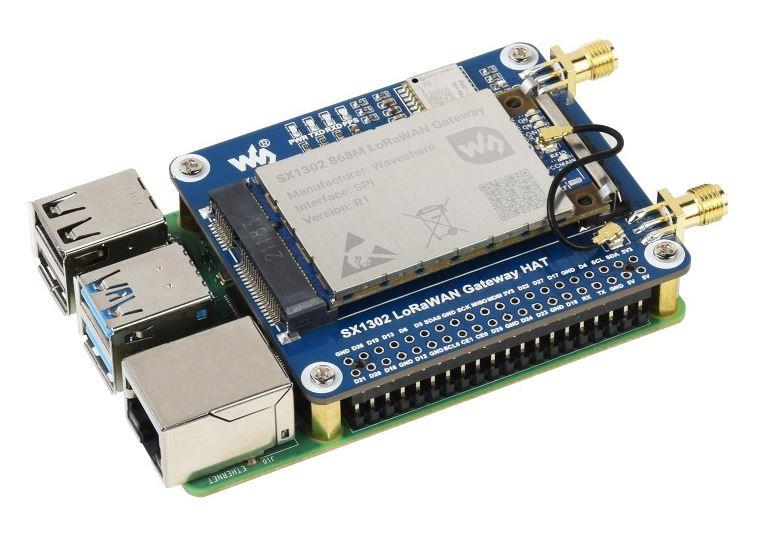

  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
  • Incorporate L76B module with GPS/BD support, Gateway module for providing accurate clock and location info
  • Comes with development resources and manual (example in C)

SX1302 868M LoRaWAN Gateway core module features:

  • Integrates Semtech SX1302 normal band and SX1250 radio RF frond-end chip, EU868 band
  • Onboard PA and LNA, features 26dBm emit power and -141dBm high sensitivity receiving gain
  • 10x signal channel, supports multiple nodes concurrent communication and FEC (Forward Error Correction) algorithm
  • Supports SF5~SF12 spreading factor, 19Kbps MAX (SF5/BW125KHz) data rate
  • Utilizing SPI communication protocol and standard Mini-PCIe socket, for easy integration into sorts of embedded systems
Specifications
LORA GATEWAYGNSS MODULE
Power supply5V
Frequency rangeEU868 (863-870MHz)GPS L1 (1575.42MHz)
BD2 B1 (1561.098MHz)
Positioning accuracy-< 2.5m CEP
ModulationLoRa/(G)FSK-
Emit power> 26dBm@5V-
Receiving sensitivity-141dBm@125KHz/SF12
-121dBm@125KHz/SF5
acquisition: -148dBm
tracking: -163dBm
re-acquisition: -160dBm
Overall power consumptionemitting: 710mA@5V GPS on
receiving: 99mA@5V GPS on
sleep: 41mA@5V GPS off
Communication busSPI, I2CUART
External connectorMini-PCIe-
Operating temperature-40~85℃

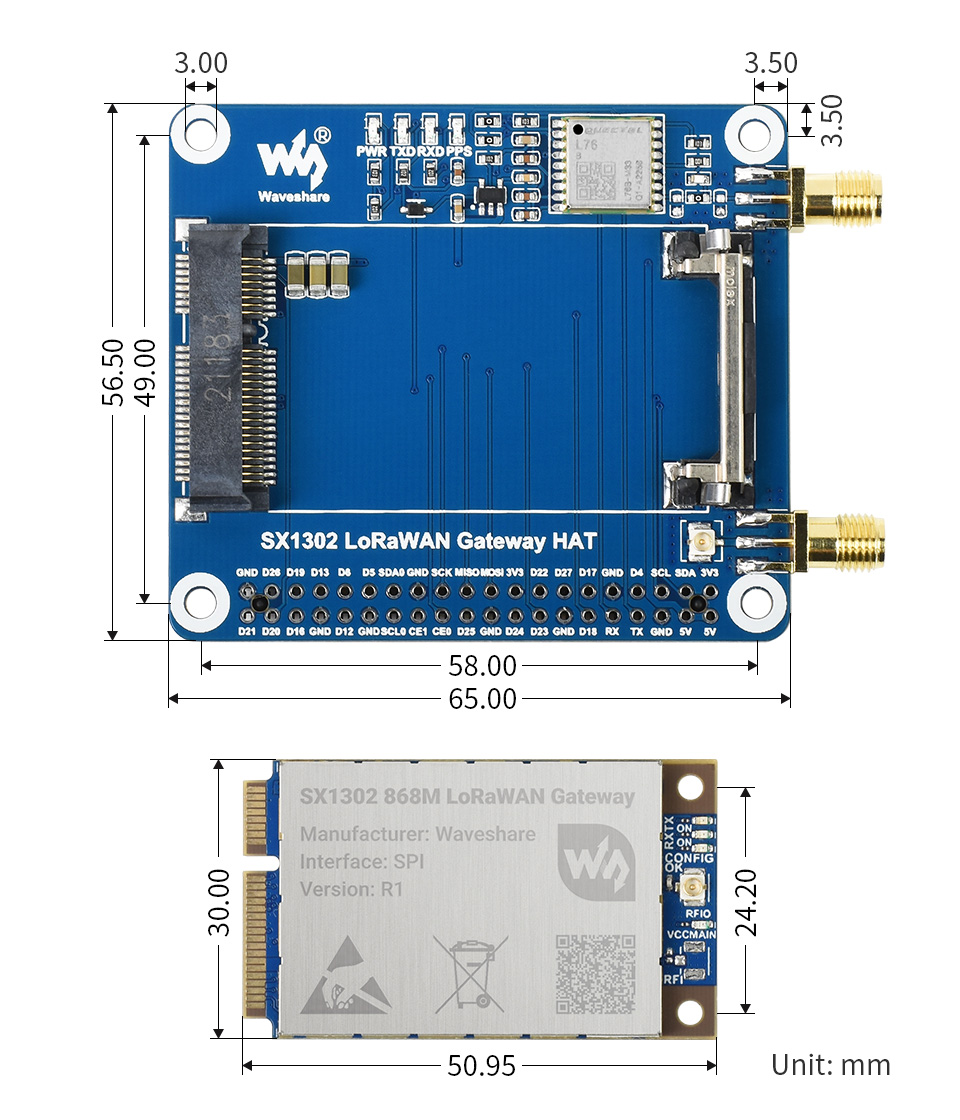

Dimensions50.95 x 30mm-
Performance-Upgraded SX1302 Chip

Lower Power Consumption, Fast Data Rate, Longer Distance



Multiple Channels Smooth Communication

A Better Solution For Concurrent High Throughput Situation

FEC Forward Error Correction Algorithm

The New Generation LoRa Spread Spectrum Technology,
Higher Anti-Interference Performance, Longer Communication Distance

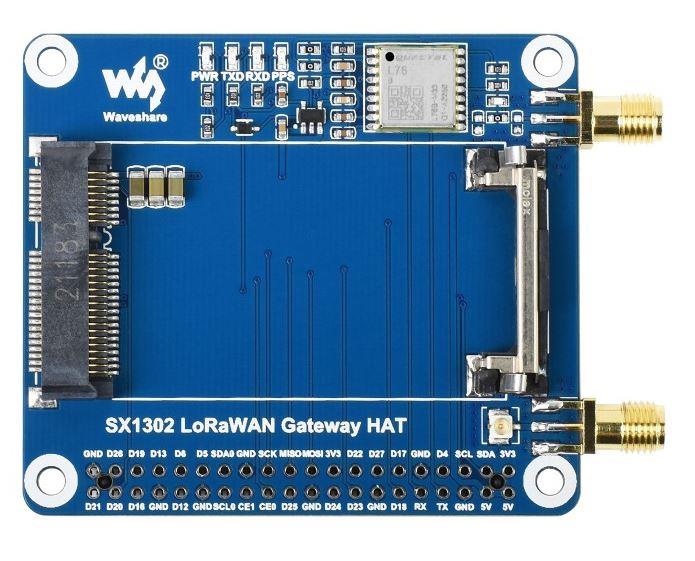

What's On Board

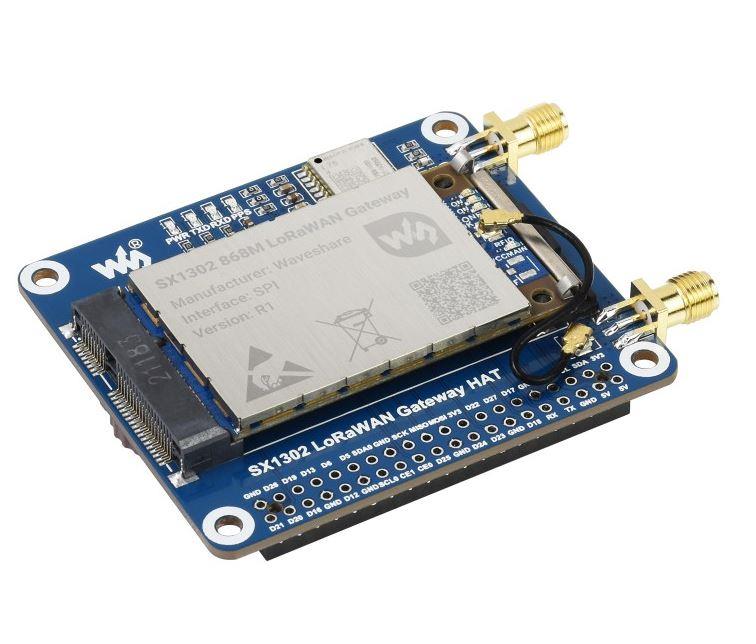

  1. SX1302 868M LoRaWAN Gateway module
  2. Mini-PCIe socket and buckle
  3. L76B module
  4. RT9193-33 power chip
  5. Status indicator
    PWR: power indicator
    RXD/TXD: UART RX/TX indicator
    PPS: GPS status indicator
  6. Raspberry Pi GPIO header
    for connecting with Raspberry Pi series boards
  7. L76B antenna connector
  8. LoRa Gateway antenna connector

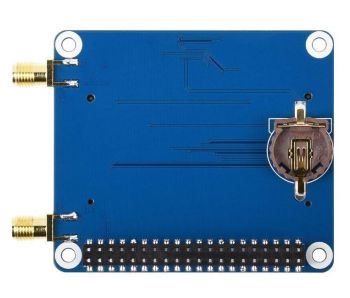

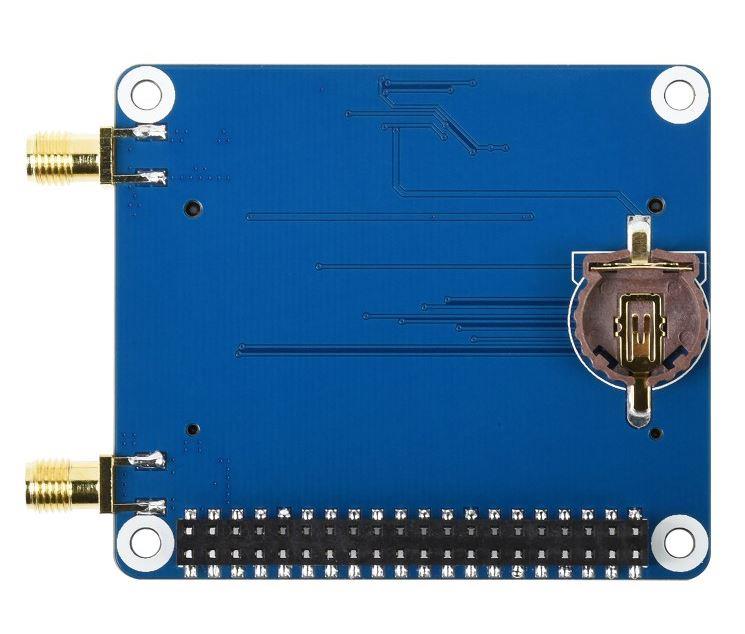

  9. Battery holder
    supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts
