Features
· Easy to connect with diverse wired devices through DIO/AI/RS232/RS485/PT100RTD input interfaces
· Support LoRaWAN® or 3/4G wireless communication
· Multiple triggering conditions and actions
· Embedded watchdog for device working stability
· Industrial metal case design with wide operating temperature range
· Compliant with standard LoRaWAN® gateways and network servers
· Quick and easy management with Milesight IoT Cloud solution
WirelessTransmission
LoRaWAN® Model(OptionA)
Technology LoRaWAN®,LoRaD2D
AntennaConnector 1×50ΩSMAConnector (CenterPIN:SMAFemale)
Frequency CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
TxPower 16dBm(868MHz)/22dBm(915MHz)/19dBm(470MHz)
Sensitivity -137dBm@300bps
AdvancedFeature LoRaD2DController,LoRaD2DAgent
CellularModel(OptionB)
Network 4GLTE/3G/2G
Antenna Connector 1 ×50 Ω SMA Connector(Center PIN: SMA Female)
SIMSlot 1 (Micro SIM-3FF)
ApplicationMode TCP/UDP/MQTT/AWS/MilesightIoTCloud/SMS
DataInterfaces
InterfaceType 3.5mmTerminalBlock
IO

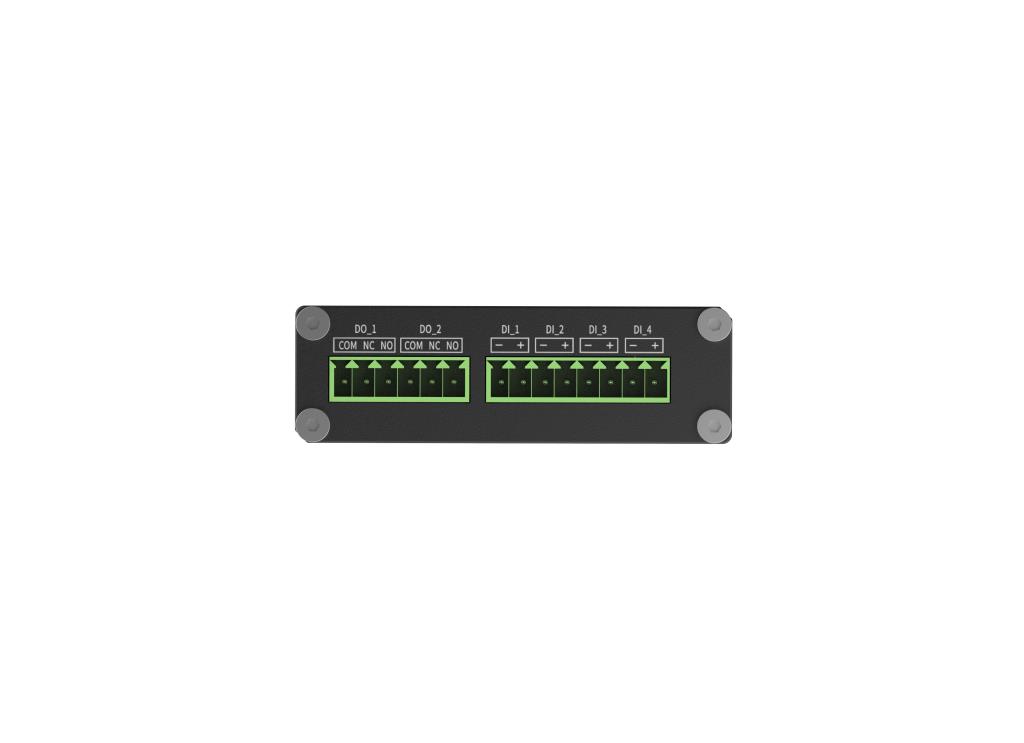

Ports 4×DI+2×DO
Digital Output SPDT Relay Contact Rating: 3A@DC Max: 30 V orACMax: 250 V
Serial Port
Ports 1×RS232+1×RS485
BaudRate 1200~115200bps
Protocol Transparent(RS232),Modbus RTU (RS485)
AnalogInput
Ports 2×4~20mA+2×0~10V
Resolution 12bit
AnalogInput(RTD)
Ports 2×PT100RTDInput
InputConnections 2,3-wire
Resolution 12bit
Range -200°C~800°C
Others
ConfigurationPort 1×Type-C
