LoRaWAN NB Door Sensor - 1
DRAGINO

LoRaWAN NB Door Sensor

Ürün Kodu : NDS01
Yorumlar
Paylaş:
Fiyat Alarmı
4.039,49 TL + KDV

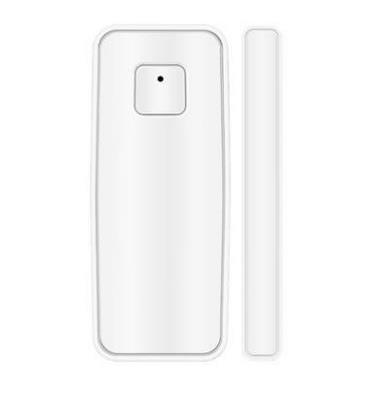

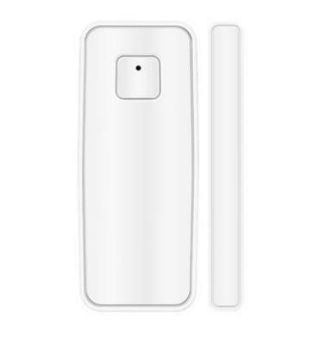

The Dragino NDS01 is a NB-IOT Door Sensor for Internet of Things solution. It is used to detect the open/close event for door and uplink the event to IoT server via NB-IoT network.

Besides open/close event, NDS01 also has an internal temperature and humidity sensor which can detect the temperature and humidity inside the sensor*.

NarrowBand-Internet of Things (NB-IoT) is a standards-based low power wide area (LPWA) technology developed to enable a wide range of new IoT devices and services. NB-IoT significantly improves the power consumption of user devices, system capacity and spectrum efficiency, especially in deep coverage.

NDS01 is powered by 2 x AAA batteries for long term use.



*The measured temperature is 2~3 degree higher than the actually environment temperature out of NDS01.

 Features:

  • NB-IoT Bands: B1/B3/B5/B8/B20/B28 @H-FDD
  • Ultra low power consumption
  • Door Open / Close Detect
  • Device remove alarm
  • Uplink Protocol: TCP or UDP
  • Uplink on periodically
  • Micro SIM card slot for NB-IoT SIM
  • 2 x AAA LR03 Batteries



Applications:

  • Smart Buildings & Home Automation
  • Logistics and Supply Chain Management
  • Smart Cities
  • Smart Factory

Specifications:

Common DC Characteristics:

    • Supply Voltage: 2.1v ~ 3.6v
    • Operating Temperature: -10 ~ 50°C

NB-IoT Spec:

    • - B1 @H-FDD: 2100MHz
    • - B3 @H-FDD: 1800MHz
    • - B8 @H-FDD: 900MHz
    • - B5 @H-FDD: 850MHz
    • - B20 @H-FDD: 800MHz
    • - B28 @H-FDD: 700MHz

Power Consumption:

    •  IDEL Mode: 10uA @ 3.3v
    • Max transmit power: < 500mA@3.3v

Package Includes:

    •  NDS01 NB-IoT Door Sensor

Part Number: NDS01

Ürün Filtreleri
Barkod:8690000025442
Tedarikçi Ürün Kodu:NDS01
