uFeatures
ØSupport local or remote control via high reliability relay
ØCollect current, voltage, power, electrical consumption and support overload protection
ØBuilt-in switch indicator, easy to use in dark environment
ØUltra-wide-distance wireless transmission up to line of sight of 15 km
ØEquipped with NFC for one touch configuration and support card emulation mode
ØFunction well with standard LoRaWAN® gateways and network servers
ØCompliant with Milesight IoT Cloud
ØSupport Milesight LoRa D2D protocol to enable ultra-low latency control without gateway
ØSupport multicast feature to control switches in bulk
u Specification
WirelessTransmission | |
Technology | LoRaWAN®,LoRaD2D |
Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
TxPower | 16dBm(868MHz)/22dBm(915MHz)/19dBm(470MHz) |
Sensitivity | -137dBm |
Mode | OTAA/ABPClassC |
Electrical | |

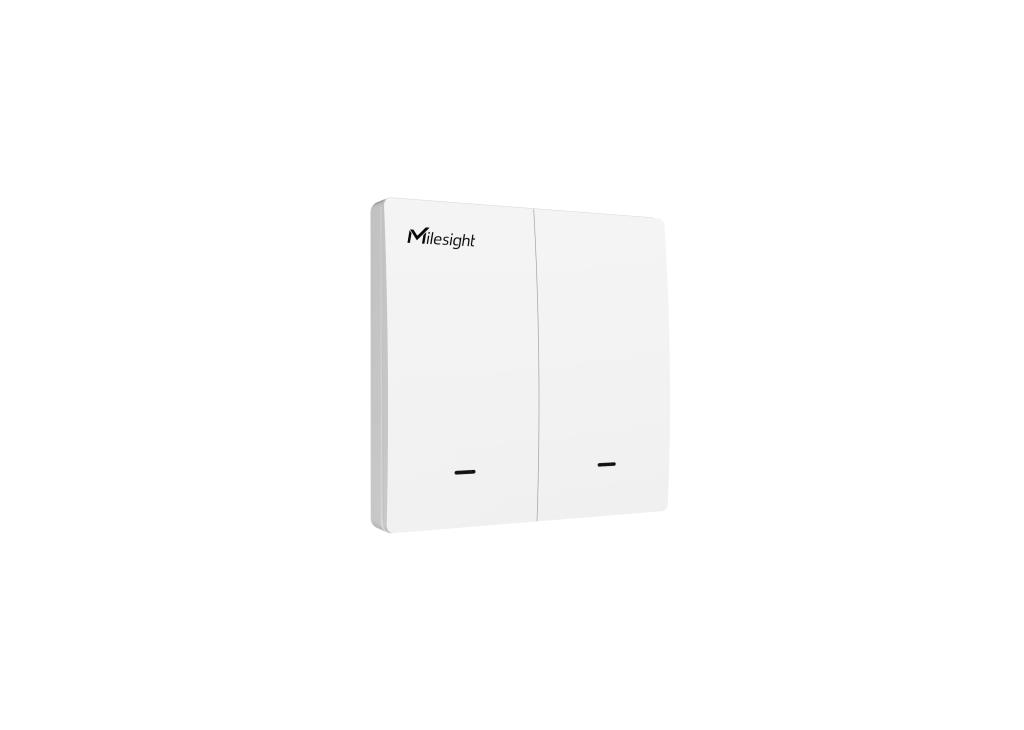

Switches | 1-Gang/2-Gang(Optional) |
SwitchIndicator | IceBlue |
Input Voltage | 100~250VAC,50~60Hz |
MaximumCurrent | Inductive:5Aper Gang,Total10A Resistive:10AperGang,Total10A |
RatedLoad | Max1000WperGang,Total2000W |
Terminal | SPST |
CircuitType | 3-Wire |
Measurement | Voltage(VAC),Current(mA),PowerFactor(%),Power(W),Power Consumption(kWh) |
Software | |
Configuration | NFC |
SwitchControl | LocalPressorRemoteControl |
AdvancedFeatures | ScheduleSwitch,SwitchLock,OvercurrentProtection,Multicast,LoRa D2DController,LoRaD2DAgent |
PhysicalCharacteristics | |
IngressProtection | IP20 |
Material | AntiflamingPolycarbonate |
Color | White(Customizable) |
Dimensions | 86Type:86×86×40mm (3.39×3.39×1.57in) 120Type: 118×72×46.9mm(4.65 ×2.83 ×1.85 in) |
OperatingTemperature | -20°Cto+60°C(-4℉to+140℉) |
RelativeHumidity | 0%to95%(non-condensing) |
