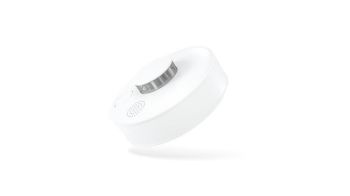

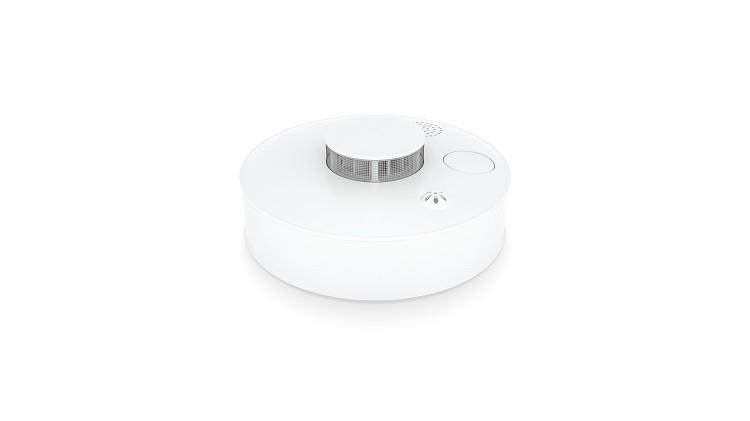

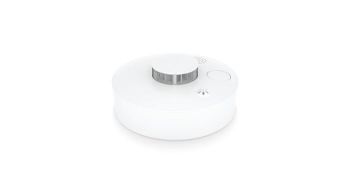

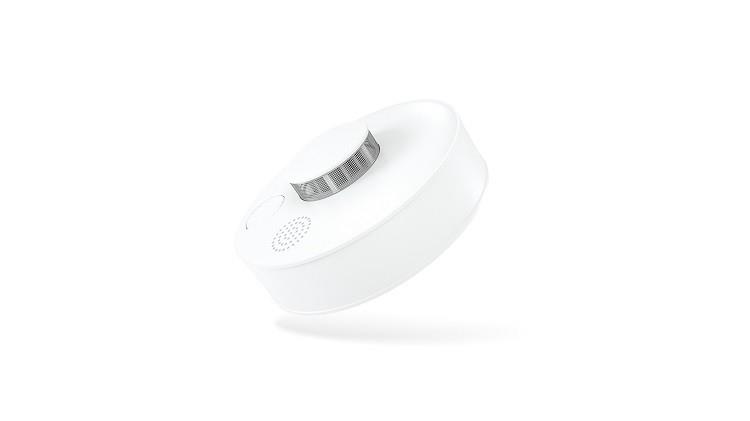

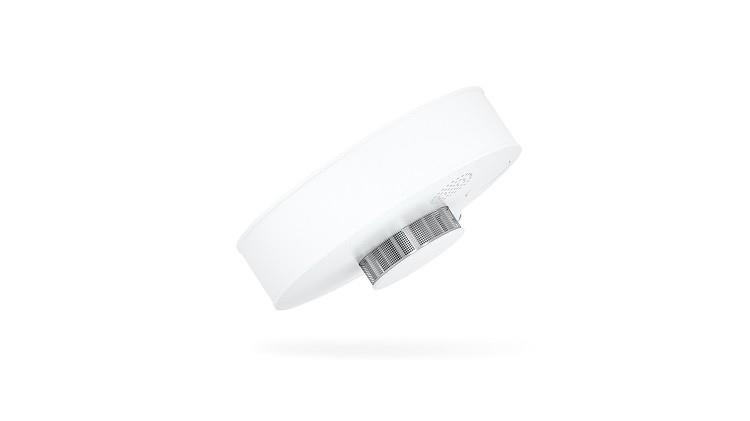

LoRaWAN smoke detector AN-102D

Ürün Kodu : AN-102D
Yorumlar
Paylaş:
Fiyat Alarmı
19.944,97 TL + KDV

AN-102D LoRaWAN Smoke Detector support standard LoRaWAN™ protocol. With high-precision, the device emit red light when it detects a fire alarm.

The device sends alarm data to the platform to remind relevant personnel on the site to deal solve it.
Self-test function and low battery voltage warning functions are available.

Application scenarios
Residential buildings, schools, nursing homes, hotels, restaurants, factories and etc

 Product Features:

◊ Support standard LoRaWANTM protocol

◊ High precision

◊ Red/Yellow Led indicator

◊ Self-test function

◊ Easy cable-free installation



Technical Parameter:

Description

Parameter

Communication

LoRaWANTM  protocol

Type of alarm

Led indicator on, Alarm sound, wireless remote alarm

Alarm Sound Output

>80dB (at 3m )

Smoke detecting

Red/ blue photoelectric smoke detection



Temperature detecting

detecting ambient Temperature

Frequency

CN 470MHz~510MHz


EU 863MHz~870MHz


US 902MHz~928MHz


AU 915MHz~928MHz


AS923; RU864-870; IN865-867

Data transmission rate

300bps~5.4Kbps

Max Tx power

19dBm

Rx sensitivity

-140dBm(SF=12)

Antenna

Built-in antenna

Working temperature

-40℃~+80℃

Working Humidity

<95% (non-condensing)

Battery volume

3.0V/3000mAh Lithium manganese battery

Battery type

Built-in Li-SOCL2 battery

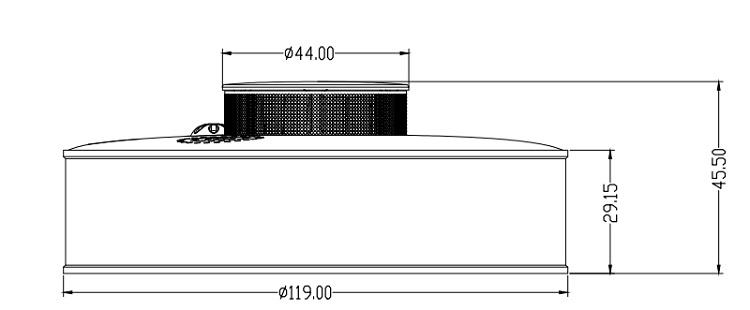

Dimension

Dia119mm x 45.5mm
