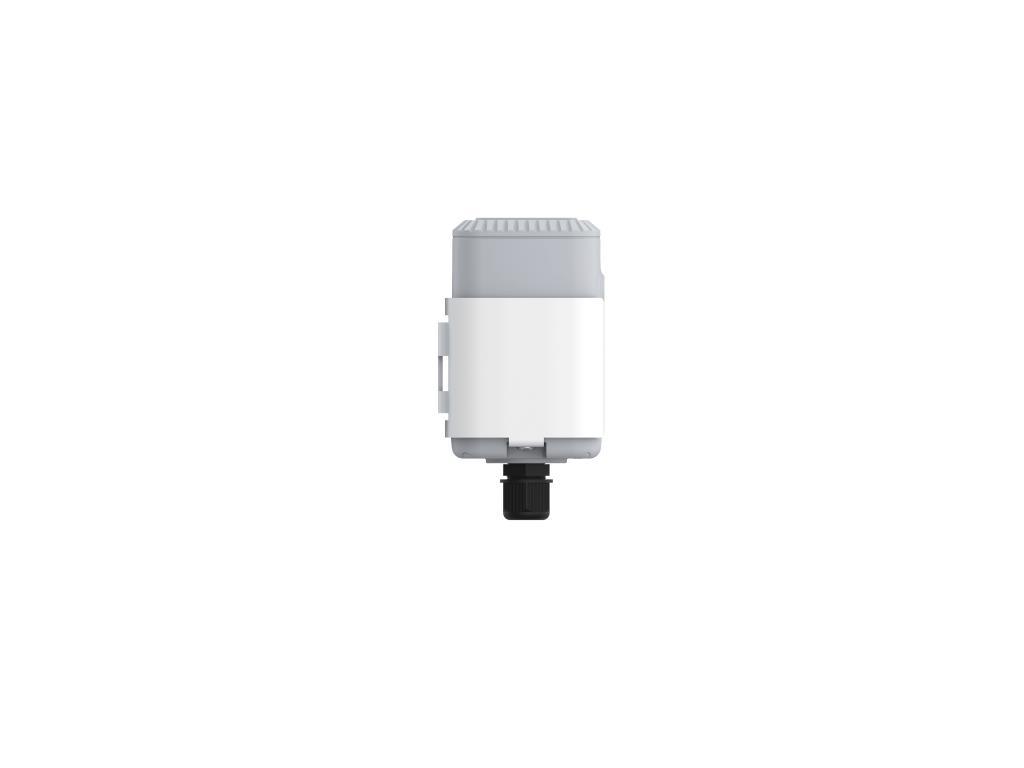

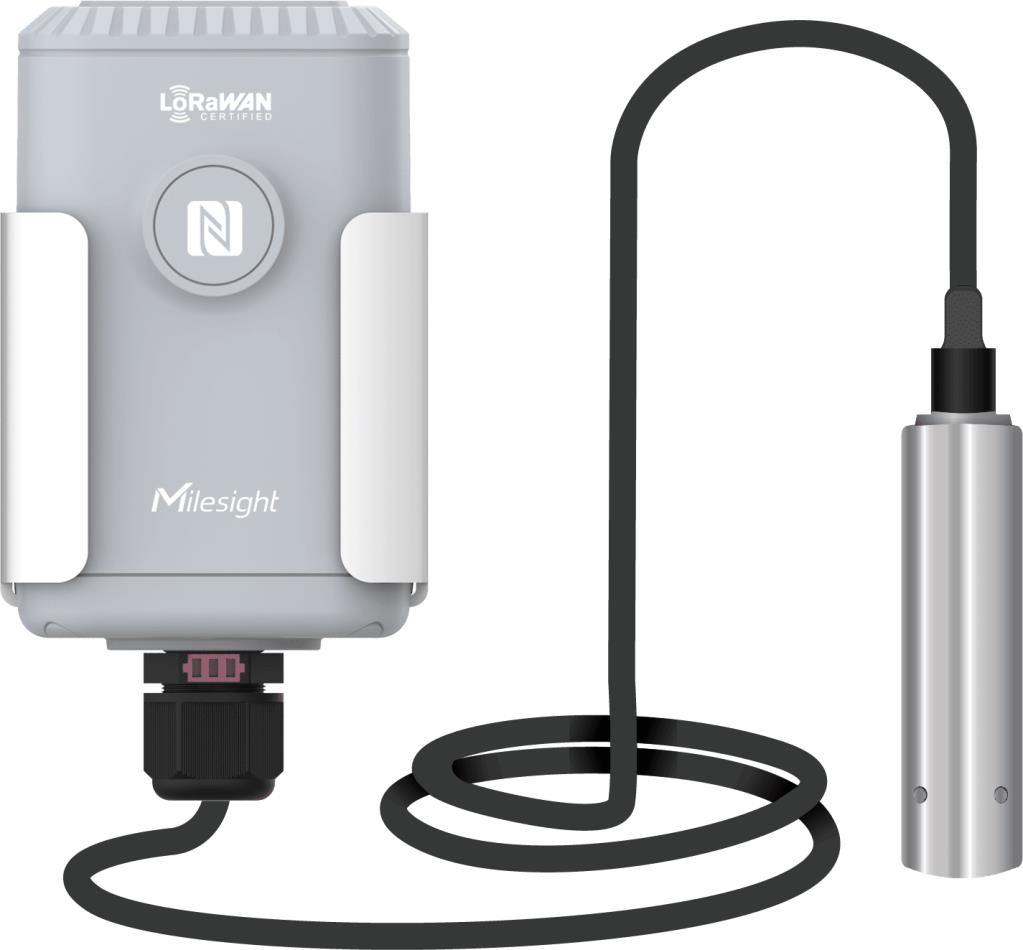

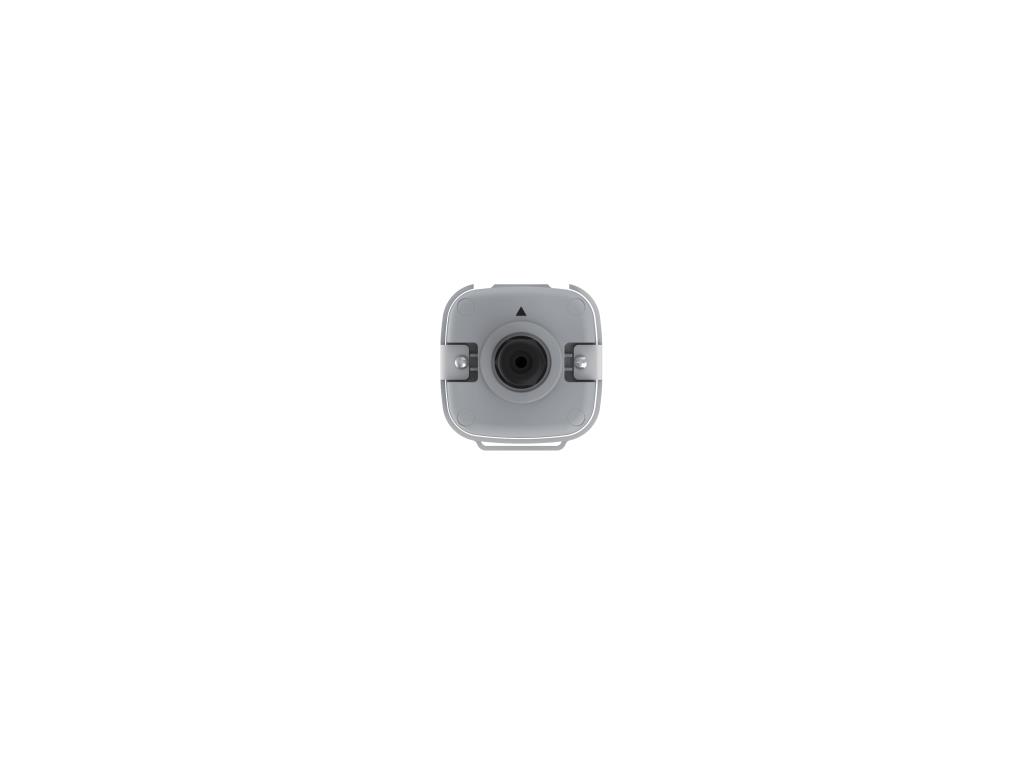

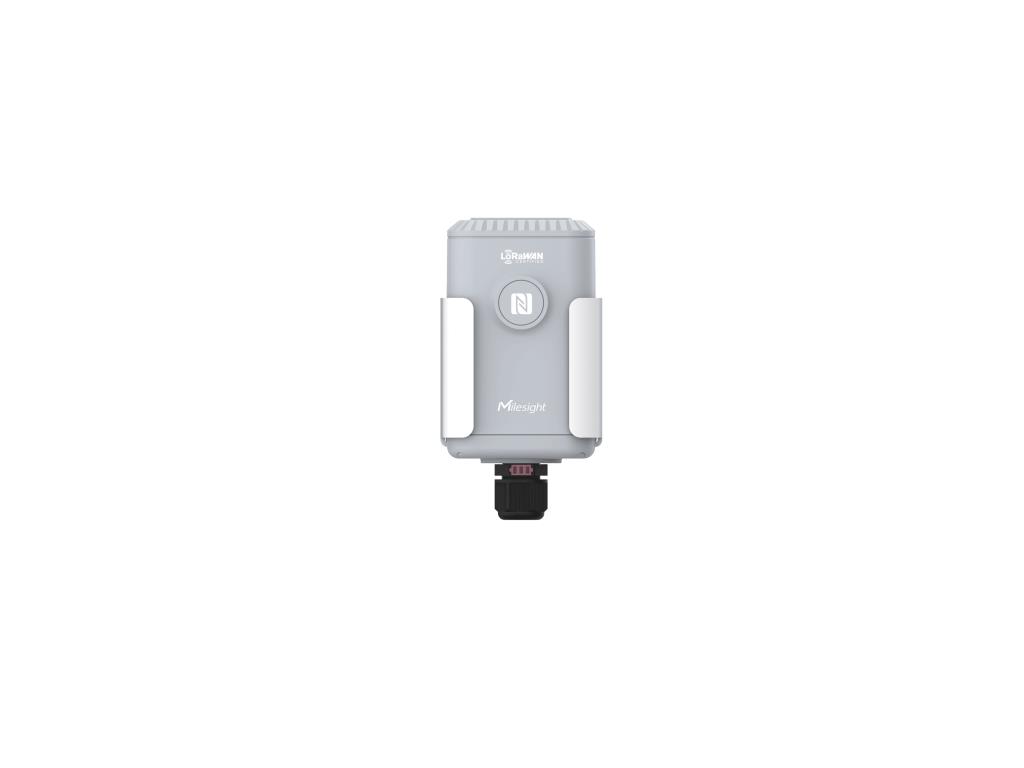

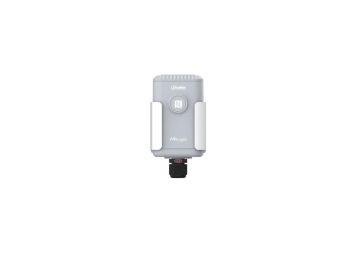

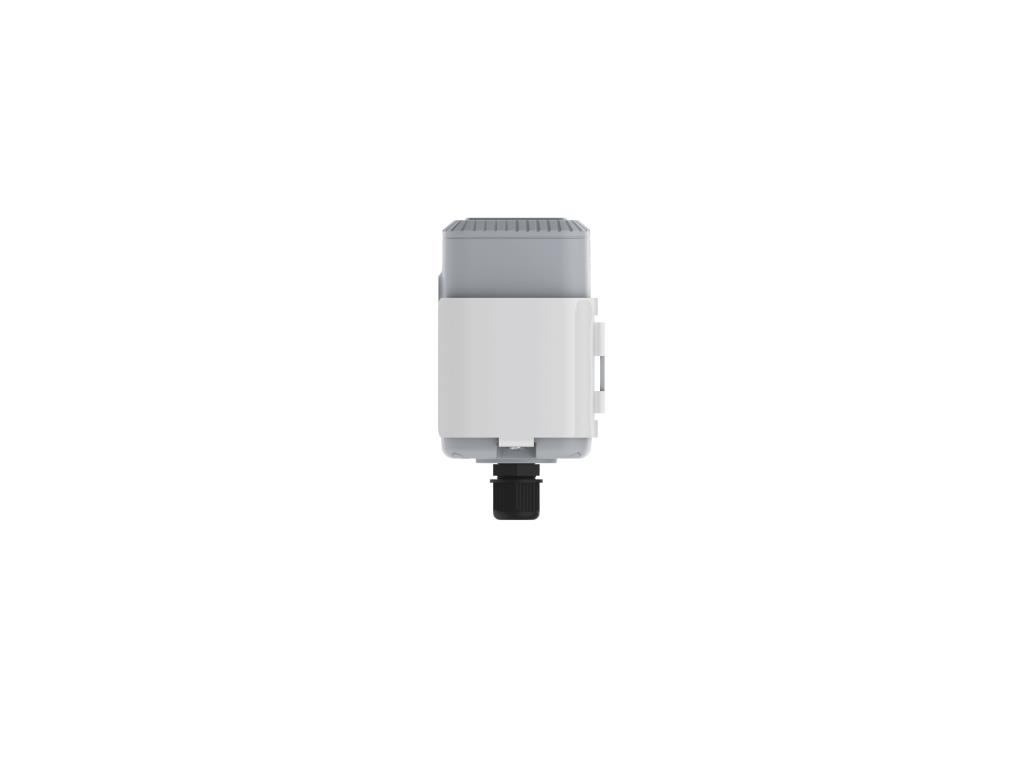

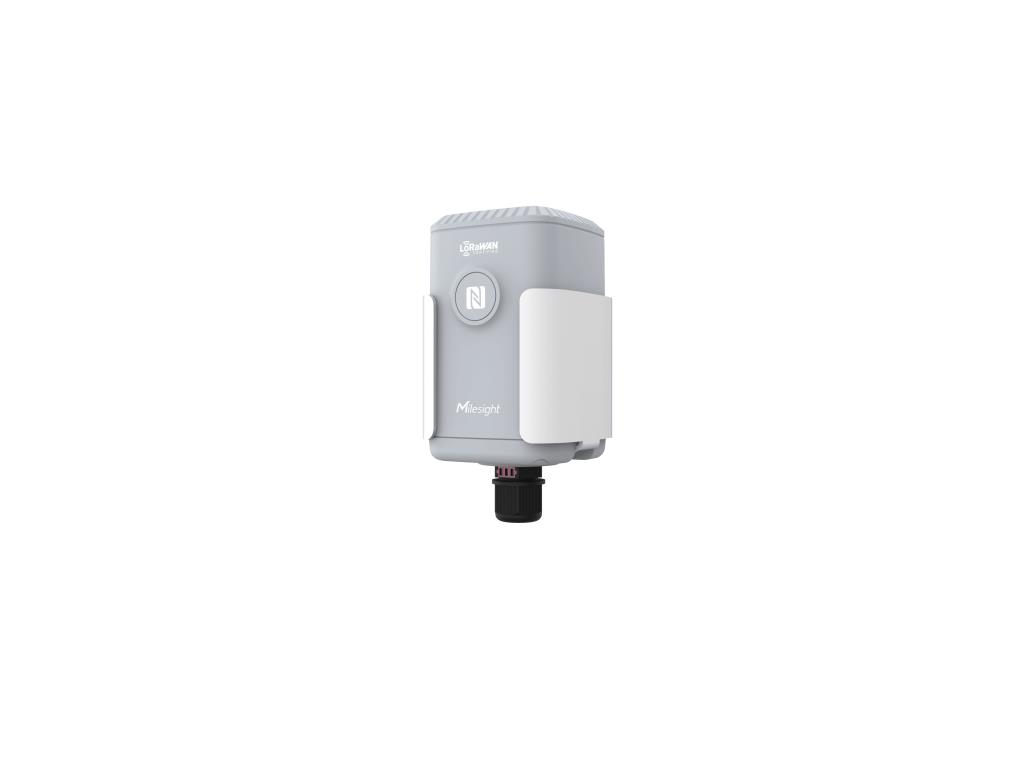

LoRaWAN Submersible 5M range Water Level Sensor with NFC

uFeatures
ØStainless probe with corrosion resistance
ØUltra-wide-distance transmission up to line of sight of 10km
ØIP67 waterproof enclosure for harsh environment applications
ØBuilt-in 19000 mAh replaceable battery and work for 10 years
without replacement
ØEquipped with NFC for easy configuration
ØCompliant with standard LoRaWAN® gateways and network
servers
ØQuick and easy management with Milesight IoT Cloud solution
uSpecifications
WirelessTransmission | |
Technology | LoRaWAN® |
Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
TxPower | 16dBm(868)/20dBm(915)/19dBm(470) |
Sensitivity | -137dBm@300bps |
Mode | OTAA/ABPClassA |
Measurement | |
PressureType | GaugePressure |
Range | 0~3m/5m/10m(H2O) (Customizableupto200mandforotherliquids) |
Accuracy | ±0.5%FS |
Resolution | 0.01m |
Long-termStability | ≤±0.3%FS/year |
Operation | |
PowerOn&Off | NFC,PowerButton(Internal) |
Configuration | MobileApp(viaNFC)orPCsoftware(viaUSBType-C) |
PhysicalCharacteristics | |
CableLength | Atleast1-1.5mlongerthanmeasuringrange |
PowerSupply | 19000mAhLi-SOCL2battery(ER34615) |
BatteryLife* | 10years(10mininterval) |
OperatingTemperature | -30°Cto+70°C(Transceiver)/-10°Cto+70°C(LevelSensor) |
RelativeHumidity | 0%to100%(non-condensing) |
IngressProtection | IP67(Transceiver)/IP68(LevelSensor) |
Dimension | Transceiver:105.4×71×69.5mm(4.1×2.8×2.7in) LevelSensor:140×ф28mm(5.5×ф1.1in) |

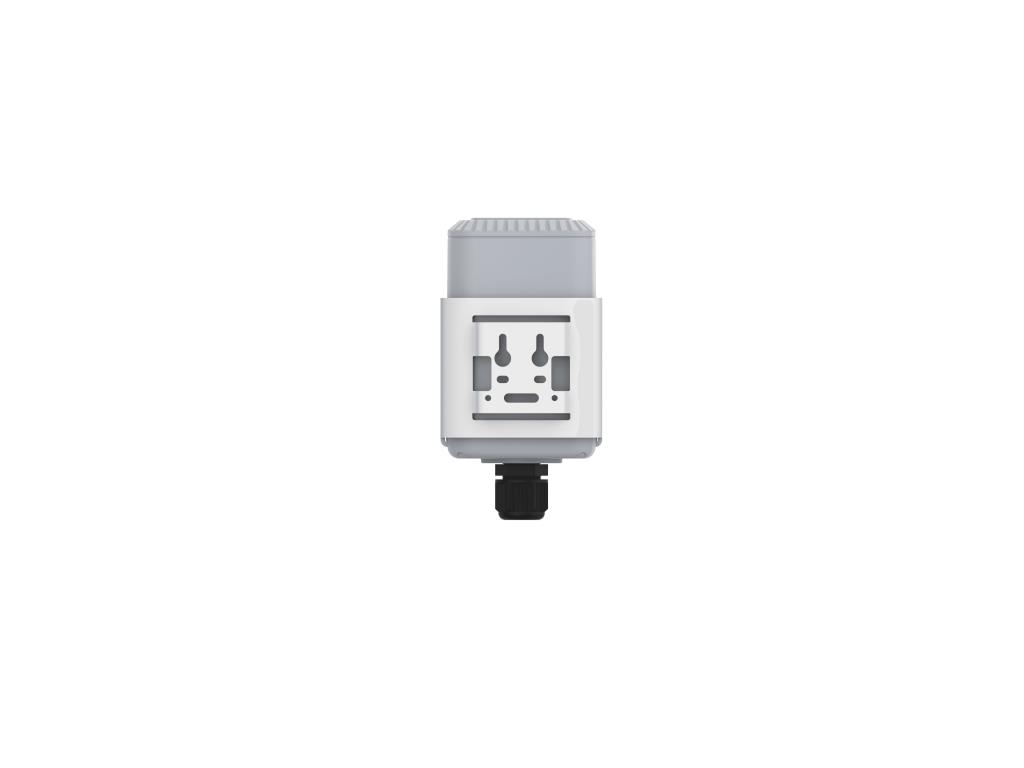

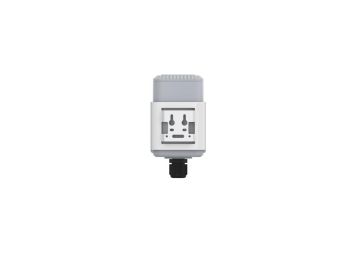

Installation | Pole,wallorDINRailMounting |
Approvals | |
Regulatory | CE,FCC,RoHS |
*Testedunderlaboratoryconditionsandforguidelinepurposesonly.
| Ürün Filtreleri | ||
|---|---|---|
| Barkod | : | 8690000024889 |
| Tedarikçi Ürün Kodu | : | EM500-SWL-868M/L005-4846W |
