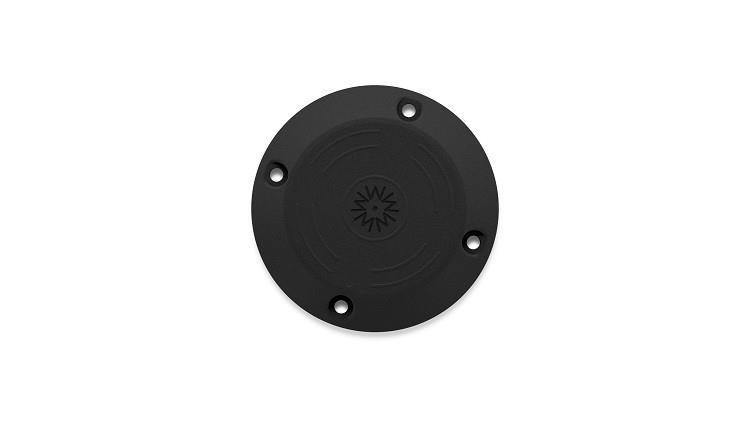

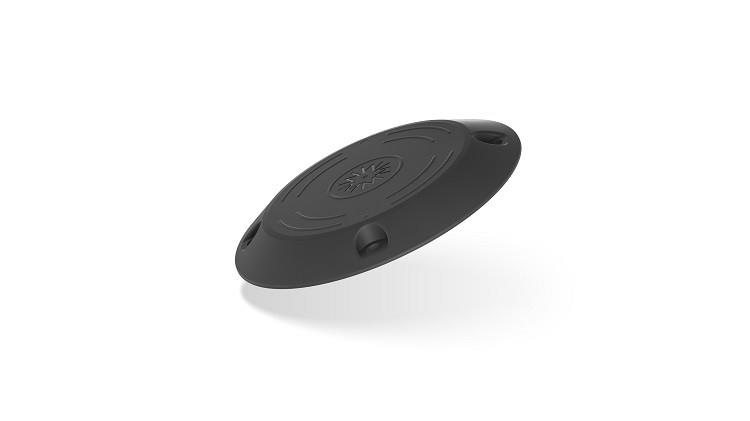

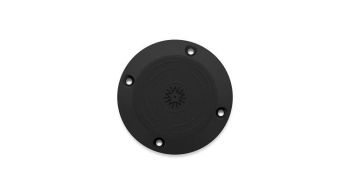

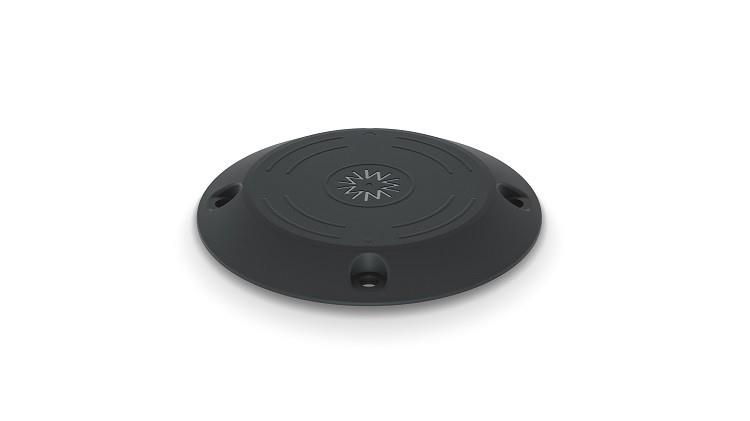

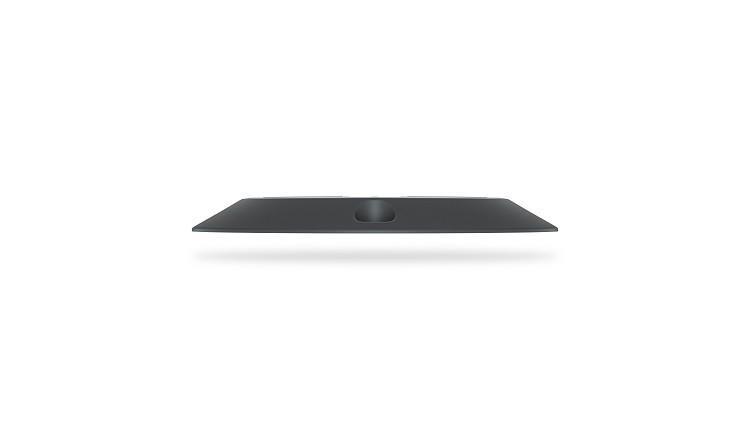

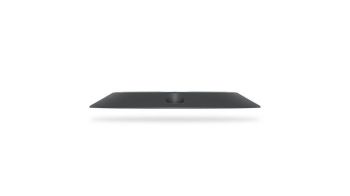

LoRaWAN surface-mounted parking sensor AN-101D

Ürün Kodu : AN-101D
Yorumlar
Paylaş:
Fiyat Alarmı
0,00 TL + KDV

LoRaWAN surface-mounted parking sensor AN-101D

AN-101D is a wireless geomagnetic equipment with radar detecting in high accuracy. Easy to install on the surface of the ground, it is widely used in urban road-side parking space and other application scenarios. It provides accurate detection of the occupied and idle status and transfers the information as digital signals to relevant smart parking systems and management platform.

LoRaWAN surface-mounted parking sensor AN-101D for smart on-street parking system:

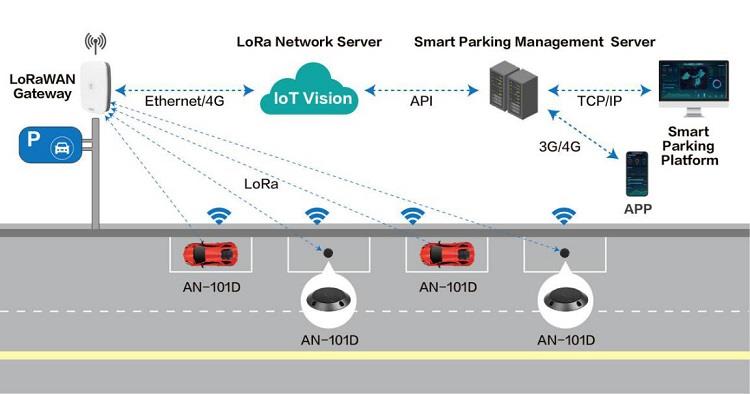

AN-101D is a surface-mounted type geomagnetic parking sensor with radar detecting based on standard LoRaWAN protocol to detect the status (occupied or empty) of a parking space. When it detects that there is a car parked in or leaving the parking space, the status information of the parking space will be sent to a LoRa gateway, and gateway will transmit the information to LoRa network server, then LoRa network server will decode the LoRa data and interface with the smart parking platform to achieve real-time management of parking lots. Easy to install in ground, it is widely used in urban road-side parking space and other application scenarios.



 Product feature



l Support LoRaWAN CLASS A;

l Frequency (optional): CN470/AS923/EU868/US915/AU915/

RU864-870/IN865-867

l Support the magnetic induction of XYZ in three directions;

l Radar detection for parking space occupation status

l Support BLE wireless transparent communication

l Built-in Li-SOCl2 battery

l IP67 protection

l Temperature range: -40℃~+80℃

l Strong resistance to interference and easy installation

l High accuracy: >98%

l Low power consumption

Hardware:

Item

Description

1.Sensor

Three-axis magnetic sensor

2.Radar

Millimeter-wave radar detecting

3.Power

3.6V/19Ah Li-SOCL2 battery

4.Frequency

(optional)

CN470MHz /EU868MHz

US 915MHz /AS923MHz

AU915MHz/RU864-870

/IN865-867

5.Power supply

3.6V/16000mAh,  built-in Li-SOCL2 battery

6.Idle current

≤15uA

7.Working current

≤125mA

8.Rx current

≤15mA

9.Antenna

Built-in LoRa antenna and radar antenna

10.Temperature range

-40℃~+80℃

11.Installation

Surface-mounted

12.Life cycle

4 years(based on occupied status change 20 times per day)

13.Load bearing

10T

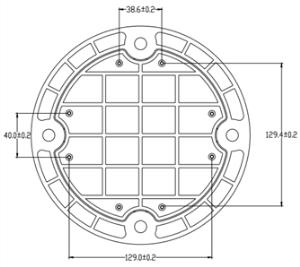

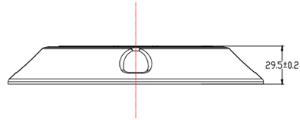

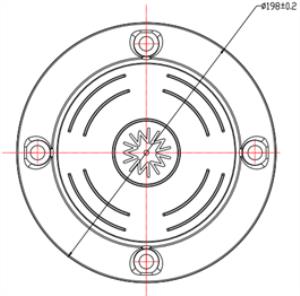

14.Dimension

Φ195mm*29.5mm

Software:

Item

Description

Accuracy

> 98%

Wireless configuration

Support BLE wireless configuration

Calibration

Support dynamic automatic calibration

Temperature compensation

Support

Protocol

LoRaWAN Class A

Data transfer

Support data re-sending within 3 times

Heartbeat interval

6h by default, it can be set by users.

Configuration tool

Support web-based graphical  configuration, and wireless serial port configuration
