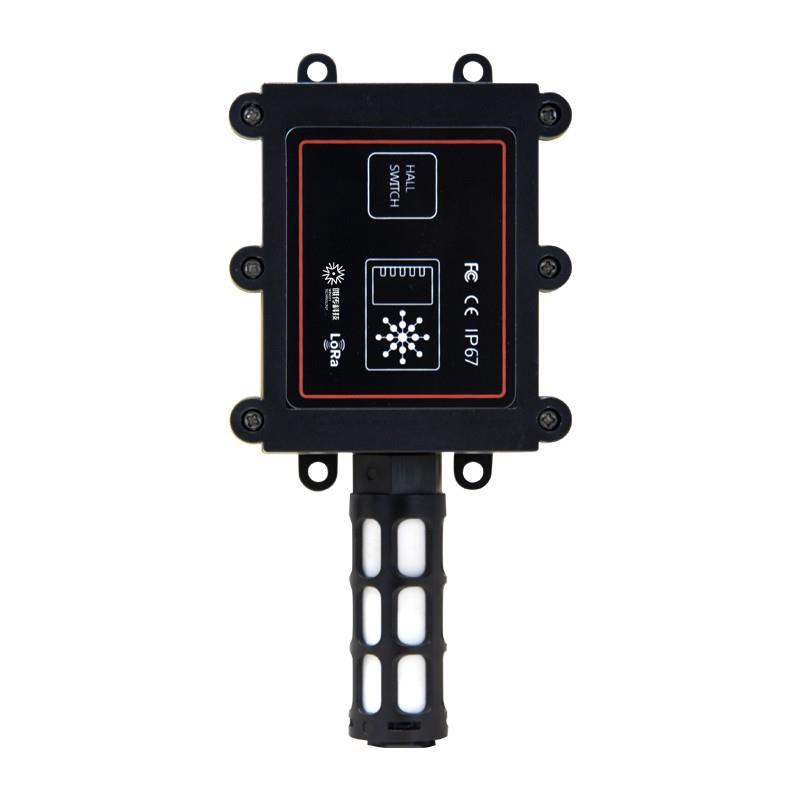

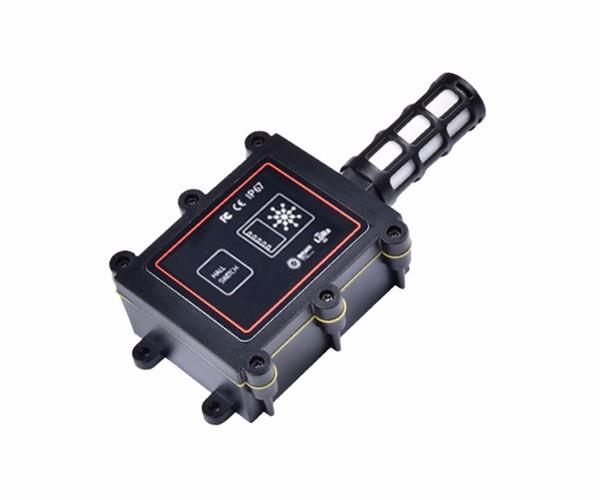

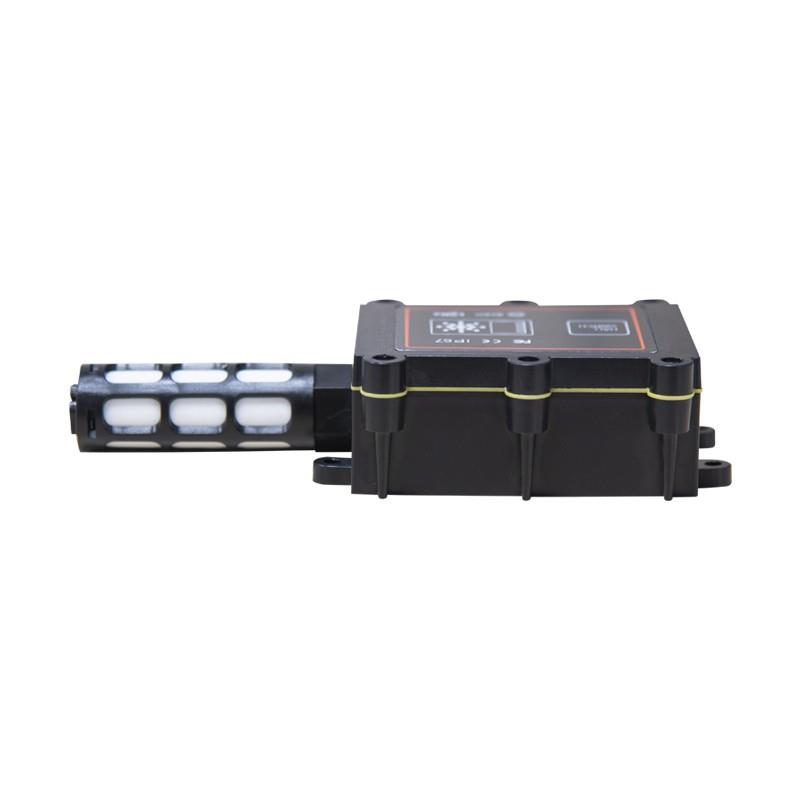

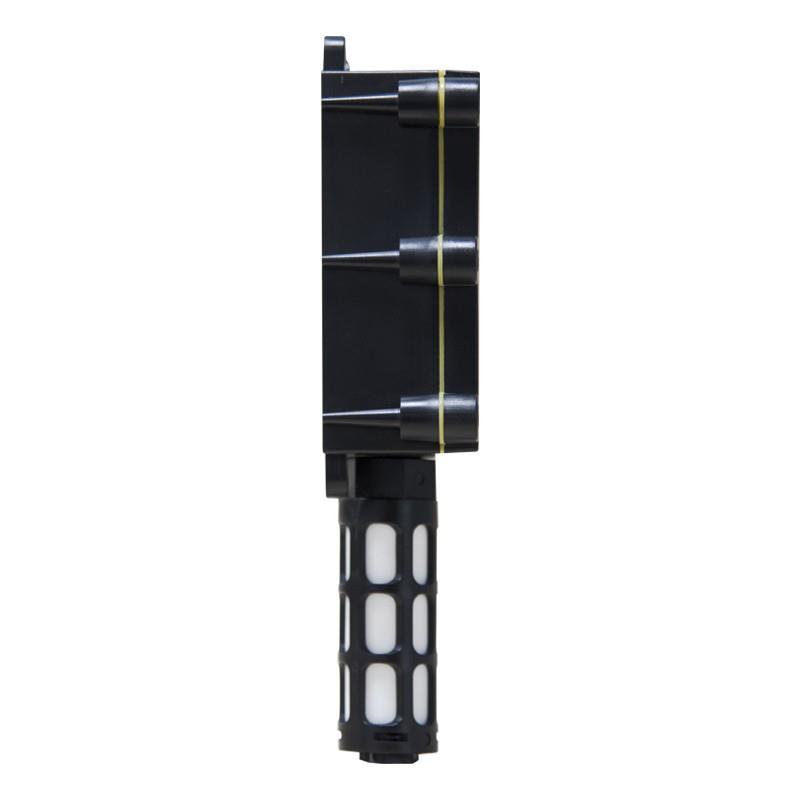

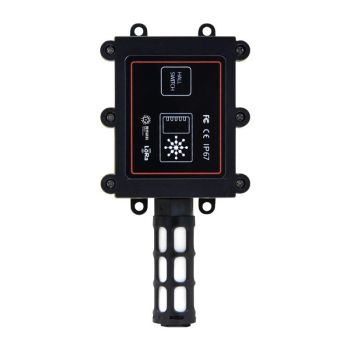

LoRaWAN temperature and humidity sensor AN-103A

Ürün Kodu : AN-103A
Yorumlar
Paylaş:
Fiyat Alarmı
24.489,40 TL + KDV

LoRaWAN temperature and humidity sensor AN-103A

AN-103A LoRaWAN Temperature and Humidity Sensor is a wireless temperature and humidity acquisition. It is designed for temperature and humidity monitoring and alarm. It comply with LoRaWAN standard communication protocol and integrates data acquisition and monitoring. With built-in temperature and humidity sensor chip, it has high detection accuracy, stable performance with low power consumption. It has long transmission distance and reliable signal output.

Industrial-grade temperature humidity sensor AN-103A for smart building, smart warehouse, smart community:

AN-103A LoRaWAN Temperature and Humidity Sensor is a wireless temperature and humidity acquisition. It is designed for temperature and humidity monitoring and alarm. It comply with LoRaWAN standard communication protocol and integrates data acquisition and monitoring. With built-in temperature and humidity sensor chip, it has high detection accuracy, stable performance with low power consumption. It has long transmission distance and reliable signal output.


  Application scenarios

It is widely used in communication machine room, workshop production line, pharmaceutical warehouse, large logistics warehouse, greenhouse, flower greenhouse, archives, museum, HVAC control and others.


  Product features:

◊ Support standard LoRaWANTM

◊ High accuracy

◊ Waterproof IP67

◊ Working Temperature: -30℃~80℃


Technical Parameter:




Description

Parameter

Communication

LoRaWANTM  protocol

Frequency

CN 470MHz~510MHz

EU 863MHz~870MHz

US 902MHz~928MHz

AU 915MHz~928MHz

AS 923MHz~925MHz

Max Rx Power

17dBm

Rx sensitivity

-140dBm

Output voltage

-30℃~+80℃

Power consumption

36mW

Battery volume

3.6V/ 8000mAh

Power

Built-in lithium battery

Sleep mode current

15uA

Transmission current

110mA

Dimension

168mm x 81mm x 36mm

IP grade

IP67
