LoRaWAN Ultrasonic Distance Smart sensor - 1
POLYSENSE

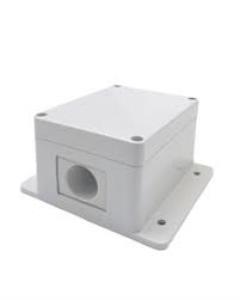

LoRaWAN Ultrasonic Distance Smart sensor

Ürün Kodu : WxS 880-010
Yorumlar
Paylaş:
Fiyat Alarmı
12.370,93 TL + KDV

Product Highlights

ü  It is a high performance ranging controller. Using the principle of ultrasonic echo ranging, using precise time difference measurement technology, the distance between the sensor and the target object is detected non-contact.

ü  The detection blind zone is small, the precision is high, and the detection distance is long

ü  High precision temperature compensation

ü  With a physical bell mouth shell for better directivity and stability

ü  Cross-threshold report, plus periodic report every 2 hours (the threshold and the periodic report cycle are both user-configurable)

ü  OTA (Over The Air) firmware upgrade, including to upgrade loader and application images

ü  Analog and digital interface for external sensor connectivity and pulse counting (MPI)

ü  Low power consumption, 5 – 10 years of battery operational life with 2 x AA Li-SOCI2 Battery

ü  Optional DC 5V power source

ü  Integrated internal antenna, or optional external SMA/IPEX antenna

ü  Up to 5km reach in NLoS (Non-Line-of-Sight) and up to 18km LoS (Line-of-Sight) environments

ü  IP67 enclosure rating


Specifications



Wireless

ISM Band

EU 863 – 870MHz;US 902 – 928MHz

China 779 – 787MHz;EU 433MHz

AS 923MHz;CN 470 – 510MHz

Maximum Link Budget

168dB

Distance

Up to 5km NLOS; up to 18km LOS

Antenna

Integrated internal antenna or external 1/2 wavelength whip antenna (SMA)

Mechanical

Dimension

60mm x 100mm x 30mm (WxS8800)

IP rating

IP67 (WxS8800)

Operating Temperature

-40C to +85C (WxS8800);

Cable length

0.5 meters

Total Weight

120 g

Electrical

Supply Voltage

3.0 – 3.8 VDC

Power Type

Replaceable 1 or 2 AA 3.6V Li-SOCI2 Battery; DC 4.5V – 12V optional

Battery Life

5 – 10 years (assume one motion event one day)

Compliance/Certification


LoRaWAN 1.0.2

FCC(America): 2AO7W-WXS8000,

IC(Canada): 23701-WXS8000

CE(European Union):B1810246

ROHS(European Union): R2BJ180927F0664E



Ürün Filtreleri
Barkod:8690000017904
Tedarikçi Ürün Kodu:WxS 880-010
