LoRaWAN Ultrasonic Distance/Level Sensor
0,00
TL
+
KDV
Stok Durumu:
Yok

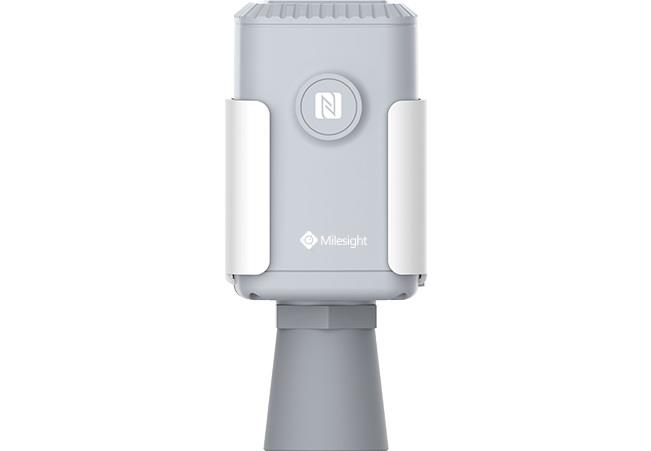

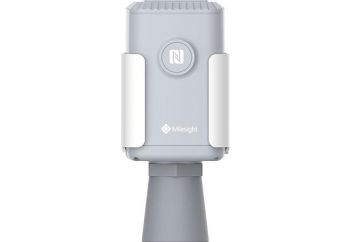

Ultrasonic Distance/Level Sensor
EM500-UDL
EM500-UDL provides highly accurate distance measurement for a variety of applications in harsh environments like flood monitoring, waste water management, fill level monitoring in grains or fertilizer. The measurement is based on ultrasonic waves transmitted and reflected back from nearby objects.
Specifications
| LoRaWAN® | Frequency | CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923 |
| Tx Power | 20dBm | |
| Sensitivity | -147dBm @300bps | |
| Mode | OTAA/ABP Class A | |
| Measurement | Range | EM500-UDL-W050: 0.3-5m EM500-UDL-W100: 0.5-10m (Customizable for snow level detection usage) |
| Resolution | 1 mm | |
| Accuracy | ±1% | |
| Physical Characteristics | Power Supply | 19000 mAh Li-SOCL2 |
| Operating Temperature | -30°C to +65°C | |
| Ingress Protection | IP66 (IP67 as required) | |
| Dimension | 156.1 × 71 × 69.5 mm | |

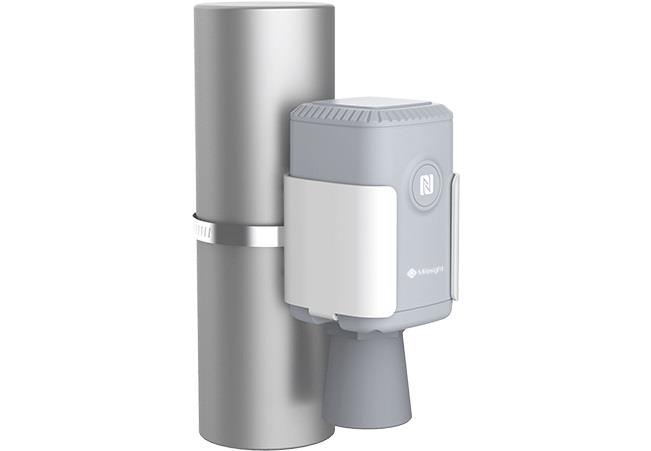

| Mounting | DIN rail, wall, pole mounting | |
| Ürün Filtreleri | ||
|---|---|---|
| Barkod | : | 8690000018109 |
| Tedarikçi Ürün Kodu | : | EM500-UDL |
Uyumlu Aksesuarlar
